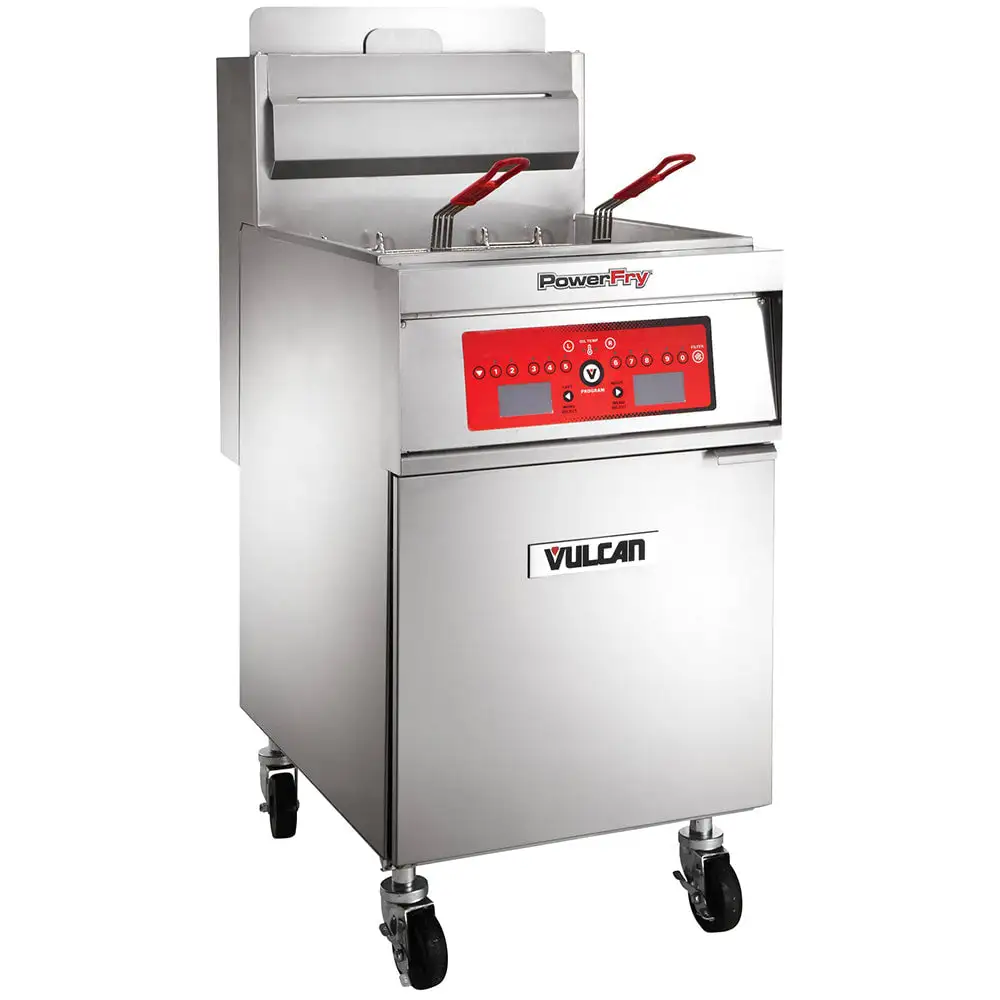

Vulcan 1TR65CF Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas

Powered by natural gas, the Vulcan 1TR65CF commercial fryer can output 80,000 BTUs per hour. Designed to enhance energy efficiency, this unit features a SoftStart® ignition system that outputs 40,000 BTUs per hour when initially heating cooking oil, and its high-efficiency ThreePass® heat transfer system evenly distributes heat throughout the cooking oil to reduce recovery times and yield 60 percent cooking efficiency and 72 percent thermal efficiency. Once oil has reached the set temperature, the fryer outputs 5,083 BTUs per hour to maintain temperature. To simplify operation, it features 10 programmable menu timers, and users can set temperatures from 200 to 390 degrees Fahrenheit. A digital display provides an accurate readout of temperatures so users can ensure products are cooked at the right temperature. To extend oil life, this unit is built with a KleenScreen PLUS® filtration system, which filters oil with the push of a button.
The Vulcan 1TR65CF PowerFry3® freestanding gas fryer's 19 1/2-inch-wide by 14-inch-deep frypot accommodates as much as 70 pounds of oila€”great for cooking fries, chicken, fish sticks, or mozzarella sticks in medium- to high-volume establishments. Included fryer baskets ease inserting and removing product, and their plastic-coated handles reduce the risk of heat transfer. Both the fry tank and cabinet are made of rust- and corrosion-resistant stainless steel to withstand repeated back-of-house use and simplify cleaning. Overall, this unit measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches tall and features a 36 1/4-inch working height. So the unit can be repositioned with ease, it's mounted on 6-inch castersa€”two of which can be locked to ensure stability during use.

Product Details





Part of the PowerFry3 line
Vat can hold 70 lbs. of oil
Freestanding unit
Comfortable 36 1/4-in. working height
Cabinet and fry tank made of durable stainless steel
Unit mounted on (4) 6-in. adjustable casters (2 locking)
Electronic matchless ignition
SoftStart ignition system outputs 40,000 BTUs to extend oil life and save energy
ThreePass heat transfer system uniformly distributes heat throughout oil
Maintains idle temperature outputting 5,083 BTUs per hour
Flue temperature remains below 750 degrees F at maximum production rate
Hi-limit shutoff
Simple-to-use integrated KleenScreen PLUS filtration system
Twin fryer baskets with plastic-coated handles
Includes tank brush and clean-out rod
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Computer Controller





Programmable computer controls with digital character display
10 menu timers
USB interface enables offline programming
Operating temperature control: 200-390 degrees F
Digital temperature display in Celsius or Fahrenheit
3 melt modes

Dimensions & Utilities





Tank: 19 1/2 in. W x 14 in. D
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Powered by natural gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
380.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 380.00
