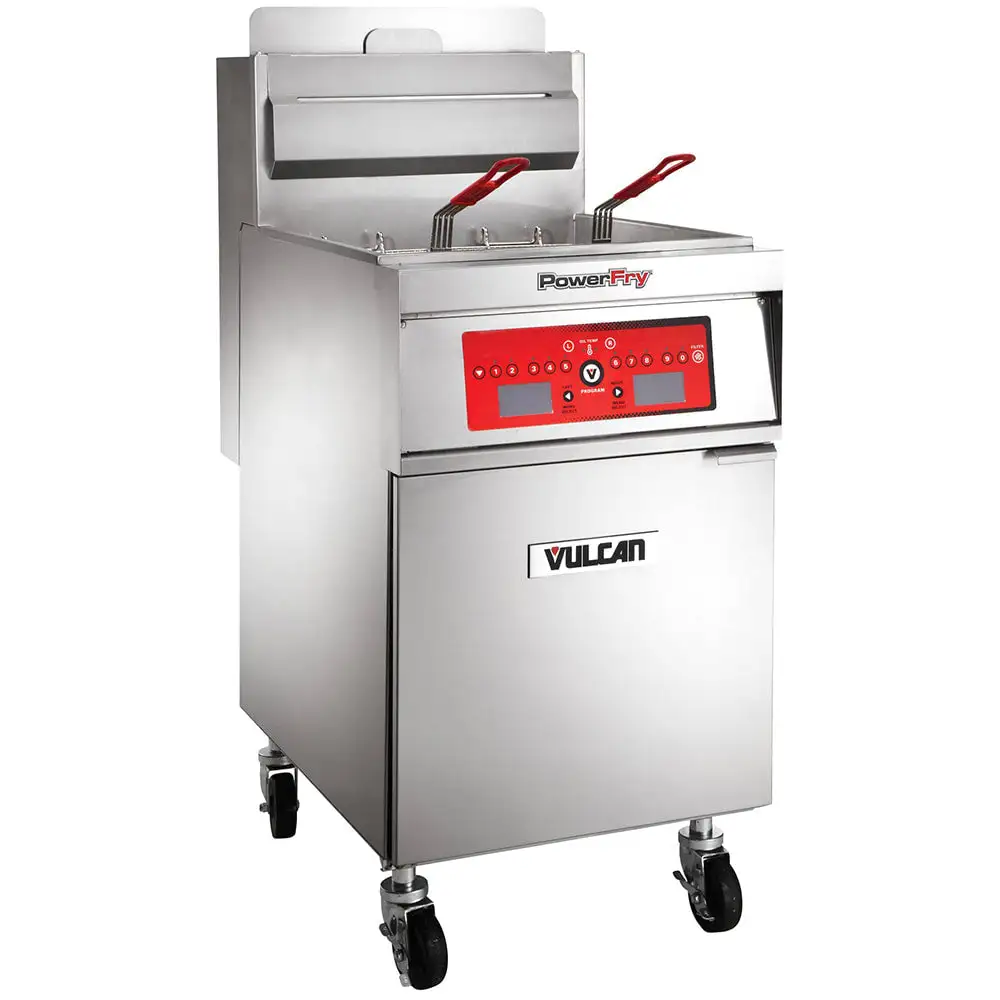

Vulcan 1TR65C Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas

Ideal for frying fish sticks, french fries, mozzarella sticks, and chicken for medium- and high-traffic establishments, the Vulcan 1TR65C PowerFry3® commercial gas fryer's 19 1/2-inch-wide by 14-inch-deep frypot can accommodates 70 pounds of cooking oil. Its twin fryer baskets keep product in place as they're lowered into the frypot and lifted from the oil. Each basket's handle is coated in plastic to minimize heat transfer and enhance user safety. So staff can work at a comfortable 36 1/4-inch cooking height, this unit measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches tall. Because it's fitted with smooth-rolling casters, it can be wheeled out of the way for cleaning or maintenance; two of the casters can be locked to secure the unit in place during use. The cabinet and frypot are made of stainless steel for long-term corrosion resistance and durability.
Operators can set the Vulcan 1TR65C floor-model natural gas fryer's temperature from 200 to 390 degrees Fahrenheit using the digital temperature controls. Users can program 10 menu timers, eliminating the need to repeatedly set specific timers for commonly ordered foods. Employees can even program menu items offline through a USB interface. To prolong oil life and save energy, this unit features a SoftStart® ignition system that outputs half of the unit's maximum BTUs per hour when initially heating cooking oil. Its ThreePass® heat transfer system effectively distributes heat throughout the oil to yield 72 percent thermal efficiency and 60 percent cooking efficiency. When the unit is operating at its maximum production rate, its flue doesn't exceed temperatures hotter than 750 degrees Fahrenheit. For simple cleanup, this unit features a 1 1/4-inch port ball-type drain valve, a tank brush, and a clean-out rod.

Product Details





Part of the PowerFry3 series
Vat capacity: 70 lbs.
Electronic ignition
SoftStart ignition system outputs 40,000 BTUs per hour when initially heating oil
High-efficiency ThreePass heat transfer system uniformly distributes heat
Outputs 5,083 BTUs per hour to maintain warm temperatures
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
Freestanding model
36 1/4-in. working height
Durable, corrosion-resistant stainless steel cabinet and frypot
Positioned on (4) 6-in. adjustable casters (2 with locks)
Twin fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Tank brush and clean-out rod included
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Programmable Controls





Operating temperature control: 200-390 degrees F
Digital temperature display
Programmable computer controls with digital display
10 menu options
USB interface facilities offline programming (software included)
3 melt modes

Dimensions & Utilities





Tank: 19 1/2 in. W x 14 in. D
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Powered by natural gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
237.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 237.00
