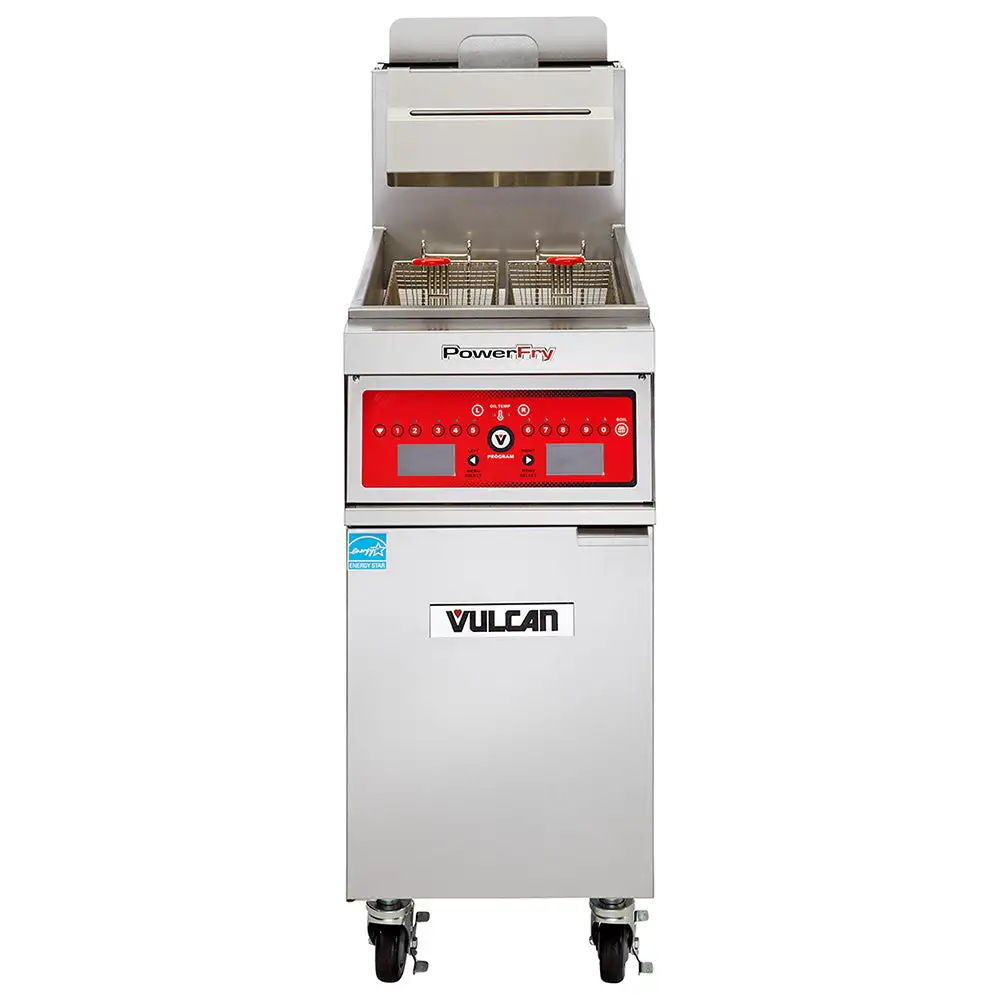

Vulcan 1TR65D Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

The Vulcan 1TR65D freestanding commercial gas fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches tall and features a 19 1/2-inch-wide by 14-inch-deep frypot that accommodates the two included fryer baskets. Operators can fry okra, pickles, chicken, or mozzarella sticks in the frypot once they're placed in the fryer baskets. To enhance user safety, both baskets' handles are coated with plastic to minimize heat transfer risk. Its stainless steel frypot and cabinet resist rust, corrosion, dents, and scratches to survive high-volume back-of-house use. Because it's positioned on four 6-inch casters, it can be moved out of the way as needed, and two of the casters can be locked for stability during cooking.
To melt solid shortening, the Vulcan 1TR65D LP-gas-powered fryer features three melt modes, which slowly warms the unit upon startup. This unit also features a SoftStart® ignition system that quickly heats oil while only outputting 40,000 BTUs. As part of the PowerFry3® series, this unit is built with a high-efficiency ThreePass® heat transfer system, which evenly distributes heat throughout the oil to minimize cold spots, reduce recovery time, and provide 60 percent cooking efficiency and 72 percent thermal efficiency. Staff can set temperatures from 200 to 390 degrees Fahrenheit with the solid-state controls, and a digital display provides an accurate temperature readout. To monitor frying, the control system includes two countdown timers. When this unit needs to be cleaned, oil can be drained from the 1 1/4-inch port ball-type drain valve, and the tank can be cleaned with the included tank brush and clean-out rod.

Product Details





Featured in the PowerFry3 line
70-lb. oil capacity
Freestanding model with 1 frypot
36 1/4-in. working height
Stainless steel cabinet and frypot
Positioned on (4) 6-in. adjustable casters (2 can be locked)
Electronic matchless ignition
SoftStart ignition system outputs 40,000 BTUs per hour upon startup
ThreePass heat transfer system efficiently harnesses energy for even heating
Maintains idle temperature by outputting 5,083 BTUs per hour
Flue temperature doesn't exceed 750 degrees F at maximum production rates
Hi-limit shutoff mechanism
Includes 2 fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Includes tank brush and clean-out rod
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Solid-state Temperature Controls





Operating temperature control: 200-390 degrees F
Temperature display
Users can cook with compensating time or actual time
3 melt modes
2 countdown timers
Auto boil-out mode

Dimensions & Utilities





Tank: 19 1/2 in. W x 14 in. D
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Powered by LP gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
237.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 237.00
