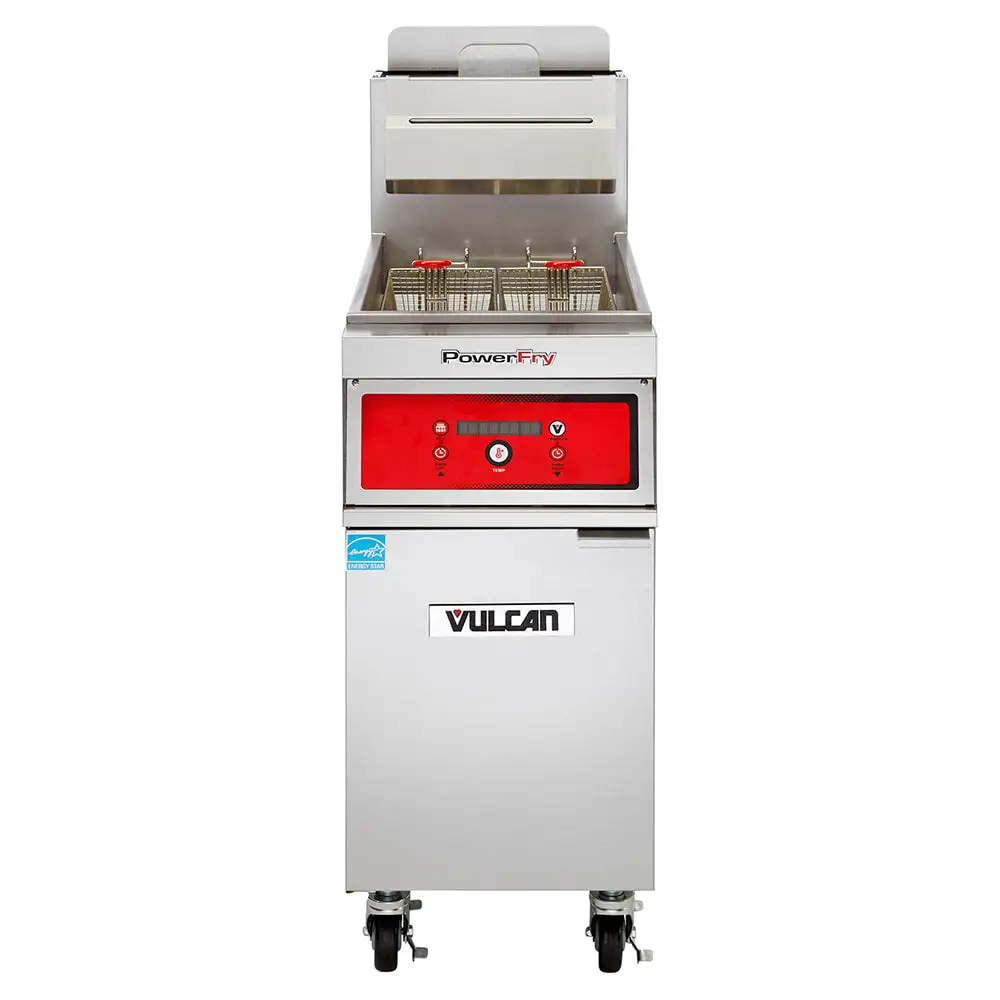

Vulcan 1TR65DF Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

As part of the PowerFry3® series, the Vulcan 1TR65DF LP gas fryer can reduce energy usage while enhancing efficiency. At startup, the SoftStart® ignition system quickly heats oil while only outputting 40,000 BTUsa€”half of BTUs it can output in an hour. Its ThreePass® heat transfer system harnesses energy to uniformly distribute heat throughout the oil for consistent results and to reduce lag times during recovery. When the fryer is maintaining idle temperatures, it only outputs 5,083 BTUs per hour. Operators can adjust unit temperature from 200 to 390 degrees Fahrenheit with an accurate temperature control. So users can monitor its temperature at a glance, it's built with a digital display. To simplify operation, it features three melt modes, an auto boil-out mode, and two countdown timers. Because this unit is equipped with KleenScreen PLUS® filtration, users can simply press a button to initiate filtration and extend oil's service life.
The Vulcan 1TR65DF commercial fryer is a freestanding unit measuring 21 inches wide by 30 1/8 inches deep by 47 1/8 inches tall. Its 36 1/4-inch working height enhances user comfort, while its casters provide smooth mobility. Two of the casters can be locked to ensure the fryer remains stable during use. Its 19 1/2-inch-wide by 14-inch-deep frypot accommodates 70 pounds of oil and comes with twin fryer baskets to secure chicken strips, mozzarella sticks, and fish sticks during place when lowering the baskets into the oil and lifting it. For added safety, the baskets' handles are plastic coated to eliminate heat transfer.

Product Details





Part of the PowerFry3 line
Fry tank capacity: 70 lbs.
High efficiency
Freestanding model with 36 1/4-in. working height
Rigid stainless steel cabinet and frypot
Positioned on (4) 6-in. adjustable casters (2 can be locked)
Electronic matchless ignition
Operating temperature control: 200-390 degrees F
Digital temperature display
Users can cook with compensating time or actual time
3 melt modes
2 countdown timers
Auto boil-out mode
SoftStart ignition system outputs half of maximum BTUs per hour upon startup
ThreePass heat transfer system
Maintains idle temperature outputting 5,083 BTUs per hour
Flue temperature remains below 750 degrees F at maximum production rate
Hi-limit shutoff
KleenScreen PLUS filtration system operates with the push of a button
Twin fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Includes tank brush and clean-out rod
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Dimensions & Utilities





Tank: 19 1/2 in. W x 14 in. D
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Powered by LP gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
380.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 380.00
