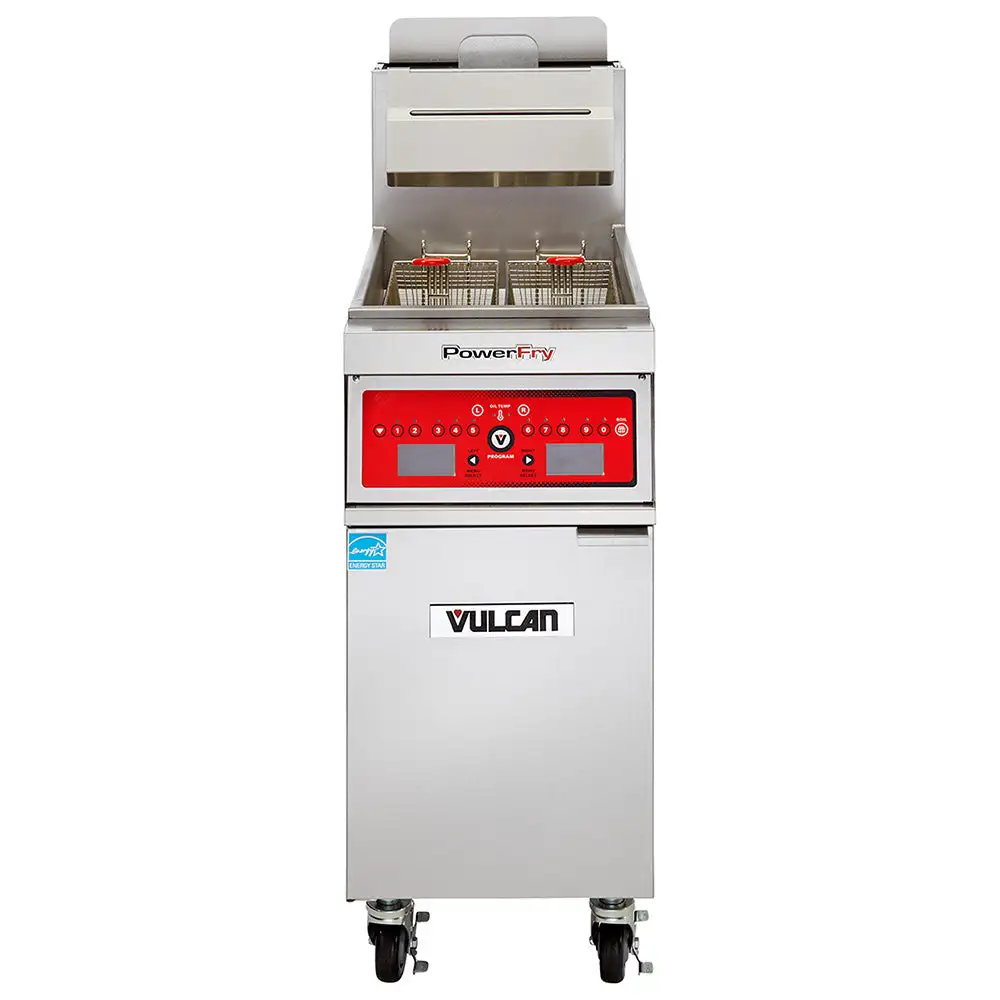

Vulcan 1TR85A Gas Fryer - (1) 90 Lb Vat, Floor Model, Liquid Propane

To maximize energy efficiency while uniformly distributing heat throughout cooking oil, the Vulcan 1TR85A PowerFry3® commercial gas fryer features a ThreePass® heat transfer system, which yields 60 percent cooking efficiency and 72 percent thermal efficiency. Operators can set the unit's temperature between 200 and 390 degrees Fahrenheit with the solid-state analog knob behind the door. If solid shortening is being used, staff can select one of the control's fat-melt modes to prolong the shortening's life and minimize damage to the frypot's welded joints. The SoftStart® ignition system quickly heats oil while outputting 45,000 BTUs per hour to extend oil life. Because the unit only outputs 5,575 BTUs per hour when idle, it aids in conserving energy. Overall, the unit's 19 1/2-inch-wide by 18 1/4-inch-deep frypot can hold 90 pounds of oil.
The Vulcan 1TR85A LP-gas-powered freestanding fryer is equipped with twin fryer baskets that contain battered okra, pickles, chicken, and fish during frying. To minimize heat transfer when retrieving the baskets, their handles are coated with plastic. This 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-tall unit establishes an ergonomic 36 1/4-inch working height. For lasting corrosion-resistant durability, the frypot and cabinet are made of stainless steel. Because it's positioned on four 6-inch smooth-rolling casters, it's simple to move for cleaning or maintenance. Two of the casters can be locked to stabilize the fryer during use.

Product Details





Part of the PowerFry3 collection
Accommodates 90 lbs. of oil
Electronic matchless ignition
Solid-state analog knob control behind the door
Operating temperature control: 200-390 degrees F
Selection of fat-melt modes
ThreePass heat transfer system effectively harnesses energy for uniform heat distribution
SoftStart ignition system outputs 45,000 BTUs per hour
Outputs 5,575 BTUs per hour to maintain idle temperatures
Flue temperature doesn't exceed 750 degrees F at maximum production rates
Hi-limit shutoff mechanism
Freestanding configuration
36 1/4-in. working height
Stainless steel cabinet and frypot
Mounted on (4) 6-in. adjustable casters (2 can be locked)
Twin fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Includes tank brush and clean-out rod
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by LP gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
267.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 267.00
