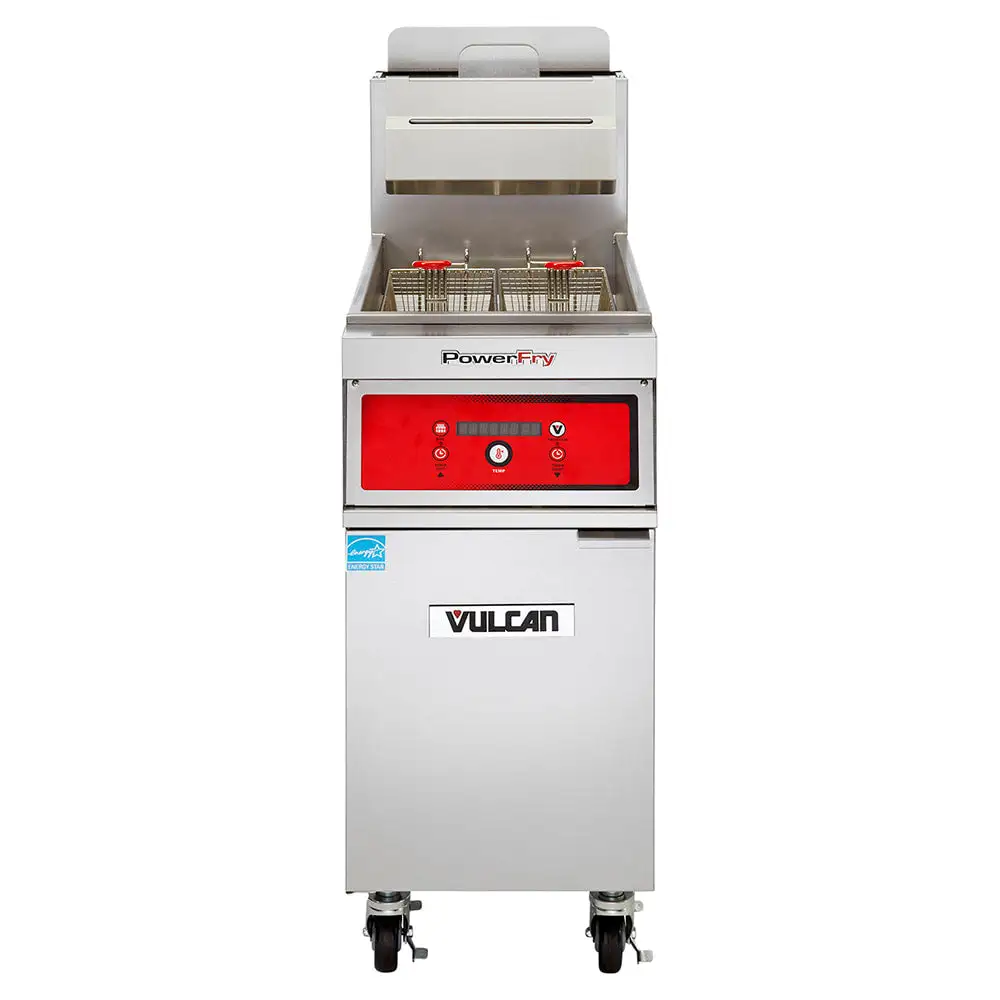

Vulcan 1TR85AF Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas

To establish a 36 1/4-inch working height, the Vulcan 1TR85AF PowerFry3® fryer measures 21 inches wide by 34 3/8 inches deep by 47 1/8 inches tall. Its 19 1/2-inch-wide by 18 1/4-inch-deep tank can hold 90 pounds of cooking oil and includes twin fryer baskets with plastic-coated handles to enhance user safety. This unit's cabinet and frypot are made of rugged, rust- and corrosion-resistant stainless steel for lasting durability and simplified cleaning. To further aid in cleaning, it comes with a clean-out rod and a tank brush. Because it's mounted on four 6-inch casters that provide smooth mobility, it's simple to reposition; two of the casters can be locked to secure the unit in place.
The Vulcan 1TR85AF commercial floor-model fryer operates with natural gas and can output 90,000 BTUs per hour. Users can set the unit's temperature from 200 to 390 degrees Fahrenheit using the solid-state analog knob control located behind the cabinet door. The controls' melt cycles can also be initiated to melt solid shortening, slow oil degradation, and minimize damage to the frypot's welded joints. The high-efficiency ThreePass® heat transfer system effectively uses energy to distribute heat evenly throughout the cooking oil and reduce recovery times. When oil is initially heated, the fryer's SoftStart® ignition system warms it quickly while outputting 45,000 BTUs per hour, which can help extend oil life. To conserve energy while maintaining idle oil temperatures, this unit only outputs 5,575 BTUs per hour. Operators can simply press a filter button to start a filtration cycle with the KleenScreen PLUS® filtration system.

Product Details





Part of the PowerFry3 line
Frypot oil capacity: 90 lbs.
Freestanding model with 36 1/4-in. working height
Stainless steel cabinet and frypot
Mounted on (4) 6-in. adjustable casters (2 can be locked)
Electronic matchless ignition
Solid-state analog knob behind door
Operating temperature control: 200-390 degrees F
User-selectable fat-melt modes
SoftStart ignition system outputs 45,000 BTUs per hour
ThreePass heat transfer system effectively harnesses energy for uniform heat distribution
Outputs 5,575 BTUs per hour to maintain idle oil temperature
Flue temperature doesn't exceed 750 degrees F at maximum production rates
Hi-limit shutoff mechanism
KleenScreen PLUS filtration system can be initiated with the push of a button
Twin fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Includes tank brush and clean-out rod
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by natural gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
420.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 420.00
