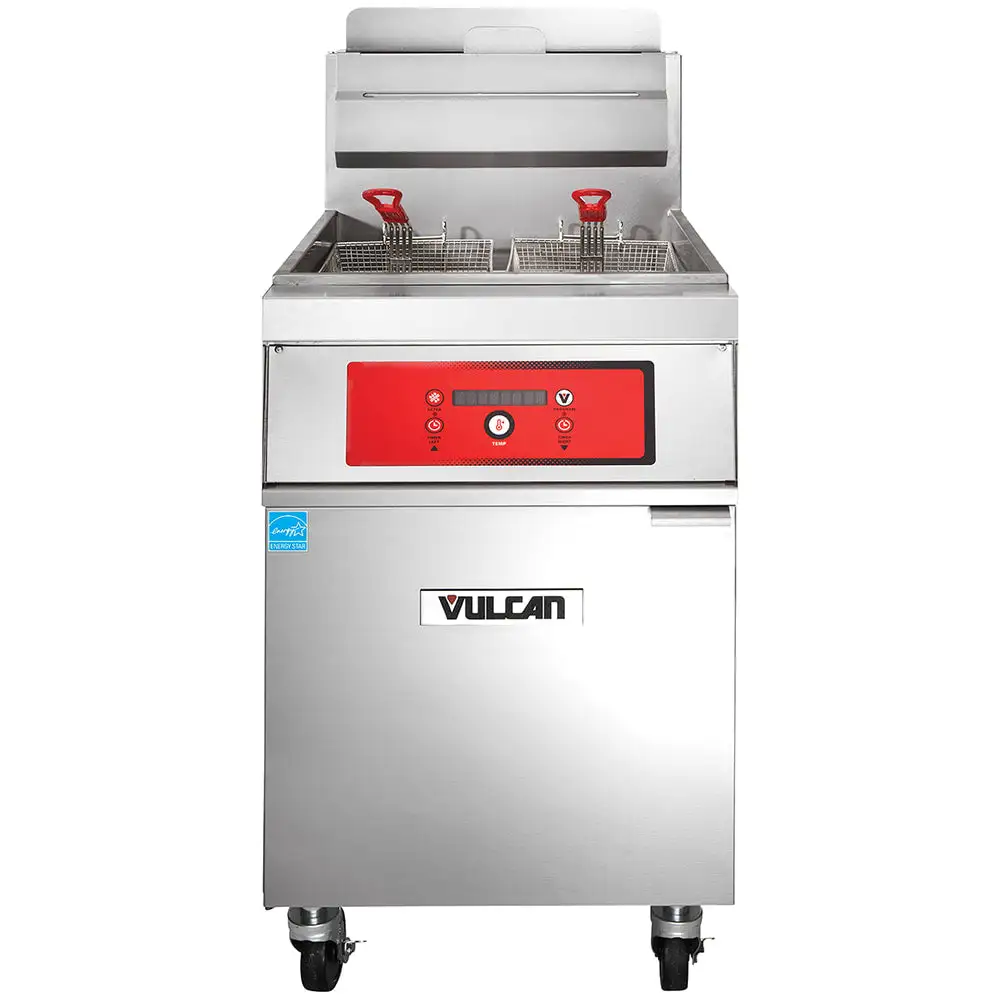

Vulcan 1TR65D Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas

The Vulcan 1TR65D PowerFry3® freestanding gas fryer operates with natural gas and can output 80,000 BTUs per hour. Its 19 1/2-inch-wide by 14-inch-deep frypot accommodates 70 pounds of oil, and to make use of solid shortening, it features three melt cycles. Its SoftStart® ignition system outputs 40,000 BTUs per hour while initially heating cooking oil, and the ThreePass® heat transfer system effectively distributes heat to reduce cook times and yield 60 percent cooking efficiency and 72 percent thermal efficiency. To maintain oil temperatures, this unit only outputs 5,083 BTUs per hour. Users can set temperatures from 200 to 390 degrees Fahrenheit outputting the solid-state temperature controls, and a digital display provides an accurate readout of oil temperature. Twin fryer baskets are included to simplify submerging products into oil and lifting them once they're fried. For enhanced user safety, these baskets' handles are coated in plastic to minimize heat transfer.
The Vulcan 1TR65D commercial gas fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches tall and establishes an ergonomic 36 1/4-inch working height. This unit is positioned on four 6-inch casters that provide smooth mobility for repositioning. When it must be secured in place, two of the casters can be locked. Both the cabinet and frypot are made of durable, rust- and corrosion-resistant stainless steel to prolong its service life through high-volume back-of-house use. To simplify cleaning, this unit is built with a 1 1/4-inch port ball-type drain valve and includes a clean-out rod and tank brush.

Product Details





Part of the PowerFry3 series
70-lb. vat capacity
High-efficiency model
Freestanding with 1 frypot
36 1/4-in. working height
Durable, corrosion-resistant stainless steel cabinet and frypot
Positioned on (4) 6-in. adjustable casters (2 can be locked)
Electronic matchless ignition
SoftStart ignition system outputs 40,000 BTUs per hour upon startup
ThreePass heat transfer system harnesses energy for even heating
Maintains idle oil temperature by outputting 5,083 BTUs per hour
Flue temperature doesn't exceed 750 degrees F at maximum production rates
Hi-limit shutoff mechanism
Twin fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Includes tank brush and clean-out rod
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Solid-state Temperature Controller





Operating temperature control: 200-390 degrees F
Temperature display
3 melt modes
2 countdown timers
Auto boil-out mode
Users can cook with compensating time or actual time

Dimensions & Utilities





Tank: 19 1/2 in. W x 14 in. D
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Powered by natural gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
237.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 237.00
