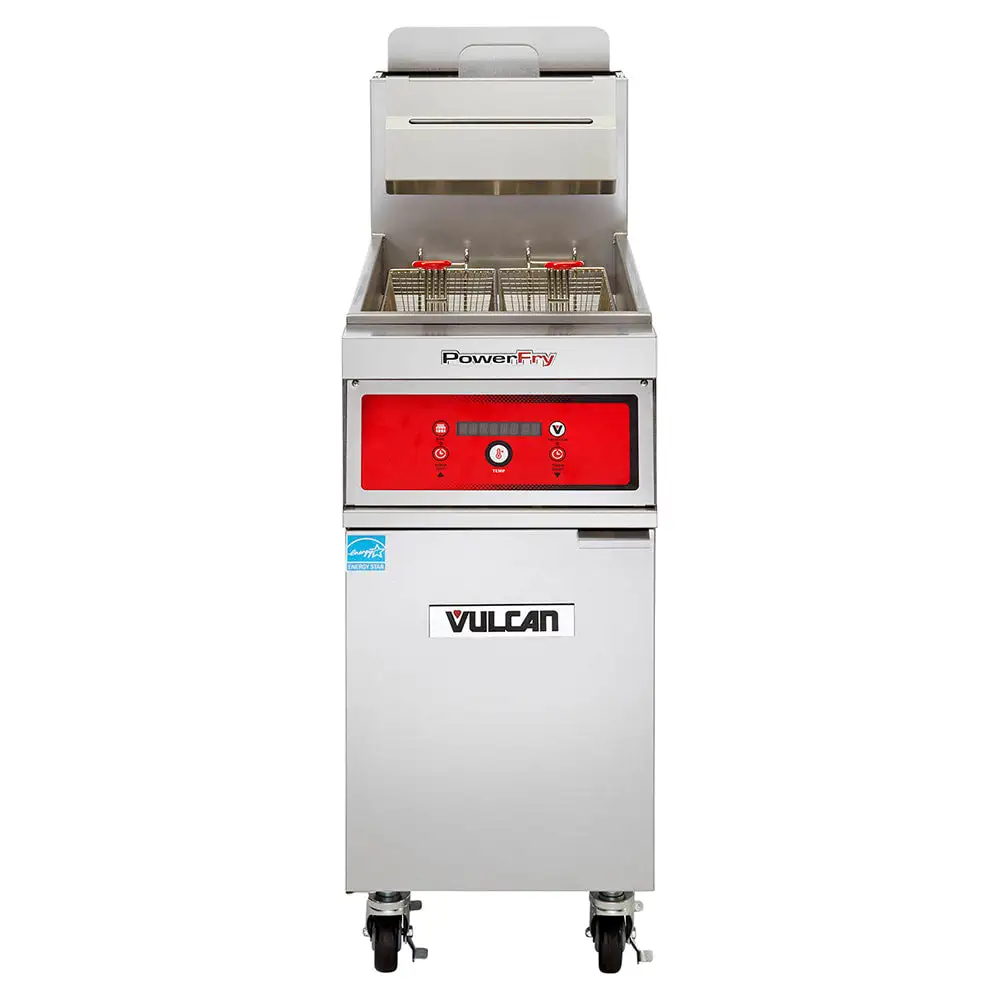

Vulcan 1TR85CF Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas

To save space and enhance employee comfort, the Vulcan 1TR85CF commercial fryer is a 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-tall freestanding unit with a 36 1/4-inch working height. Its stainless steel cabinet and frypot match other back-of-house equipment and provide lasting rust-, dent-, and scratch-resistant durability. This unit is fitted with four 6-inch casters that deliver smooth mobility when it needs to be moved for maintenance or cleaning; to ensure it remains stable during use, two of the casters include brakes. Its 19 1/2-inch-wide by 18 1/4-inch-deep frypot boasts a 90-pound oil capacity to accommodate chicken, fish, french fries, and vegetables for medium- and high-traffic settings. Twin fryer baskets come with the fryer to keep contents contained as they're fried, and to minimize burn risk, the baskets' handles are coated in plastic.
The fryer's programmable computer controls enable staff to set timers for 10 menu items to simplify preparing the fryer for commonly cooked items. For added flexibility, operators can upload menu items offline using a USB interface. Users can set temperatures from 200 to 390 degrees Fahrenheit and then monitor oil temperatures with the digital display. To accommodate different types of shortening and minimize damage to the frypots welded joints, it provides three melt mode options.
As part of the PowerFry3® series, this fryer features a ThreePass® heat transfer system, which uniformly distributes heat throughout the oil to minimize recovery times and yield 72 percent thermal efficiency and 60 percent cooking efficiency. The SoftStart® ignition system quickly heats oil while outputting 45,000 BTUs per hour to extend oil life. When maintaining idle temperatures, it outputs only 5,575 BTUs per hour to further conserve energy. To remove impurities and prolong oil life, this unit is equipped with the KleenScreen PLUS® filtration system, which can be activated with the press of a button.

Product Details





Featured in the PowerFry3 series
90-lb. oil capacity
High efficiency
Electronic matchless ignition
ThreePass heat transfer system effectively harnesses energy
SoftStart ignition system heats oil quickly and outputs 45,000 BTUs per hour
Only outputs 5,575 BTUs per hour to maintain idle temperatures
Flue temperature doesn't exceed 750 degrees F at maximum production rates
Hi-limit shutoff mechanism
KleenScreen PLUS filtration system can be started with push of a button
Freestanding unit
36 1/4-in. working height
Stainless steel cabinet and frypot
(4) 6-in. adjustable casters (2 with locks)
Twin fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Includes tank brush and clean-out rod
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Computer Control System





Programmable computer controls
Digital character display
10 menu timers
Operating temperature control: 200-390 degrees F
3 melt modes
Can cook with compensating time or actual time
Menu items can be programmed offline through USB interface (software included)

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by natural gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
420.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 420.00
