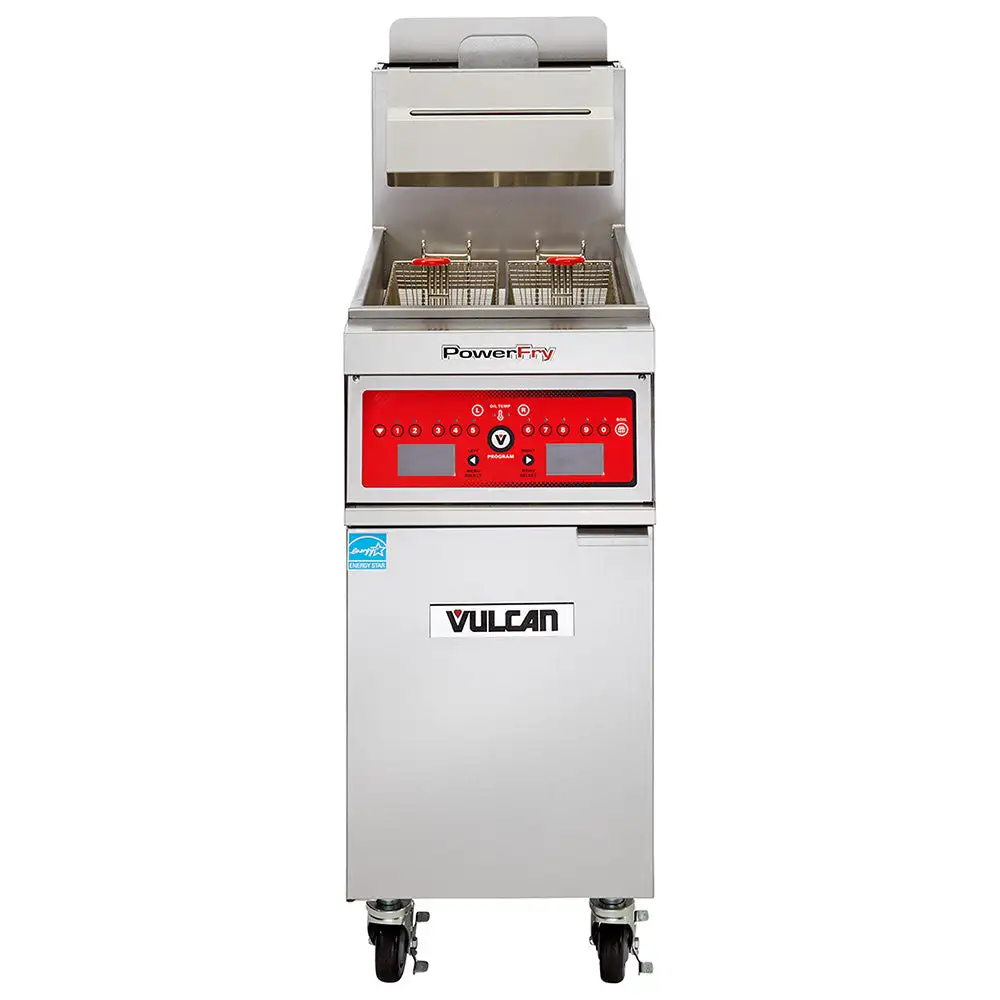

Vulcan 1TR85A Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas

The Vulcan 1TR85A high-efficiency gas fryer is part of the PowerFry3® series, meaning it's equipped with a ThreePass® heat transfer system that effectively harnesses energy to warm oil evenly. Great for medium- and high-traffic settings, its 19 1/2-inch-wide by 18 1/4-inch-deep frypot accommodates 90 pounds of oil. Staff can use the solid-state analog knob control located behind the door to set temperatures from 200 to 390 degrees Fahrenheit, and to warm solid shortening properly, they can choose from a selection of fat-melt modes. Its SoftStart® feature outputs 45,000 BTUs per hour upon startup to save energy while initially heating oil. To further conserve energy usage, it only outputs 5,575 BTUs per hour to maintain idle oil temperatures. At the maximum production rate, the flue won't exceed temperatures hotter than 750 degrees Fahrenheit.
The Vulcan 1TR85A commercial floor-model fryer provides a comfortable 36 1/4-inch working height, measuring 21 inches wide by 34 3/8 inches deep by 47 3/8 inches tall. The two included fry baskets keep chicken breasts, fish filets, okra, french fries, and other foods in place as they're submerged into the oil and removed from the vat. To enhance user safety, their plastic-coated handles reduce heat transfer. The cabinet and frypot are made of durable, corrosion-resistant stainless steel that's simple to wipe clean and matches common back-of-house equipment for uniformity. Because it's mounted on four adjustable casters, it can be moved out of the way for cleaning or maintenance; during use, two of the casters can be locked to ensure it stays in place. This unit comes with a tank brush and clean-out rod to ease cleanup.

Product Details





Part of the PowerFry3 line
Frypot oil capacity: 90 lbs.
Electronic matchless ignition
Solid-state analog knob control behind door
Operating temperature control: 200-390 degrees F
Fat-melt modes
ThreePass heat transfer system yields 60 percent cooking efficiency and 72 percent thermal efficiency
SoftStart ignition system outputs 45,000 BTUs per hour
Outputs 5,575 BTUs per hour to maintain idle temperatures
Flue temperature doesn't exceed 750 degrees F at maximum production rates
Hi-limit shutoff mechanism
Freestanding unit
36 1/4-in. working height
Stainless steel cabinet and frypot
Mounted on (4) 6-in. adjustable casters (2 locking)
Twin fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Includes tank brush and clean-out rod
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by natural gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
267.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 267.00
