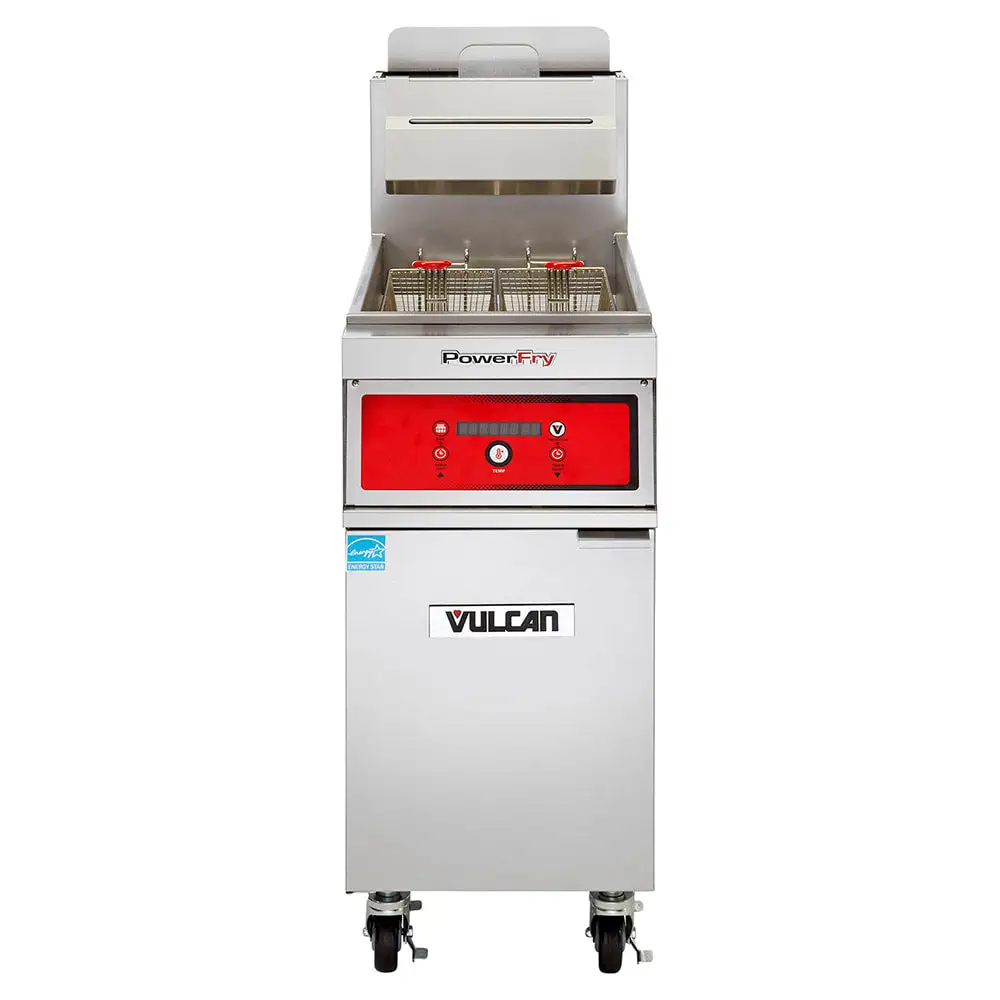

Vulcan 1TR85CF Gas Fryer - (1) 90 Lb Vat, Floor Model, Liquid Propane

Designed to simplify operation, the Vulcan 1TR85CF PowerFry3® LP gas fryer is built with programmable computer controls and a digital character display. Operators can set timers for 10 common menu items, and the display will provide readouts of the product name and cook time. By using a USB interface, staff can upload menu timers offline. The unit's temperature can be adjusted from 200 to 390 degrees Fahrenheit, and the digital display provides an accurate readout so employees can ensure foods are cooked at appropriate temperatures. To melt shortening and protect the frypot's welded joints from damage, the control panel features three melt modes.
To conserve energy and maximize efficiency, this fryer features a ThreePass® heat transfer system, which harnesses energy and evenly distributes heat throughout the oil to yield 72 percent thermal efficiency and 60 percent cooking efficiency. Its SoftStart® ignition system outputs 45,000 BTUs per hour to heat oil quickly while extending its oil life. To maintain idle temperatures, the fryer only outputs 5,575 BTUs per hour to save energy. With the push of a button, staff can initiate the KleenScreen PLUS® filtration cycle, which removes impurities and prolongs oil life to save operators money.
The Vulcan 1TR85CF high-efficiency commercial fryer is a freestanding unit made of durable, corrosion-resistant stainless steel. Its 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-tall structure establishes a comfortable 36 1/4-inch working height. The 19 1/2-inch-wide by 18 1/4-inch-deep frypot can accommodate 90 pounds of oil, and the included fryer baskets can be used in the fry tank simultaneously to contain different foods. To minimize the risk of burns, the baskets' handles are plastic coated. This gas-powered unit is fitted with four 6-inch casters for smooth mobility, and two of the casters can be locked to ensure it remains stable during use.

Product Details





Part of the PowerFry3 collection
Frypot accommodates 90 lbs. of oil
Electronic matchless ignition
ThreePass heat transfer system enhances cooking and thermal efficiency
SoftStart ignition system heats oil quickly by outputting 45,000 BTUs per hour
Outputs 5,575 BTUs per hour to maintain idle temperatures
Flue temperature doesn't exceed 750 degrees F at maximum production rates
Hi-limit shutoff mechanism
KleenScreen PLUS filtration system
Freestanding unit
36 1/4-in. working height
Stainless steel cabinet and frypot
(4) 6-in. adjustable casters (2 locking)
Twin fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Includes tank brush and clean-out rod
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Computer Controller





Programmable computer controls with digital character display
10 menu timers
Menu items can be programmed offline through USB interface (software included)
Operating temperature control: 200-390 degrees F
3 melt modes
Can cook with compensating time or actual time

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by LP gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
420.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 420.00
