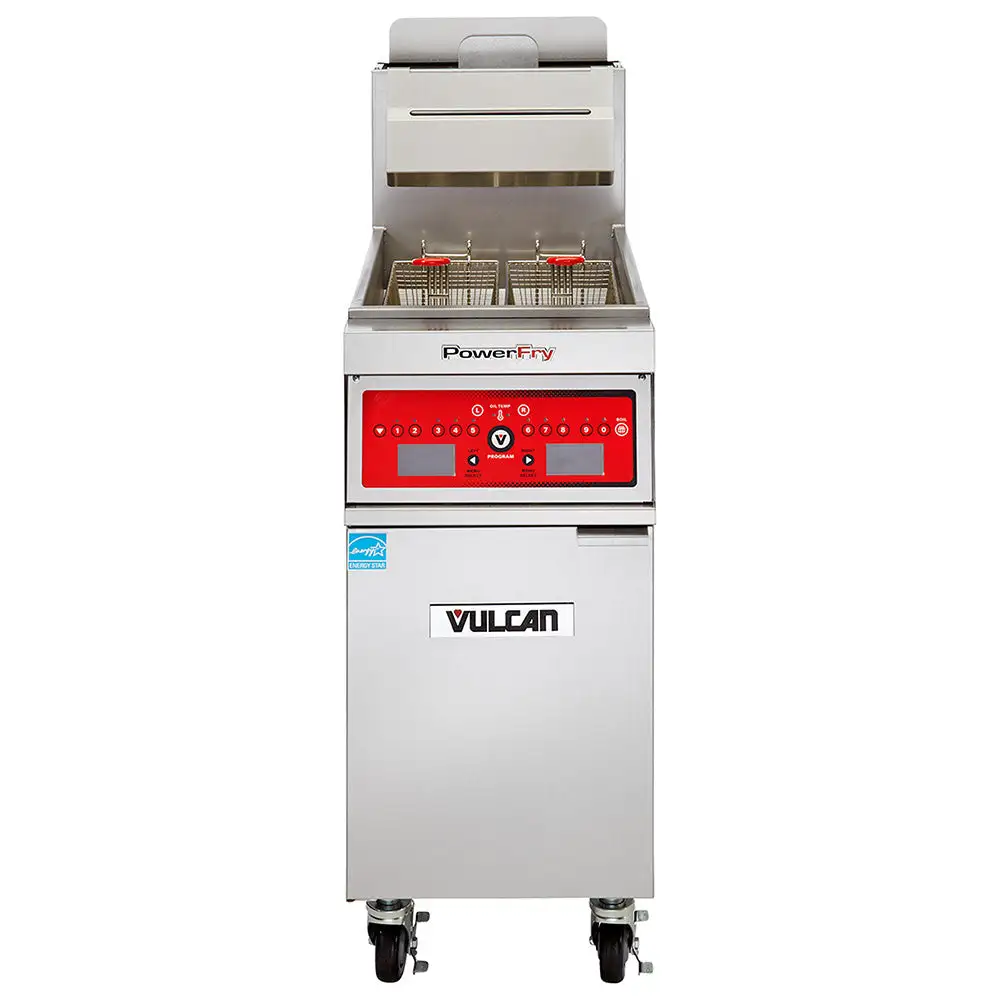

Vulcan 1TR85C Gas Fryer - (1) 90 Lb Vat, Floor Model, Liquid Propane

As part of the PowerFry3® series, the Vulcan 1TR85C commercial gas fryer is ideal for medium- to high-volume operations because it operates with the ThreePass® heat transfer system. This mechanism uses heat exchange tubes to transfer heat from the burners to the cooking oil for quick and efficient frying. When initially warming up, its SoftStart® mechanism slowly raises oil temperature, minimizing the risk of scorching oil while outputting 45,000 BTUs per hour to conserve energy. At a maximum, this fryer only outputs 5,575 BTUs per hour to maintain idle temperatures. By using the programmable computer controls, operators can set 10 menu timers and modify oil temperatures from 200 to 390 degrees Fahrenheit. The digital display provides a readout of menu items, cook times, and temperatures so staff can ensure the correct setting has been initiated. To accommodate solid shortening, this control system features three melt modes.
The Vulcan 1TR85C floor model fryer features a 19 1/2-inch-wide by 18 1/4-inch-deep frypot that accommodates 90 pounds of oila€”great for frying chicken, fish, okra, pickles, and more. Included twin fryer baskets secure foods in place as they're cooked, and to enhance user safety when lifting the baskets from hot oil, these pieces feature plastic-coated handles that minimize heat transfer. To simplify cleaning, this unit is built with a 1 1/4-inch port ball-type drain valve and includes a tank brush and clean-out rod. For lasting durability and corrosion resistance, the cabinet and fry tank are made of stainless steel. Its 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-tall body establishes a comfortable 36 1/4-inch working height. Because it's fitted with four 6-inch casters, it can be moved out of the way when the floor requires cleaning; two of these casters can be locked to ensure the unit remains stable during use.

Product Details





Part of Vulcan's PowerFry3 series
90-lb. vat capacity
Freestanding model
36 1/4-in. working height
Corrosion-resistant stainless steel cabinet and fry tank
Mounted on (4) 6-in. adjustable casters (2 with locks)
Electronic matchless ignition
SoftStart ignition system gradually raises oil temperature upon startup
ThreePass heat transfer system yields 60 percent cooking efficiency and 72 percent thermal efficiency
Energy-saving idle temperature setting outputs 5,575 BTUs per hour
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
2 fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Includes tank brush and clean-out rod
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Computer Control System





Programmable computer controls with digital character display
10 menu timers
USB interface enables offline programming
Operating temperature range: 200-390 degrees F
Temperature display in Fahrenheit or Celsius
3 melt modes

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by LP gas
Includes 120-volt cord and NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
267.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 267.00
