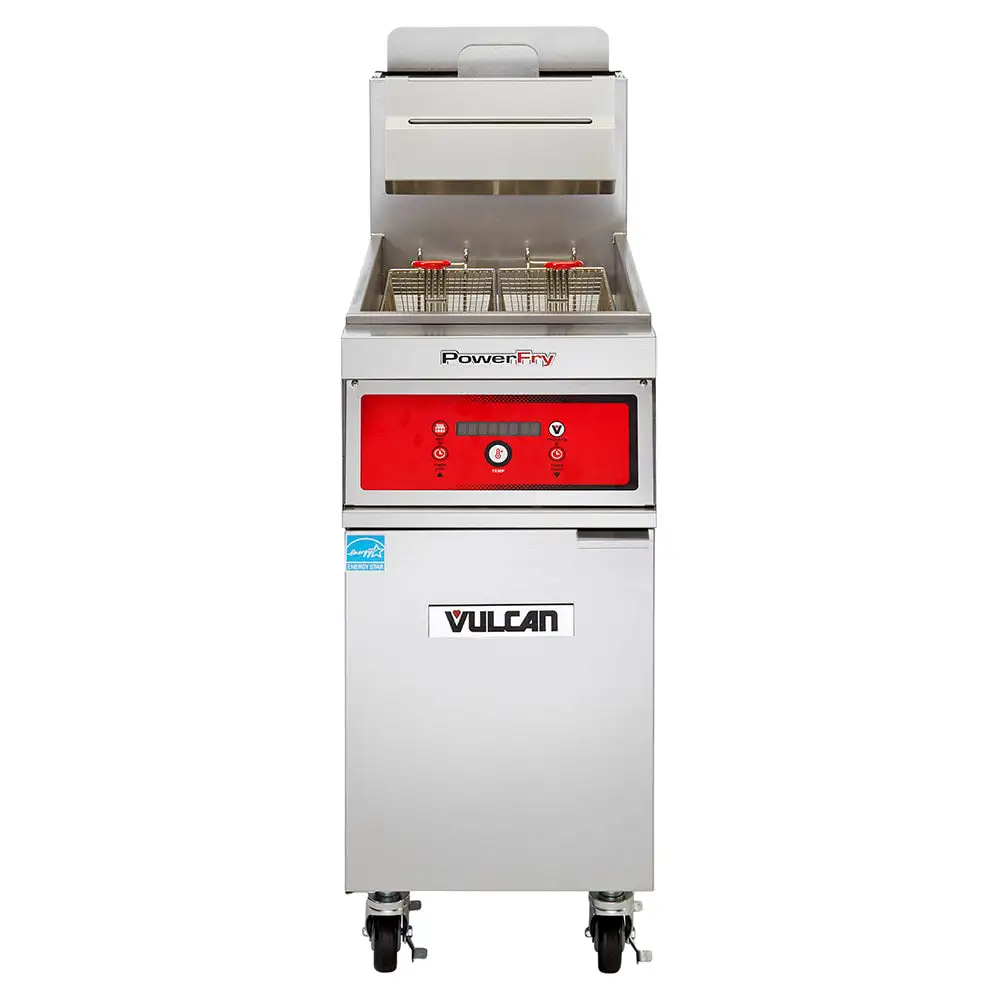

Vulcan 1TR85DF Gas Fryer - (1) 90 Lb Vat, Floor Model, Liquid Propane

Designed to enhance energy efficiency while reducing cook times, the Vulcan 1TR85DF PowerFry3® gas fryer features a 90-pound-capacity, 19 1/2-inch-wide by 18 1/4-inch-deep frypot and uses a ThreePass® heat transfer system to maximize heat transfer from the burners to the oil. For simple startup, this unit features electronic ignition, and operators can set unit temperatures between 200 and 390 degrees Fahrenheit with the digital display. To accommodate solid shortening, it includes three melt modes. Users can set two countdown timers to minimize the chance of undercooking or burning product. The SoftStart® ignition system outputs 45,000 BTUs per hour to increase oil temperature slowly and reduce the risk of scorching the oil.
Once the desired temperature is reached, staff can initiate the idle temperature setting, which only outputs 5,575 BTUs per hour. The flue doesn't exceed 750 degrees Fahrenheit when the unit is operating at a maximum production rate, and a hi-limit shutoff mechanism turns the unit off if temperatures exceed the set range. To extend oil life, this freestanding unit is equipped with the KleenScreen PLUS® filtration system, which features a stainless steel mesh screen that filters out particulates from two sides. Operators can activate the motor or pump with the push of a button for simple operation. Because its motor and pump feature an 8-gallon-per-minute flow rate, they reduce the time required to filter oil. For thorough cleaning, employees can use the Boil Out By-Pass® mechanism to remove residual boil-out solution. The lightweight, one-piece filter pan can be removed and washed in a dishmachine.
The Vulcan 1TR85DF LP-gas-powered fryer provides a comfortable 36 1/4-inch working height and measures 21 inches wide by 34 3/8 inches deep by 47 1/8 inches tall overall. Its stainless steel cabinet and frypot are durable enough to withstand medium- to high-volume back-of-house use. To streamline frying, this unit includes twin fryer baskets with plastic-coated handles to minimize burn risk. Because it's fitted with four 6-inch casters, it's simple to move; two of these casters include brakes to ensure stability during operation. Oil can be drained from the 1 1/4-inch port ball-type drain valve, and the tank brush and clean-out rod simplify cleaning the frypot.

Product Details





Part of the PowerFry3 collection
Single vat accommodates 90 lbs. of oil
Electronic matchless ignition
SoftStart ignition system outputs 45,000 BTUs per hour while slowly increasing oil temperature
ThreePass mechanism maximizes heat transfer
Idle temperature setting maintains heat
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
36 1/4-in. working height
Freestanding configuration
Stainless steel cabinet and frypot
2 fryer baskets with plastic-coated handles to minimize heat transfer
Includes tank brush and clean-out rod for cleaning
1 1/4-in. port ball-type drain valve
(4) 6-in. adjustable casters (2 locking)
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Solid-state Digital Controls





Operating temperature range: 200-390 degrees F
Digital display with temperatures in Fahrenheit or Celsius
Can cook with compensating time or actual time
3 melt modes
2 countdown timers
Auto boil-out mode

Filtration System Details





1-touch button engages motor and pump
Stainless steel mesh filter screen filters from 2 sides to create a filtration area ranging from 270-350-sq. in.
Boil Out By-Pass® mechanism removes boil-out solution
Drain valve interlock switch shuts off burners when drain valve is opened
1-piece filter pan accommodates 110 lbs. of oil and is dishwasher safe
8-GPM motor and pump
Hands-free oil-return tube

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
420.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 420.00
