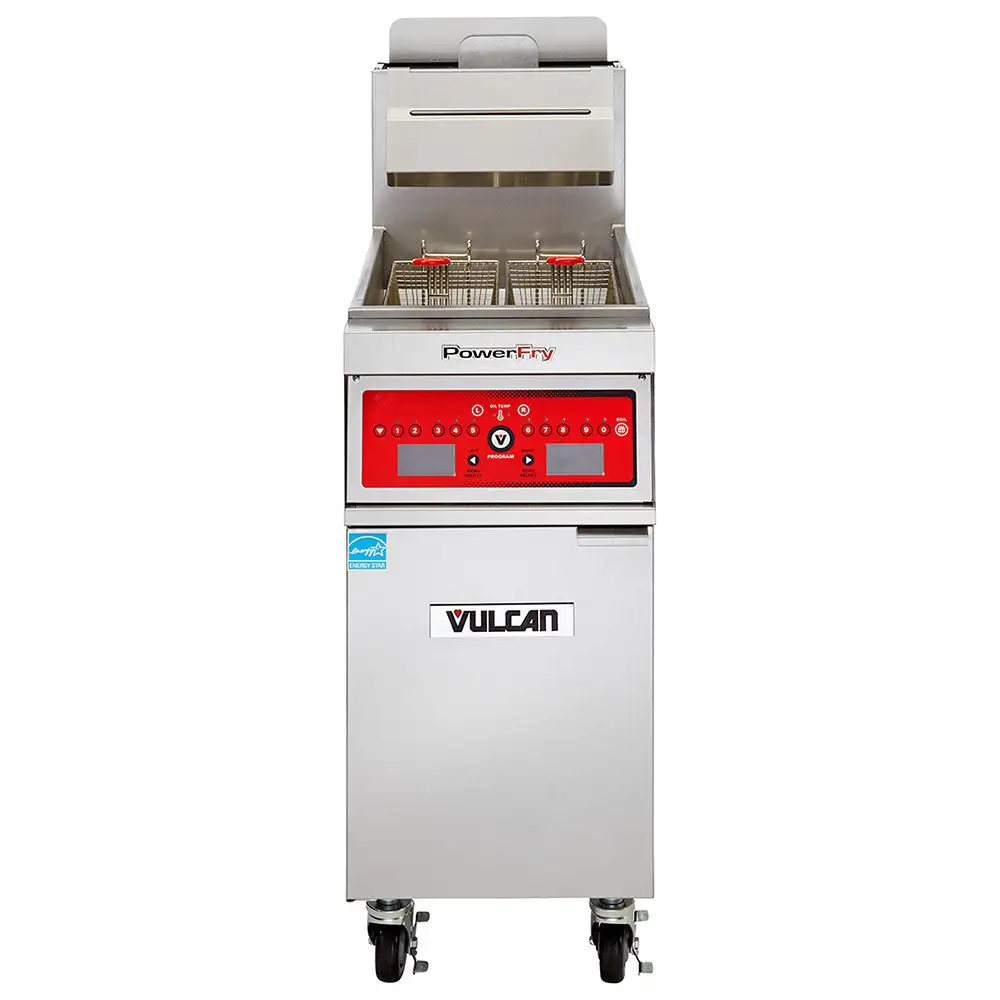

Vulcan 1TR85C Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas

To conserve space in busy kitchens, the Vulcan 1TR85C PowerFry3® commercial floor-model fryer measures 21 inches wide by 34 3/8 inches deep by 47 1/8 inches tall. Its stainless steel construction complements other back-of-house equipment without sacrificing corrosion resistance or durability. This freestanding unit provides an ergonomic 36 1/4-inch working height, and it's mounted on four 6-inch castersa€”two of which can be lockeda€”to ease repositioning. The 19 1/2-inch-wide by 18 1/4-inch-deep frypot accommodates the included twin fryer baskets, which secure foods in place as they're lowered into the vat and removed from hot oil. The baskets' plastic-coated handles minimize heat transfer for user safety, and for simple cleanup, this unit includes a clean-out rod and tank brush and is built with a 1 1/4-inch port ball-type drain valve.
The Vulcan 1TR85C commercial freestanding gas fryer's frypot can hold 90 pounds of cooking oil to accommodate medium- and high-traffic settings. Operators can set oil temperature from 200 to 390 degrees Fahrenheit with the programmable computer controls. A digital display provides an accurate temperature readout so users can ensure products are cooked at appropriate temperatures. As many as 10 menu items can be programmed into the timer system; employees can upload menu items with a USB interface. To melt solid shortening, this control system includes three melt modes. The SoftStart® ignition system slowly warms oil to minimize scorching and save energy, and its ThreePass® heat transfer system maximizes heat transfer to minimize cook times and recovery. Staff can initiate the idle temperature setting, which only outputs 5,575 BTUs per hour to maintain set temperatures. At the unit's maximum production rate, the flue won't exceed 750 degrees Fahrenheit to reduce air conditioning costs.

Product Details





Part of the PowerFry3 series
Accommodates 90 lbs. of oil
Electronic matchless ignition
Energy-saving SoftStart ignition system slowly increases oil temperature
Efficient ThreePass heat transfer system
Idle temperature setting maintains heat while outputting only 5,575 BTUs per hour
Flue temperature remains below 750 degrees F at fryer's maximum production rate
Hi-limit shutoff
Freestanding unit with 36 1/4-in. working height
Stainless steel cabinet and frypot
Mounted on (4) 6-in. adjustable casters (2 with locks)
Twin fryer baskets with plastic-coated handles
Includes tank brush and clean-out rod
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Computer Control System





Programmable computer controls with digital character display
Operating temperature range: 200-390 degrees F
Temperature display in Fahrenheit or Celsius
10 menu timers
USB interface enables offline programming
3 melt modes

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by natural gas
Includes 120-volt cord and NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
267.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 267.00
