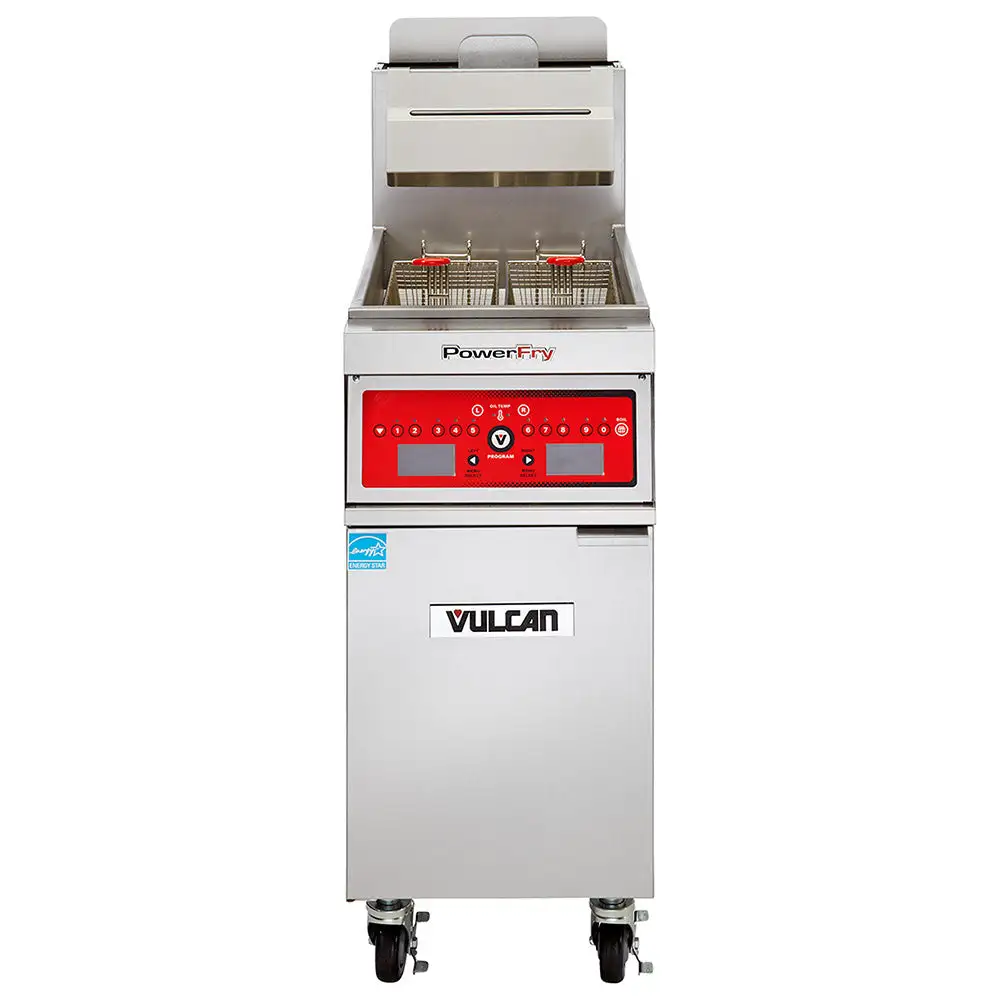

Vulcan 1TR85D Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas

The Vulcan 1TR85D PowerFry3® freestanding fryer is a high-efficiency model that operates with natural gas and can output 90,000 BTUs per hour. Its 19 1/2-inch-wide by 18 1/4-inch-deep vat accommodates 90 pounds of oil to keep up with medium- and high-traffic restaurant demands. With the solid-state digital controls, employees can set oil temperature from 200 to 290 degrees Fahrenheit, set two countdown timers, initiate an automatic boil-out mode, and select one of three melt modes. To prevent scorched oil, the SoftStart® ignition system outputs 45,000 BTUs per hour to raise oil temperature slowly. Its ThreePass® heat transfer system efficiently moves heat from the burners to the oil to establish 60 percent cooking efficiency and 72 percent thermal efficiency. When the unit reaches the set temperature, it only outputs 5,575 BTUs to maintain it.
To keep contents contained as they're fried, the Vulcan 1TR85D commercial floor-model fryer includes twin fryer baskets. Their plastic-coated handles enhance user safety by minimizing heat transfer. For long-term back-of-house use, the cabinet and frypot are made of stainless steela€”a durable metal that resists corrosion and simplifies cleaning. This 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-tall unit provides a 36 1/4-inch working height, and it's positioned on four 6-inch casters to simplify repositioning for cleaning or maintenance.

Product Details





Featured in the PowerFry3 series
Frypot accommodates 90 lbs. of oil
Electronic matchless ignition
SoftStart ignition system minimizes risk of scorching oil
ThreePass mechanism effectively transfers heat from burners to oil
60 percent cooking efficiency and 72 percent thermal efficiency
Idle temperature setting maintains set temperatures while outputting 5,575 BTUs per hour
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
Freestanding unit with 1 frypot
36 1/4-in. working height
Corrosion-resistant stainless steel cabinet and frypot
Twin fryer baskets featuring plastic-coated handles
Includes tank brush and clean-out rod
1 1/4-in. port ball-type drain valve
Equipped with (4) 6-in. casters (2 locking)
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Solid-state Digital Controls





Operating temperature range: 200-390 degrees F
Temperatures can be displayed in Fahrenheit or Celsius
Cooks with compensating time or actual time
Automatic boil-out mode
3 melt modes
2 countdown timers

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by natural gas
Includes 120-volt cord and NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
267.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 267.00
