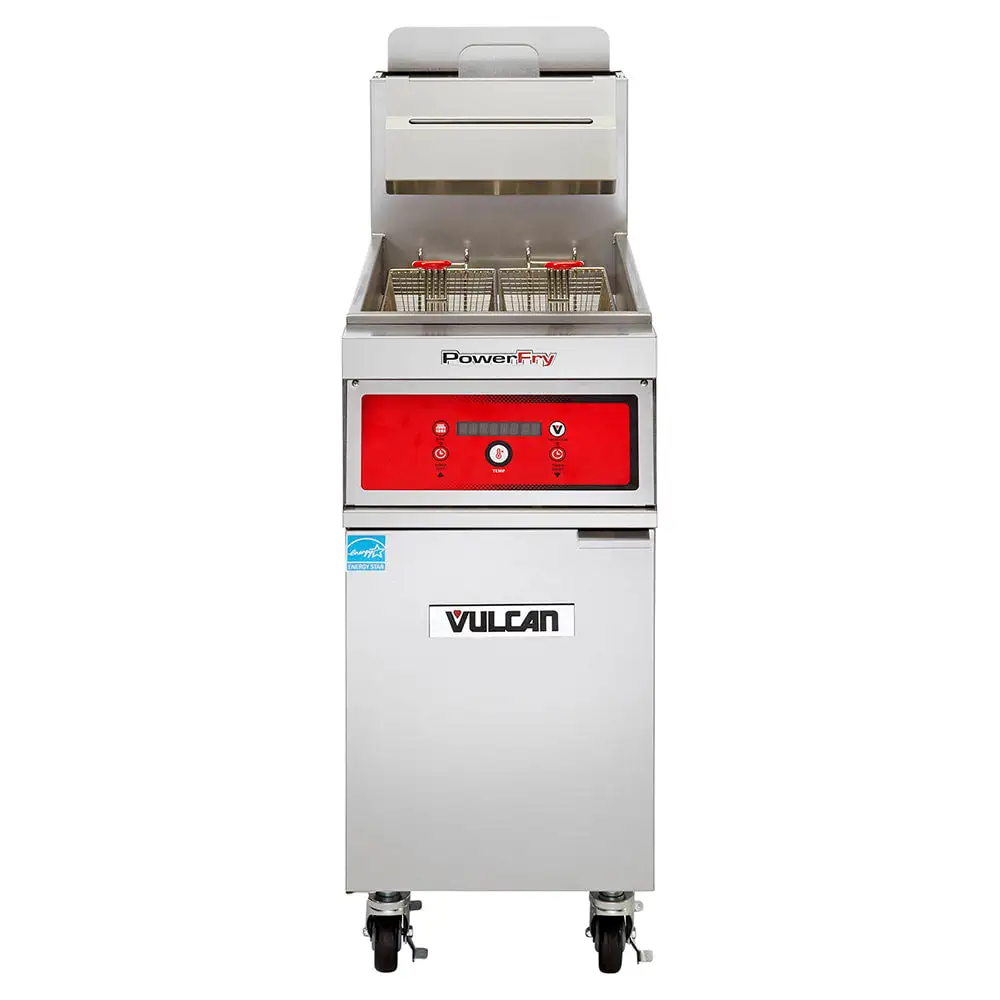

Vulcan 1TR85DF Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas

To fry chicken, fish, tofu, french fries, okra, and more, the Vulcan 1TR85DF commercial gas fryer features a 90-pound-capacity vat, which measures 19 1/2 inches wide by 18 1/4 inches deep. The two included fryer baskets secure food in place as it's lowered into the oil and removed from the frypot. To enhance user safety, the handles are coated in plastic to reduce heat transfer. This 21-inch-wide by 36 1/4-inch-deep by 47 1/8-inch-tall unit provides a 36 1/4-inch working height for comfort. Because it's equipped with four 6-inch castersa€”two of which can be lockeda€”it can be repositioned or transported as needed. For lasting durability, the cabinet and frypot are made of durable, corrosion-resistant stainless steel.
Its solid-state digital controls enable users to simply adjust temperatures from 200 to 390 degrees Fahrenheit. The SoftStart® mechanism gradually increases oil temperature by outputting 45,000 BTUs per hour to minimize the risk of scorching oil. To maximize heat transfer, this PowerFry3® unit features a ThreePass® system that efficiently directs heat from the burners to the oil to reduce cook and recovery times. When the fryer has achieved the desired temperature, staff can initiate the idle temperature setting to hold temperatures while saving energy. To heat solid shortening, users can select one of the three melt modes. Two countdown timers can be set to ensure products are cooked for an appropriate length of time.
To extend the Vulcan 1TR85DF freestanding fryer's oil life, the KleenScreen PLUS® filtration system includes a stainless steel mesh filter screen that filters out debris and particulates from two sides to achieve good-tasting oil. For simple operation, this system features a corresponding button to initiate a filtration cycle. Its drain valve interlock switch automatically turns off the burners when the drain valve is opened. Because its flow rate is 8 gallons per minute, it expedites the filtering time. To ease cleaning, it features a Boil Out By-Pass® mechanism that removes boil-out solution, and its lightweight pan can be removed and sanitized in a dishwasher.

Product Details





Part of the PowerFry3 line
90-lb. oil capacity
Electronic matchless ignition
SoftStart ignition system outputs 45,000 BTUs per hour to increase oil temperature slowly
ThreePass mechanism maximizes heat transfer
Idle temperature setting maintains set temperatures
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
Freestanding configuration with 36 1/4-in. working height
Stainless steel cabinet and frypot
Includes 2 fryer baskets with plastic-coated handles
Includes tank brush and clean-out rod for cleaning
1 1/4-in. port ball-type drain valve
Equipped with (4) 6-in. casters (2 locking)
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Solid-state Digital Controls





Operating temperature range: 200-390 degrees F
Temperatures displayed in Fahrenheit or Celsius
Cooks with compensating time or actual time
3 melt modes
2 countdown timers
Auto boil-out mode

Filtration System Details





1-touch button engages motor and pump
Stainless steel mesh filter screen filters from 2 sides
Dishwasher-safe, lightweight 1-piece filter pan with 110-lb. oil capacity
Boil Out By-Pass® mechanism removes boil-out solution
Drain valve interlock switch shuts off burners when drain valve is opened
8-GPM motor and pump
Hands-free oil-return tube

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
420.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 420.00
