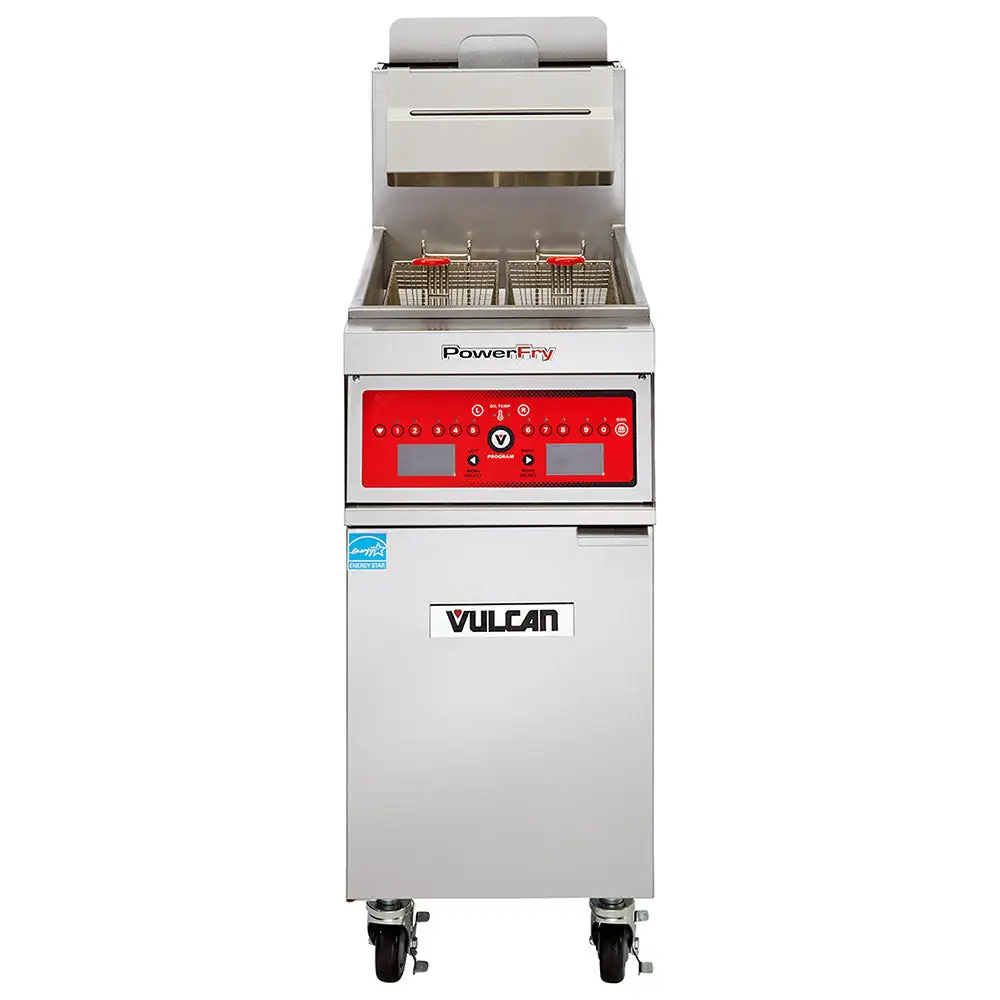

Vulcan 1TR85D Gas Fryer - (1) 90 Lb Vat, Floor Model, Liquid Propane

To meet the demands of medium- and high-volume establishments, the Vulcan 1TR85D PowerFry3® high-efficiency gas fryer features a ThreePass® heat transfer system that effectively directs heat from the burners to the oil, resulting in quick cooking and recovery times. To minimize the risk of scorching oil, the SoftStart® ignition system gradually warms oil by outputting 45,000 BTUs. Operators can set oil temperatures between 200 and 390 degrees Fahrenheit with the solid-state digital controls; once oil reaches the desired temperature, the idle temperature setting only outputs 5,575 BTUs per hour to retain temperatures; the controls also enable employees to select from three melt modes, set two countdown timers, and initiate an auto boil-out mode.
The Vulcan 1TR85D commercial freestanding fryer's 19 1/2-inch-wide by 18 1/4-inch-deep frypot accommodates 90 pounds of cooking oila€”great for cooking mozzarella sticks, french fries, or chicken. Twin fryer baskets keep foods contained as they're inserted into the frypot and lifted from the oil. Their plastic-coated handles minimize heat transfer for staff safety. Because this unit is built with a 1 1/4-inch port ball-type drain valve, oil can be expelled with ease. Staff can thoroughly clean the frypot with the tank brush and clean-out rod. Overall, this corrosion-resistant stainless steel unit measures 21 inches wide by 34 3/8 inches deep by 47 1/8 inches tall and is positioned on four smooth-rolling, 6-inch-diameter casters to ease transport. To ensure stabilization during use, two of the casters can be locked.

Product Details





Part of the PowerFry3 series
Frypot oil capacity: 90 lbs.
Freestanding model with 1 vat
36 1/4-in. working height
Rugged stainless steel cabinet and frypot resist corrosion
Twin fryer baskets with plastic-coated handles
Includes tank brush and clean-out rod
1 1/4-in. port ball-type drain valve
Equipped with (4) 6-in. casters (2 locking)
Electronic matchless ignition
SoftStart ignition system slowly increases oil temperature at startup
ThreePass mechanism yields 60 percent cooking efficiency and 72 percent thermal efficiency
Idle temperature setting maintains set temperatures outputting 5,575 BTUs per hour
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Solid-state Digital Controls





Operating temperature range: 200-390 degrees F
Temperatures can be displayed in Fahrenheit or Celsius
Cooks with compensating time or actual time
3 melt modes
2 countdown timers
Automatic boil-out mode

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by LP gas
Includes 120-volt cord and NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
267.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 267.00
