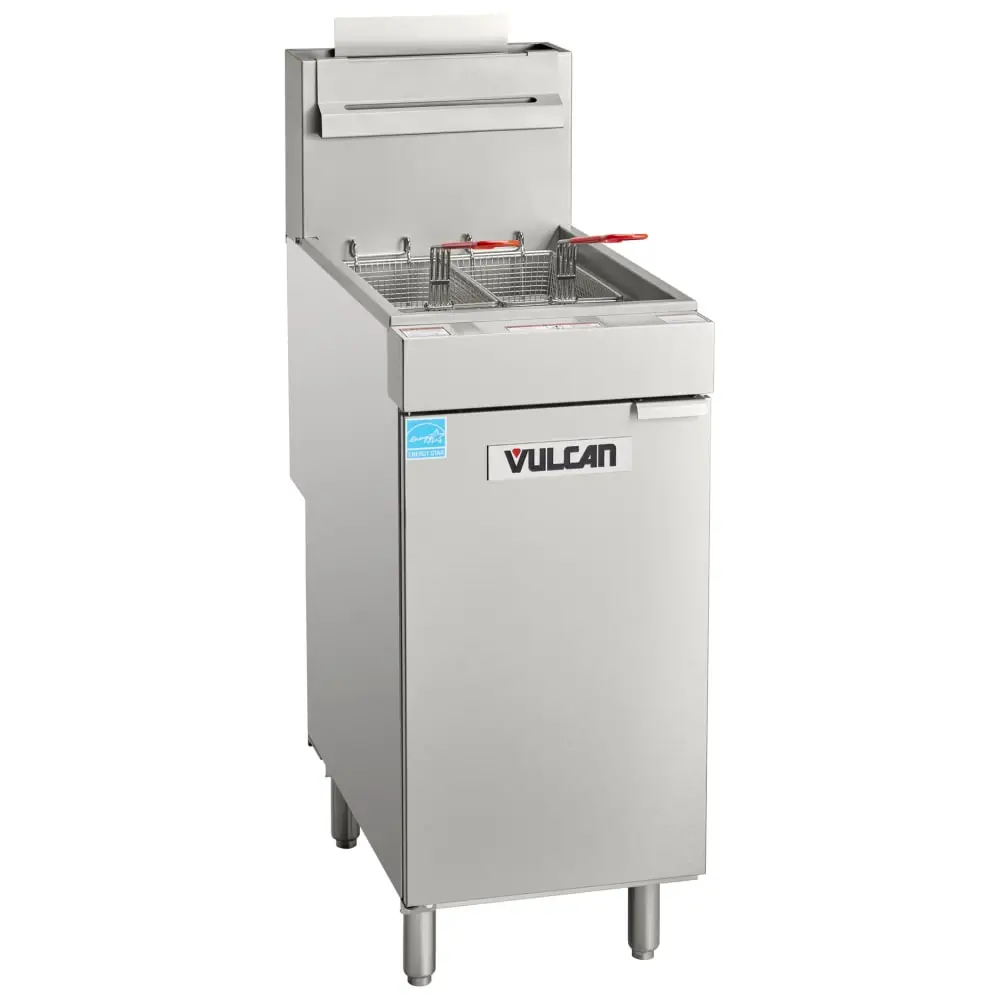

Vulcan 1VEG35M Gas Fryer - (1) 40 Lb Vat, Floor Model, Natural Gas

The Vulcan 1VEG35M freestanding entry-level gas fryer features a 14-inch-wide by 14-inch-deep tank that accommodates 35 to 40 pounds of shortening so staff can fry shrimp, fish, chicken, tofu, and vegetables. The included twin fry baskets ensure foods remain in place as they're fried, and their plastic-coated handles ease basket transportation while protecting users from burns. Operators can set the unit's temperature from 200 to 400 degrees Fahrenheit using the snap-action millivolt thermostat control, which is located behind the front stainless steel door. To maximize heat transfer throughout the oil, it's built with three exchanger tubes. If the unit's heat is out of the set range, the high-temperature limit control shuts off the gas supply to the main burners and standing pilot. A large cold zone beneath the burner tubes provides a place for sediment to settle without burning, which could affect the oil's taste.
To withstand high-volume back-of-house use, the Vulcan 1VEG35M commercial gas fryer's fry tank and door are made of stainless steel, while the sides and back are coated with a high-grade G90 galvanized finish that resists corrosion. The front door provides access to the cabinet, and to ensure it's closed during use, it's built with an Earth magnet. Its 34 5/8-inch working height promotes user comfort, while its four nickel-plated legs can be raised or lowered to stabilize the unit on uneven surfaces to reduce rocking and wobbling. Overall, this fryer measures 15 1/2 inches wide by 29 3/4 inches deep by 46 5/8 inches tall and requires a 6-inch clearance on the sides and backa€”great for kitchens with limited space.

Product Details





Part of the VEG series
Frypot capacity: 40 lbs. of oil
Stainless steel fry tank with 3 exchanger tubes
Large cold zone beneath burners
Stainless steel reinforced door with Earth magnet to ensure secure closure
Corrosion-resistant, high-grade G90 galvanized finish on sides and back
4 adjustable nickel-plated legs
Twin fry baskets with plastic-coated handles
Stainless steel basket hanger can be removed for cleaning
Snap-action millivolt thermostatic control located behind front door
Operating temperature range: 200-400 degrees F
Standing pilot doesn't require electric hook up
High-temperature-limit control
Built-in flue deflector
Nickel-plated tube rack
1 1/4-in. full-port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
70,000 BTU

Dimensions & Utilities





Tank: 14 in. W x 14 in. D
Overall: 15 1/2 in. W x 29 3/4 in. D x 46 5/8 in. H
Powered by natural gas
3/4-in. OD rear gas connection
1/2-in. ID service connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
40

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

Number of Fry Pots
1

Oil Capacity (lb)
40

Oil Capacity/Fryer (lb)
40

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
VEG Series

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
210.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 40
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
Number of Fry Pots: 1
Oil Capacity (lb): 40
Oil Capacity/Fryer (lb): 40
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: VEG Series
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 210.00
