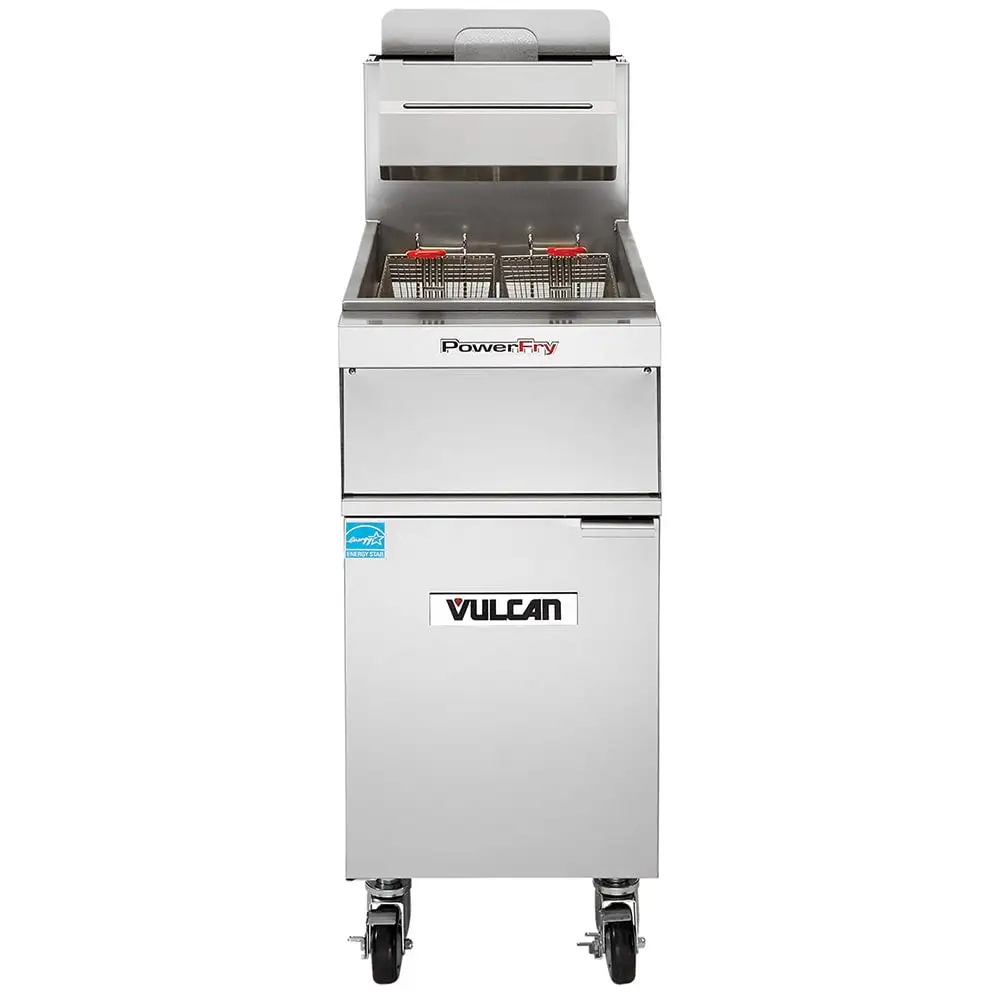

Vulcan 1VK45AF Gas Fryer - (1) 50 Lb Vat, Floor Model, Natural Gas

Because the Vulcan 1VK45AF commercial gas fryer is part of the PowerFry5® collection, it's built with a FivePass® heat transfer system that uniformly distributes heat throughout the cooking oil to minimize cooking time and reduce the lag that corresponds with recovery. Its 14-inch-wide by 14-inch-deep frypot accommodates 50 pounds of oil, and operators can set the unit's temperature from 200 to 390 degrees Fahrenheit with the solid-state analog control located behind the front door. To make use of solid shortening, users can choose from multiple fat-melt modes. The SoftStart® mechanism ensures the fryer gradually heats oil, outputting 35,000 BTUs per hour to minimize the risk of scorching. When the fryer reaches the set temperature, the idle temperature setting only outputs 4,251 BTUs to conserve energy.

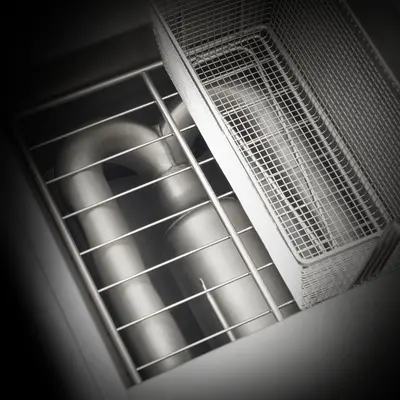

To prolong the oil's life, this commercial fryer is built with a V-shaped cold zone beneath the burners. Sediment can settle in the cold zone, and because its temperatures are cooler than the vat's surface, debris is less likely to burn and impact oil quality. The KleenScreen PLUS® filtration system's pump and motor can be activated with the push of a button. This system's stainless steel mesh filter screen filters from its two sides, creating a filtration area from 270 to 350 square inches to enhance oil quality, color, and taste. Operators can flip on the drain valve interlock switch to turn off the gas burners as oil is drained. The filter system's 18-gauge stainless steel filter pan can be removed and sanitized in a dishmachine after use. To further simplify cleaning, this fryer includes a clean-out rod and tank brush.

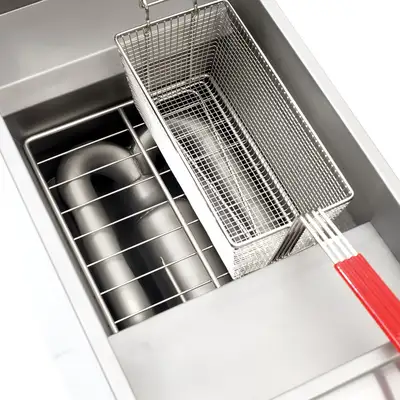

The Vulcan 1VK45AF LP-gas-powered fryer measures 15 1/2 inches deep by 30 1/8 inches deep by 47 1/8 inches tall and features a 36 1/4-inch working height. Its cabinet and frypot are made of durable stainless steel for lasting corrosion resistance and simplified cleaning. Staff can transport this fryer to different areas for cleaning or maintenance because it's positioned on four 6-inch castersa€”two of which include locks. Twin fryer baskets come with this unit to simplify transporting chicken, fish, okra, and french fries into the vat. Their plastic-coated handles reduce heat transfer to enhance staff safety.

Product Details





Part of the PowerFry5 collection
Frypot accommodates 50 lbs. of oil
Electronic matchless ignition
Operating temperature range: 200-390 degrees F
Solid-state analog control knob located behind the front door
Different fat-melt modes
SoftStart ignition system outputs 35,000 BTUs per hour to save energy
FivePass mechanism maximizes heat transfer to reduce recovery time
Idle temperature setting maintains set temperatures while outputting only 4,251 BTUs per hour
Flue temperatures remain below 500 degrees Fahrenheit at the unit's maximum production rate
Hi-limit shutoff
Freestanding model with 36 1/4-in. working height
Stainless steel cabinet and frypot
Twin fryer baskets with plastic-coated handles
Includes tank brush and clean-out rod for cleaning
1 1/4-in. port ball-type drain valve
Equipped with (4) 6-in. casters (2 locking)
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
70,000 BTU

Filtration System Details





1-touch button activates motor and pump
Drain valve interlock switch
Stainless steel mesh filter screen filters from 2 sides
Filtration area: 270-350 sq. in.
Boil Out By-Pass® mechanism eliminates boil-out solution
Dishwasher-safe, lightweight 1-piece filter pan accommodates 70 lbs. of oil
8-GPM flow rate for motor and pump
Hands-free oil-return tube

Dimensions & Utilities





Tank: 14 in. W x 14 in. D
Overall: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
230.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 230.00
