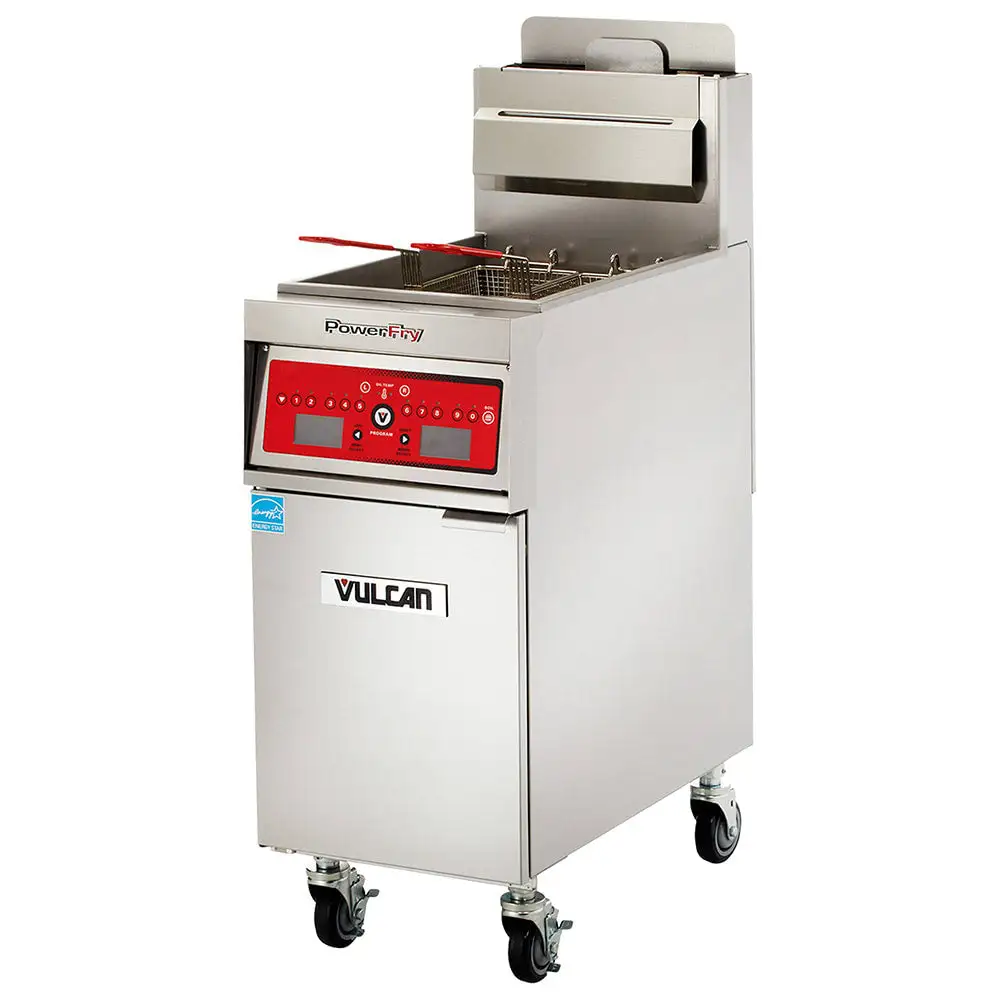

Vulcan 1VK45CF Gas Fryer - (1) 50 Lb Vat, Floor Model, Liquid Propane

The Vulcan 1VK45CF PowerFry5® commercial floor-model fryer is a 50-pound-capacity unit powered by LP gas, and it can output 70,000 BTUs per hour. While its FivePass® thermal transfer system evenly distributes heat to minimize lag times associated with recovering lost heat, the SoftStart® feature only outputs 35,000 BTUs per hour to minimize energy consumption and gradually heat oil. With the programmable computer controls, users can adjust temperature from 200 to 390 degrees Fahrenheit, upload 10 menu timers, select from three melt cycles, and set 10 countdown timers. Once the unit reaches the set temperature, the idle temperature setting maintains this temperature by only outputting 4,251 BTUs per hour.
The 14-inch-wide by 14-inch-deep fry tank includes twin fryer baskets to simplify lowering foods into a vat and retrieving them from hot oil. Their plastic handles minimize heat transfer to enhance user safety. For quality preservation, a V-shaped cold zone built beneath the burners collects debris and sediment and prevents them from burning. To further extend the oil's life, this fryer is built with the KleenScreen PLUS® filtration system, which can be activated with the push of a button. This system features a stainless steel mesh filter screen that filters particulates from two sides, and its 8-gallon-per-minute flow rate expedites the filtration process. Its 18-gauge stainless steel filter pan can hold 70 pounds of fry compound, and it's safe to sanitize in a dishmachine after use.
Great for kitchens with limited space, the Vulcan 1VK45CF high-efficiency gas fryer measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches tall and has a 36 1/4-inch working height. Because it's positioned on four 6-inch castersa€”two of which include locksa€”it's simple to transport for cleaning or maintenance. Its durable stainless steel cabinet and frypot resist corrosion to prolong their service life through repeated back-of-house use.

Product Details





Part of the PowerFry5 series
50-lb.-capacity frypot
Electronic matchless ignition
SoftStart ignition system outputs 35,000 BTUs per hour to save energy and gradually warm oil
FivePass mechanism yields 78 percent thermal efficiency and 66 percent cooking efficiency
Idle temperature setting maintains heat while outputting only 4,251 BTUs per hour
Flue temperature doesn't exceed 500 degrees Fahrenheit, even at the unit's maximum production rate
Hi-limit shutoff
Freestanding model
36 1/4-in. working height
Stainless steel cabinet and frypot
Twin fryer baskets with plastic-coated handles minimize heat transfer
Includes tank brush and clean-out rod for cleaning
1 1/4-in. port ball-type drain valve
Equipped with (4) 6-in. casters (2 locking)
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
70,000 BTU

Computer Control System





Programmable computer controls with digital character display
Operating temperature range: 200-390 degrees F
Temperature display in Fahrenheit or Celsius
10 menu timers
USB interface enables offline programming
3 melt modes

Filtration System Details





1-touch button activates motor and pump
Stainless steel mesh filter screen filters from 2 sides
Filtration area: 270-350 sq. in.
Drain valve interlock switch
Boil Out By-Pass® mechanism removes boil-out solution
Dishwasher-safe, lightweight 1-piece filter pan with 70-lb. oil capacity
8-GPM flow rate for motor and pump
Hands-free oil-return tube

Dimensions & Utilities





Tank: 14 in. W x 14 in. D
Overall: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
230.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 230.00
