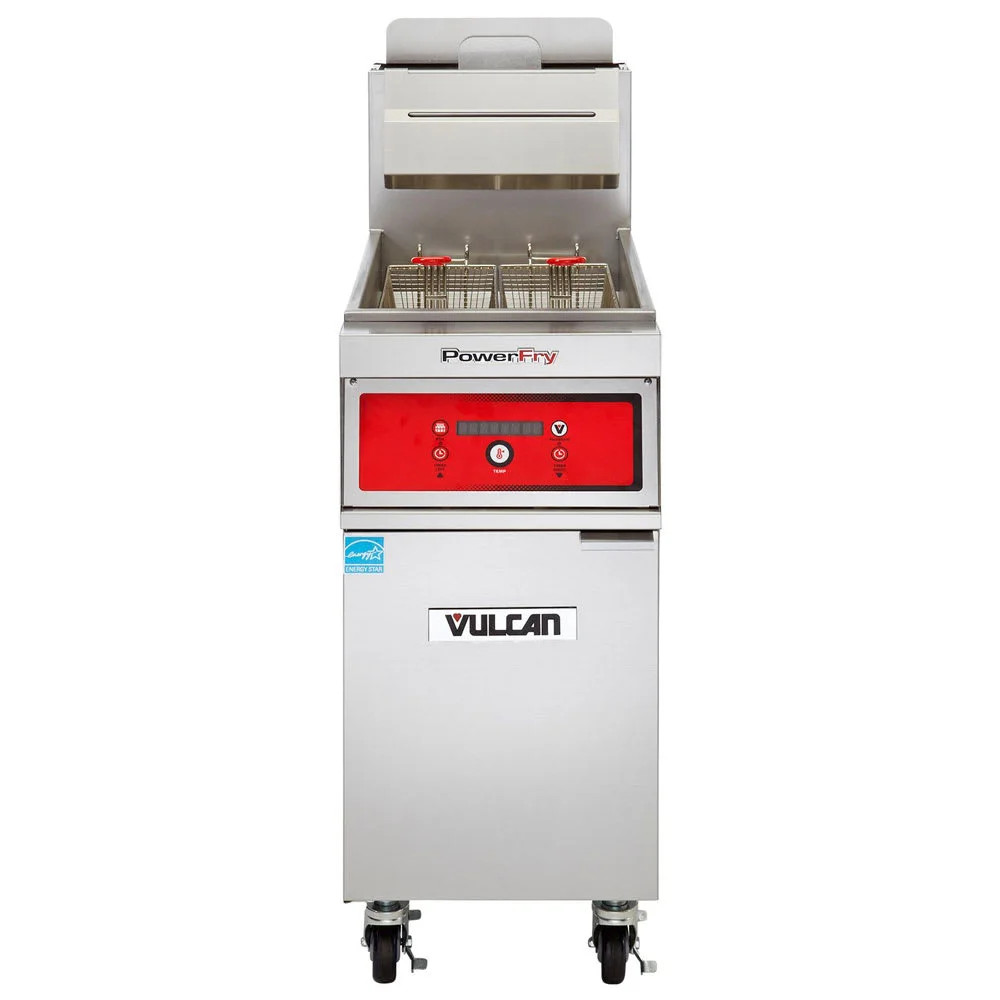

Vulcan 1VK45D Gas Fryer - (1) 50 Lb Vat, Floor Model, Liquid Propane

The Vulcan 1VK45D fryer operates with one vat using liquid propane. While this freestanding fryer produces 70,000 BTUs an hour, it features an idle mode that maintains the set temperature with a 4,251 BTU hourly rate. For additional energy preservation, its SoftStart® ignition lengthens oil life by slowly warming oil at startup, preventing scorching and putting out 35,000 BTUs per hour. This unit has a 14-inch-wide by 14-inch-deep oil tank that can hold 50 pounds of oil. Operators can utilize this fryer's 6 1/2-inch-wide by 13 1/4-inch-deep by 6-inch-high twin baskets that feature integrated plastic handles for efficient, safe cooking. It maintains a set temperature between 200 and 390 degrees Fahrenheit and is operated with a solid-state digital control that features three melt cycles.
Overall, this heavy-duty Vulcan 1VK45D gas fryer measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches high. Its cabinet and fry tank are constructed of stainless steel for reliable durability in aggressive settings in addition to corrosion resistance. For effortless oil dispersal and removal, it has a 1 1/4-inch drain valve, and for precise sanitation, it includes a tank brush and clean-out rod. To ease transportation on flat or irregular floor surfaces, it sits on a set of four 6-inch casters for operation without being moved or jostled because two of these casters sport locks.

Product Details





Part of the PowerFry5® series
Capacity: 50 Ibs.
Twin baskets with plastic-coated handles
FivePass® heat transference system evenly distributes heat
Electronic SoftStart ignition slowly warms oil
Frypot and cabinet made of stainless steel
1 1/4-in. full port ball type drain valve
Attached to (4) 6-in. adjustable casters (2 feature locks)
Creates a 36 1/4-in. working height
Idle mode maintains set temperatures at just 4,251 BTUs per hour
Hi-limit shutoff
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
70,000 BTUs

Solid-state Digital Control





Electronic ignition
Can be set between 200 and 390 degrees F
3 melt cycles
Automatic-boil out mode
2 countdown timers
Compensating time and actual time cooking options
Digital display in Fahrenheit or Celsius

Dimensions & Utilities





Fry tank: 14 in. W x 14 in. D
Fry basket:(2) 6 1/2 in. W x 13 1/4 in. D x 6 in. H
Overall: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
Operates with liquid propane

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Special Features
High Efficiency

Special Features
Melt Cycle

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
201.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Special Features: High Efficiency
Special Features: Melt Cycle
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 201.00
