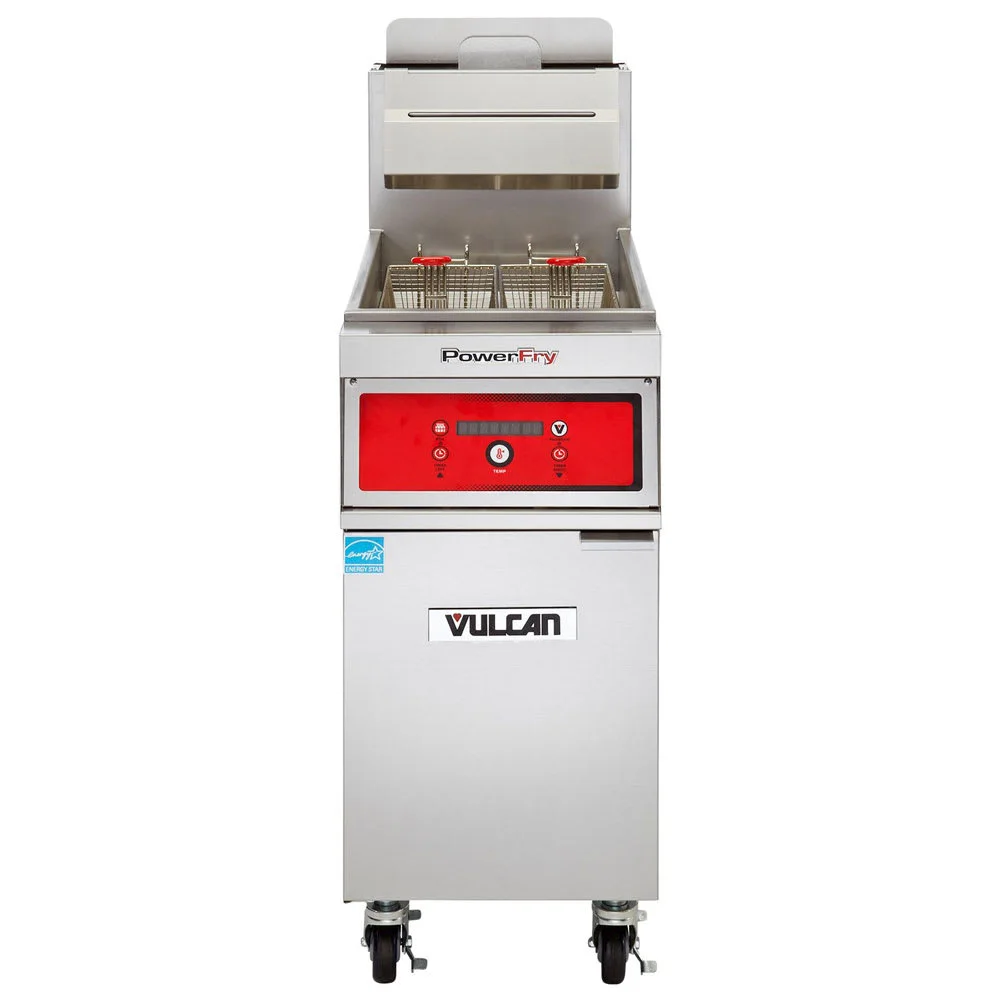

Vulcan 1VK45D Gas Fryer - (1) 50 Lb Vat, Floor Model, Natural Gas

The Vulcan 1VK45D gas fryers measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches high. Great for intense kitchens, it's made of stainless steel for increased durability and resistance to rust and corrosion. It has a 14-inch-wide by 14-inch-deep fry tank that can hold as much as 50 pounds of oila€”ideal for frying fish, okra, and onion rings among other items. With its integrated 1 1/4-inch full-port drain valve, it eases oil removal and simplifies cleaning. Because this unit sits on four 6-inch casters, two swivel with locking mechanisms and two non-locking, it can be quickly moved out of the way to clean the floor beneath it or when maintenance is required.
The 1VK45D gas fryer integrates two 6 1/2-inch-wide by 13 1/4-inch-deep by 6-inch-high fry baskets that securely contain the contents as they're submerged in or removed from oil. This fryer sports a solid-state digital control with three melting modes in addition to an auto-boil out mode that streamlines operation for users. Its temperature can be set to a level between 200 and 390 degrees Fahrenheit, and to conserve energy, its FivePass® heat transfer system evenly distributes heat. Additionally, its SoftStart® ignition system extends the life of each batch of oil, reducing upkeep and energy costs. Once the set temperature is reached, the idle mode maintains the heat level by using just 4,251 BTUs per hour.

Product Details





Part of the PowerFry5® series
50-lb oil capacity
Twin baskets sport plastic-coated handles
36 1/4 2. 1 1/4-in. full port ball type drain valve
3. (4) 6-in. adjustable casters (2 swivel & 2 non-locking)
4. Stainless steel construction cabinet and fry tank
5. Electronic SoftStart ignition slowly warms oil to extend its life
6. FivePass technology evenly disperses heat for 66 percent cooking efficiency and 78 percent thermal efficiency
7. Hi-limit shutoff mechanism
8. Idle mode maintains set temperature using just 4,251 BTUs per hour
9. 6-in. clearance required at sides and rear when placed near combustible construction
10. 16-in. minimum clearance to adjacent open-top burner units
11. 70,000 BTU

Solid-state Digital Controls





Electronic ignition
Temperature range: 200-390 degrees F
3 melt cycles
2 countdown timers
Auto-boil out mode
Digital display can be set to Fahrenheit or Celsius
Option to cook with compensating time or actual time

Dimensions & Utilities





Fry tank: 14 in. W x 14 in. D
Fry basket:(2) 6 1/2 in. W x 13 1/4 in. D x 6 in. H
Overall: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
Powered by natural gas

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Special Features
High Efficiency

Special Features
Melt Cycle

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
201.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Special Features: High Efficiency
Special Features: Melt Cycle
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 201.00
