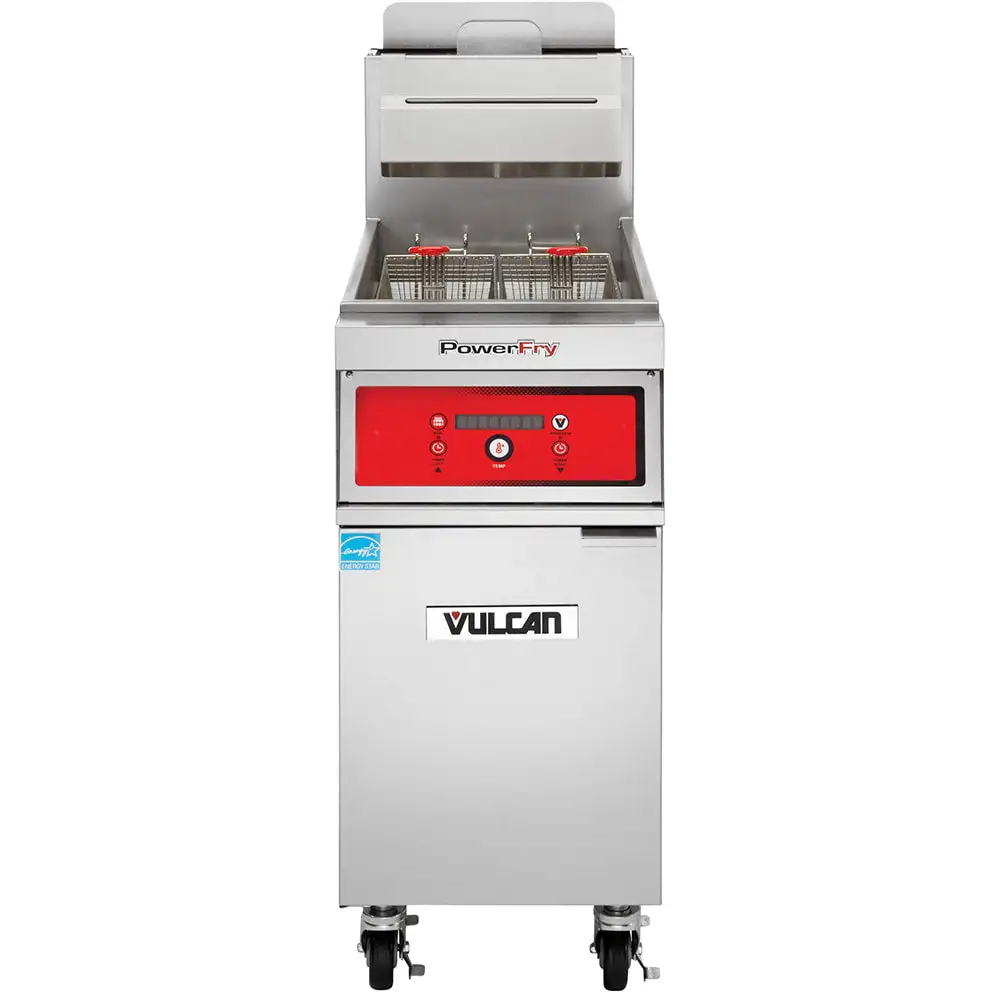

Vulcan 1VK45DF Gas Fryer - (1) 50 Lb Vat, Floor Model, Natural Gas

The Vulcan 1VK45DF gas fryer sports one vat capable of holding 50 pounds of oil to produce high volumes of fried chicken, onion rings, and french fries. It utilizes a KleenScreen PLUS® filtration system to remove food debris and particulates, extending the efficiency of each batch of oil. This unit includes two 6 1/2-inch wide by 13 1/4-inch-deep by 6-inch-high twin baskets, each with a plastic-coated handle to protect hands from extreme heat. This unit can be set to a temperature between 200 and 390 degrees Fahrenheit using the integrated solid-state digital control that provides three melt modes. To ease use during operation, it has two countdown timers and an auto-boil mode; with its Five Pass&trade ignition, it produces energy-efficient heat transfer, yielding 66 percent cooking and 78 percent thermal efficiency.
Overall, the Vulcan 1VK45DF NG gas fryer measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches high. For simple cleaning and increased durability, its cabinet and fry tank is constructed of stainless steel. Furthermore, its 1 1/4-inch full port ball type drain valve ensures efficient dispersal of oil from the 14-inch-wide by 14-inch-deep fry tank. For easy placement on level or irregular floors, it's mounted on four 6-inch adjustable casters, two of which can be locked in place to stop the unit from moving while in use.

Product Details





Part of the PowerFry5® series
50-lb. frypot
Twin baskets featuring plastic coat handles
Electronic SoftStart® ignition slowly warms oil to prevent scorching
Stainless steel cabinet and fry tank
Set of (4) 6-in. adjustable casters (2 swivel & 2 non-locking)
Establishes 36 1/4 in. working height
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
FivePass® heat transfer system
Freestanding unit
Hi-limit shutoff
1 1/4-in. full port ball type drain valve
70,000 BTU

Solid-state Digital Controls





Electronic ignition
Temperature control: 200-390 degrees F
Displays in Fahrenheit or Celsius
3 melt modes
2 countdown timers
Auto-boil out mode
Cooks with compensating time or actual time

Filtration System





Push-button activated motor and pump
Drain valve interlock switch shuts off burners during oil draining
18-ga. stainless steel filter pan with 70-lb. capacity
Stainless steel mesh filter screens from 2 sides to create 270-sq-in. filter area
Motor and pump circulate oil at 8 GPM
Oil-return tube is hands free

Dimensions & Utilities





Fry tank: 14 in. W x 14 in. D
Fry basket:(2) 6 1/2 in. W x 13 1/4 in. D x 6 in. H
Overall: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
7.0 A, 1/3 HP
115 V/60 HZ/1 ph, cord with NEMA 5-15P plug
Powered by natural gas

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
230.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 230.00
