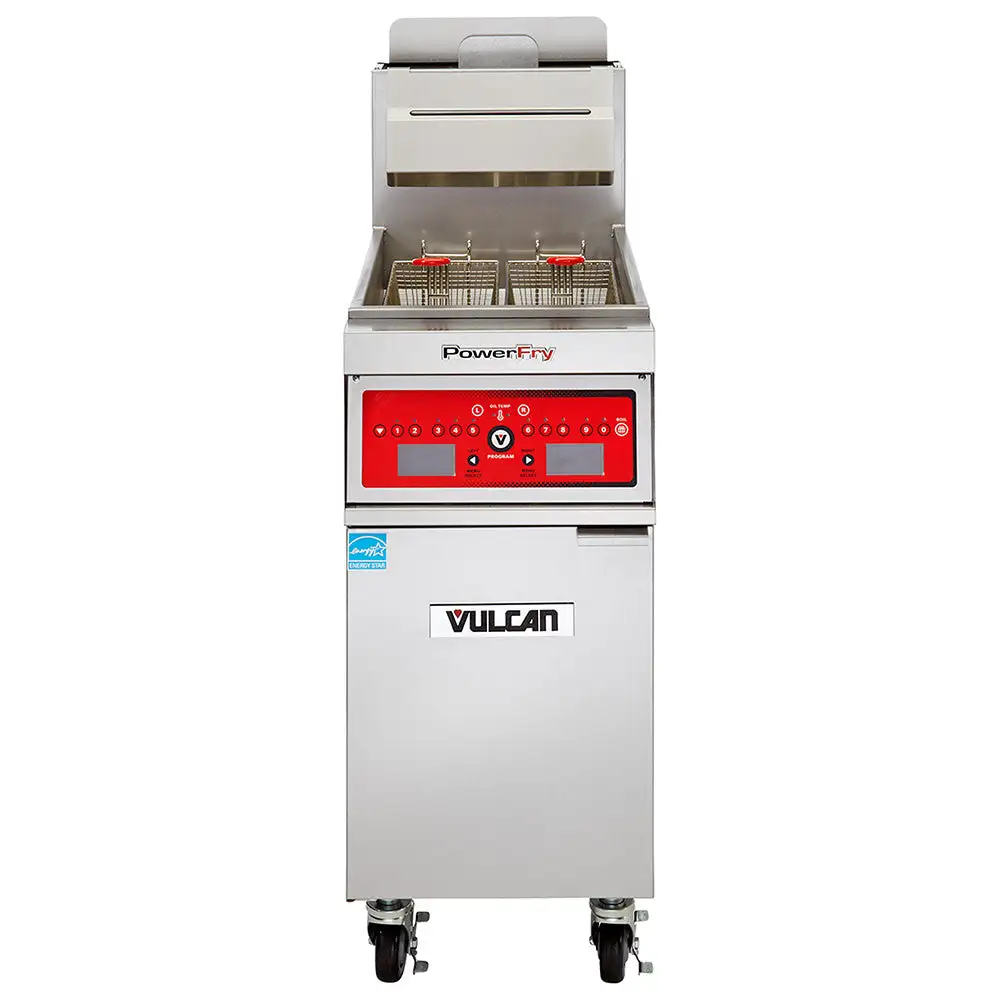

Vulcan 1VK65A Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

Great for conserving energy during operation, the Vulcan 1VK65A gas fryer outputs 80,000 BTUs while utilizing its FivePass® heat transfer system that yields 78 percent thermal efficiency and 68 percent cooking efficiency. Additionally, this fryer features SoftStart® ignition that extends oil life by slowly warming oil during initial startup, preventing burning or scorching. Once the set temperature is reached, the idle setting maintains it using just 4,802 BTUs per hour. This unit can be set between 200 and 390 degrees Fahrenheit and is controlled with solid-state analog knob controls, which also feature user-selectable fat-melt modes. Because it runs on liquid propane, it heats quicker than natural gas alternatives.
Overall, the Vulcan 1VK65A gas fryer measures 21 inches wide by 30 1/8 inches high by 47 1/8 inches deep with an integrated 19 1/2-inch-wide by 14-inch-deep fry tank capable of holding 70 pounds of oil. Users can utilize the twin fry baskets that sport plastic-coated handles, easing removal from or insertion to oil by minimizing heat transfer to palms. Made of stainless steel, it's durable and corrosion resistant; it also includes a 1 1/4-inch full port drain valve, tank brush, and clean-out rod to ease maintenance. For maneuverability, it sits on a set of four 6-inch casters, two of which can be locked in place when needed.

Product Details





Part of the PowerFry5® series
70-lb. oil capacity
Twin baskets feature plastic handles to minimize heat transfer
SoftStart ignition gradually warms oil to prevent scorching
Idle mode maintains set temperatures at just 4,802 BTUs per hour
FivePass heat transference system evenly disperses heat
Stainless steel cabinet and frypot
Tank brush and clean out rod
1 1/4-in. full port ball type drain valve
(4) 6-in. adjustable casters (2 lock)
Hi-limit shutoff mechanism
Working height of 36 1/4 in.
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Solid-state Analog Controls





Electronic ignition
Temperature can be set between 200 and 390 degrees F
User-selectable fat-melt mode
Behind cabinet door

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 14 in. D
Fry basket: (2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Powered by LP gas

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
237.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 237.00
