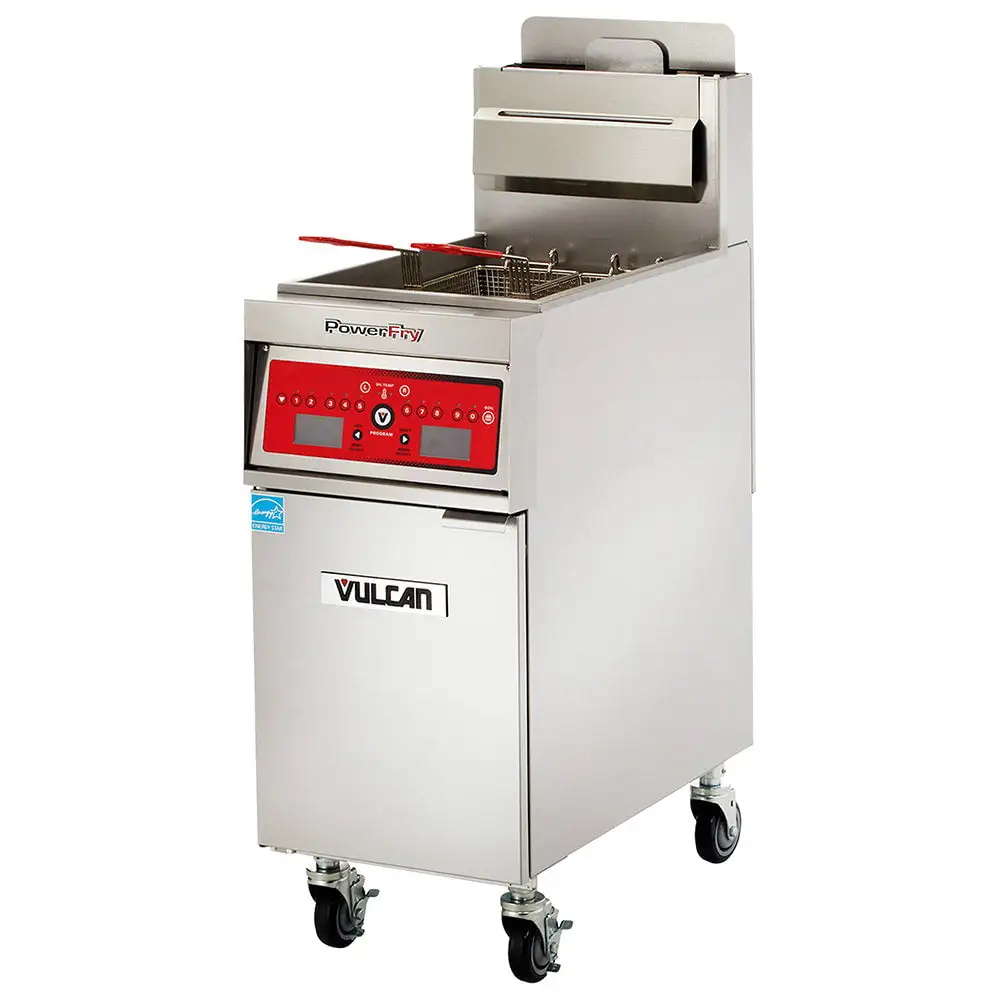

Vulcan 1VK65AF Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas

For frying breaded chicken breasts, legs, and wings, the Vulcan 1VK65AF gas fryer features a 19 1/2-inch-wide by 14-inch-deep frypot and includes two 9 1/4-inch-wide by 13 1/4-inch-deep by 6-inch-high fry baskets. This frypot can hold 70 pounds of oil, and because of the integrated KreenScreen PLUS® filtration, oil quality is extended over time. This fryer unit maintains temperatures between 200 and 390 degrees Fahrenheit and is operated with solid-state analog controls that feature user-selected melt cycles, ensuring heating elements don't overheat during long periods of operation.
While this fryer outputs 80,000 BTUs per hour, it sports a FivePass® heat transfer system that promotes even heating for efficient, high-quality cooking. Its SoftStart® ignition system slowly warms oil at startup, extending the life over frequent use with lower BTU output and energy use. Once it reaches the set temperature, it features a mode that maintains the temperature while outputting just 4,802 BTUs per hour.
The Vulcan 1VK65AF gas fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high and is made of stainless steel for additional durability and corrosion resistance. Great for thriving in greasy environments, this unit integrates a 1 1/4-inch full-port ball type drain valve to quickly remove dirty oil; it also features a tank brush and clean-out rod to aid in the cleaning process. To maneuver this fryer with ease, it stands on a set of four 6-inch casters, two of which lock to stabilize the unit during use.

Product Details





Part of the Power Fry® series
Frypot can hold 70 lbs. of oil
Twin baskets feature plastic-coated handles
FivePass system evenly disperses heat
SoftStart ignition slowly heats oil to reduce risk of scorching
Frypot and cabinet made of stainless steel
1 1/4-in. full port ball type drain valve
2 of (4) 6-in. adjustable casters feature locks
Hi-limit shutoff mechanism
36 1/4-in. working height
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Solid-state Analog Controls





Electronic ignition
Temperature range: 200-390 degrees F
User-selectable fat-melt modes
Located behind cabinet door

Filtration System - Tank brush and clean out rod





Stainless steel mesh filter filters from 2 sides for a 270-sq.-in. filter area
Push-button activated motor and pump
110-lb oil capacity filter pan is made of stainless steel
Pump and motor circulate oil at 8 GPM
Oil-return tube enables hands-free use
Drain valve interlock switch shuts down burners when oil drains

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 14 in. D
Fry basket: (2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Operates with natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
380.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 380.00
