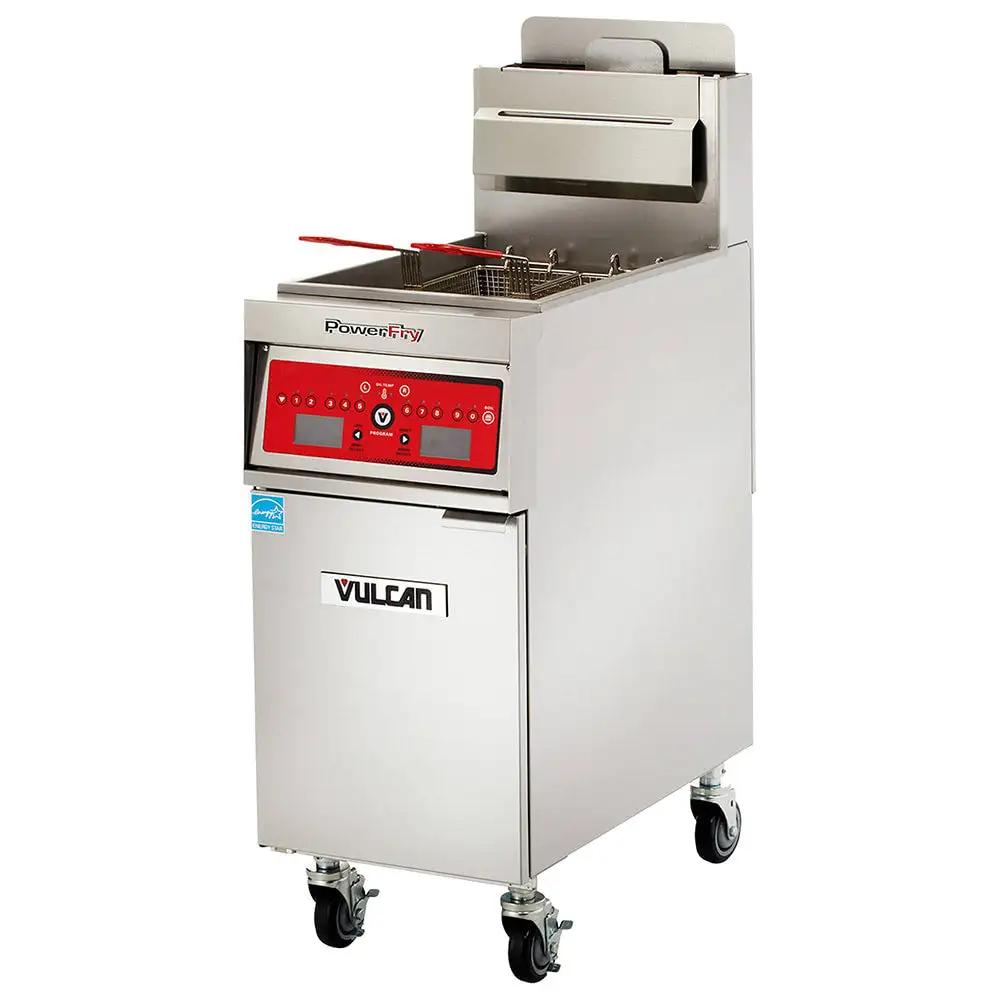

Vulcan 1VK65AF Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

The Vulcan 1VK65AF gas fryer can hold up to 70 pounds of oil and features a KleenScreen® filtration system to extend the oil life over time. This system is push-button activated, and its motor and pump circulate oil at 8 gallons per minute. To establish a filter area of 270 square inches, it features a stainless steel mesh screen that filters from two sides. This unit can be set to a specific temperature between 200 and 390 degrees Fahrenheit using the solid-state analog controls. For use with solid shortening, these controls include user-selectable fat-melt modes. It boasts a SoftStart® ignition system that slowly warms oil to prevent scorching, while the FivePass® heat system evenly distributes heat to oil to yield 78 percent thermal efficiency and 68 percent cooking efficiency.
Overall, the Vulcan 1VK65AF gas fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high. This heavy-duty unit is made of stainless steel and boasts a 19 1/2-inch-wide by 14-inch-deep fry tank that resists corrosion and residue left from grease and oil. To streamline cleaning after operation, its 1 1/4-inch full port ball type drain valve helps hasten oil removal, while the included tank brush and clean-out rod enable precise cleaning. For efficient transportation and mobility on any floor surfaces, it sits on a set of four 6-inch adjustable casters. Once it reaches an ideal location, two of its wheels can be locked to ensure stability during operation.

Product Details





Part of the Power Fry® series
70-Ib. oil capacity
Twin baskets feature plastic-coated handles
Energy saving SoftStart ignition system
FivePass® system evenly transfers heat
Stainless steel frypot and cabinet
(4) 6-in. adjustable casters
1 1/4-in. full port ball type drain valve
Hi-limit shutoff mechanism
Idle setting maintains set temperature using 4,802 BTUs per hour
Working height of 36 1/4 in.
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Solid-state Analog Controls





Electronic ignition
Can be set to temperatures between 200 and 390 degrees F
Fat-melt mode is user selected
Behind cabinet door

Filtration System





Stainless steel mesh filter works from 2 sides to establish a 270-sq.-in. filter area
Tank brush and clean out rod
Drain valve interlock shuts off burners during oil draining
Motor and pump circulate oil at 8 GPM
Hands-free oil-return tube
Motor and pump are button activated
Stainless steel oil pan sports 110-lb capacity

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 14 in. D
Fry basket:(2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by liquid propane
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
380.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 380.00
