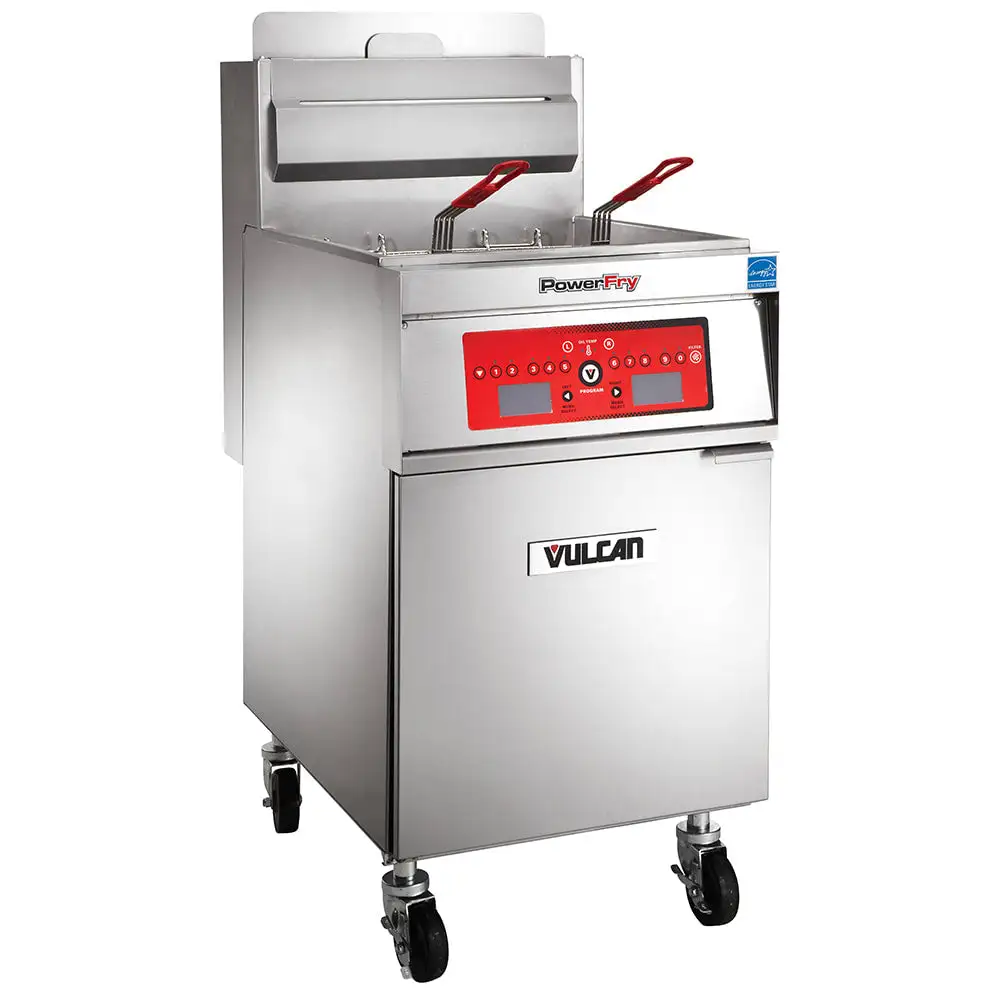

Vulcan 1VK65C Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

For high-intensity back-of-house operations, the Vulcan 1VK65C gas fryer is made of stainless steel and features a 19 1/2-inch-wide by 14-inch-deep fry tank that can hold 70 pounds of oil. To ease the process of preparing fried fish, chicken, and dumplings, its included 9 1/4-inch-wide by 13 1/4-inch-deep by 6-inch-high twin fry baskets feature plastic handles to minimize heat transfer to hands. This unit is powered by liquid propane and uses computer controls to maintain set temperatures between 200 to 390 degrees Fahrenheit; these controls also feature ten menu timers that display product names and cook times. It outputs 80,000 BTUs overall, though it utilizes a SoftStart® ignition the slowly warms oil and FivePass® heat transfer system that evenly disperses heat to conserve energy.
Overall, the Vulcan 1VK65C gas fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high and is mounted on four 6-inch casters that facilitate maneuvering. Two of the casters come with locking mechanisms, keeping the unit stable during operation. After business hours, employees can utilize its 1 1/4-inch full-port drain valve, tank brush, and clean-out rod to streamline cleaning.

Product Details





Part of the PowerFry5® series
70-lb oil capacity
Twin baskets featuring plastic-coated handles
Stainless steel frame, cabinet, and fry tank
Energy-efficient FivePass system transfers heat
SoftStart electronic ignition system slowly warms oil to prevent scorching
1 1/4-in. full port ball type drain valve
2 of (4) 6-in. adjustable casters feature locks
Idle mode maintains set temperatures using just 4,802 BTUs per hour
Hi-limit shutoff mechanism
Tank brush and clean-out rod included
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Computer Controls





Electronic ignition
Temperature control range: 200-390 degrees F
Features 10 menu timers that display product name and cook time
Offline programming of menu items through USB control interface
3 melt modes
Can cook with compensating time or actual time

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 14 in. D
Fry basket: (2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Powered by liquid propane
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
237.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 237.00
