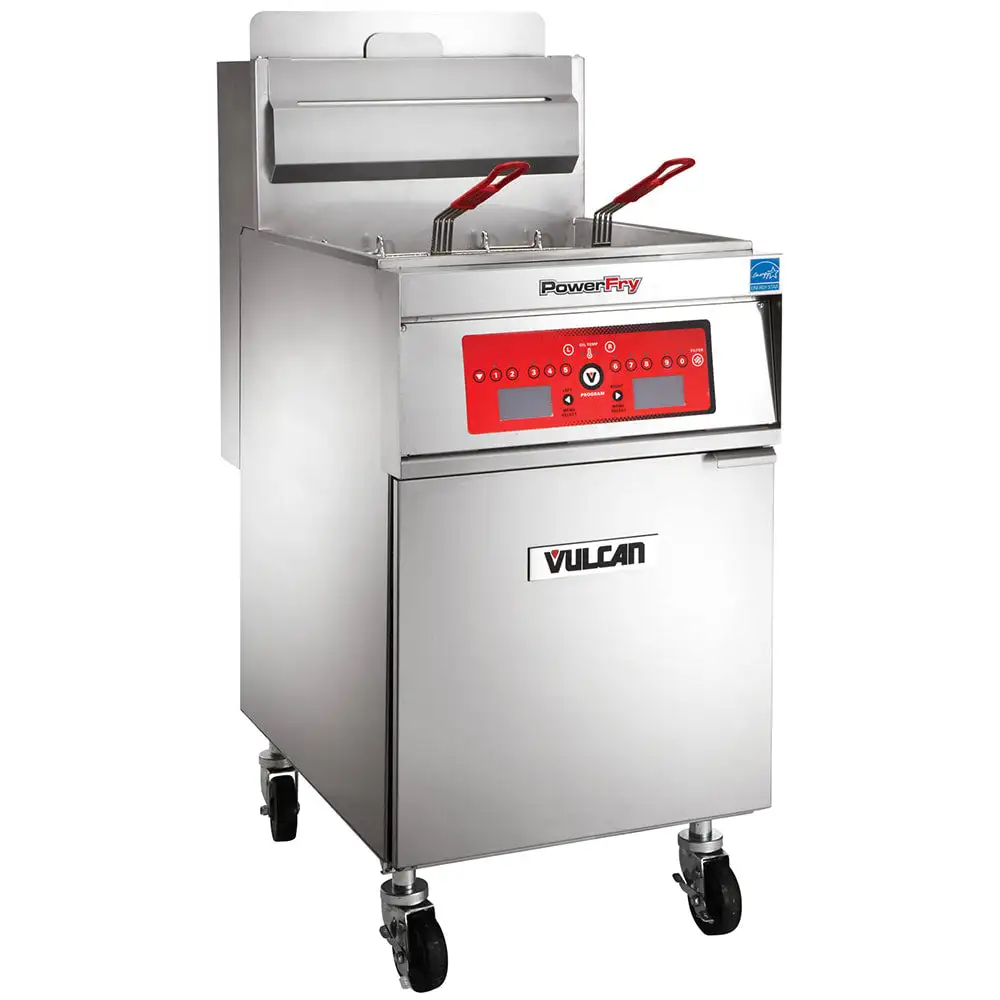

Vulcan 1VK65CF Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas

The Vulcan 1VK65CF gas fryer features a 19 1/2-inch-wide by 14-inch-deep fry tank that holds 70 pounds of oil and features the KleenScreen PLUS® filtration system to enhance efficiency. This filtration system features a two-side stainless steel mesh filter that creates a filter area of 270 square inches, while the 8-gallon-per-minute motor and pump are activated with the simple push of a button. To assist with cooking while ensuring employee safety, this tank can fit two 9 1/4-inch-wide by 13 1/4-inch-deep by 6-inch-high baskets, both of which sport plastic handles to reduce the risk of heat transferring to employee hands. Its temperature can be set between 200 and 390 degrees Fahrenheit using the computer controls, which also feature three fat melting modes and ten menu timers that display product names and cook times; these can be programmed offline using the USB interface.
Overall, the Vulcan 1VK65CF fryer outputs 80,000 BTUs, though it saves energy with a SoftStart® ignition system, which slowly heats oil using 35,000 BTUs per hour, and FivePass® heat transfer system that yields 78 percent thermal efficiency. This gas fryer measures 21 inches wide by 30 1/8 inches deep 47 1/8 inches high and is constructed of durable, corrosion-resistant stainless steel. For adept cleaning after intensive use, employees can utilize its 1 1/4-inch full-port ball drain valve, tank brush, and clean-out rod. Set on four 6-inch adjustable casters, it can be maneuvered on irregular or smooth surfaces, and two of these casters lock the unit in place when stabilization is needed.

Product Details





Part of the Power Fry® series
70-lb-capacity frypot
Twin baskets with coating of plastic on handles for user safety
SoftStart ignition system slowly warms oil for energy efficiency and burn prevention
FivePass efficient system evenly disperses heat
Frame, cabinet, and frypot made of stainless steel
1 1/4-in. full-port ball type drain valve
2 of (4) 6-in. adjustable casters feature locks for stabilization
36 1/4-in. working height
Hi-limit shutoff
Idle setting keeps set temperature at just 4,802 BTUs per hour
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Computer Controls





Electronic ignition
Operating temperature range: 200-390 degrees F
3 melting modes<
Displays product name and cook times of 10 menu items
Offline programming of menu items using USB interface
Digital display in Fahrenheit or Celsius
Can cook using compensating time or actual time

Filtration System





Drain valve interlock turns off burners while oil drains
Tank brush and clean-out rod included
8-GPM motor and pump are button activated
Stainless steel oil pan features 110-lb. capacity
Stainless steel mesh filter uses 2 sides to create 270-sq.-in. filter area
Hands-free oil-return tube

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 14 in. D
Fry basket: (2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Operates with natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
380.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 380.00
