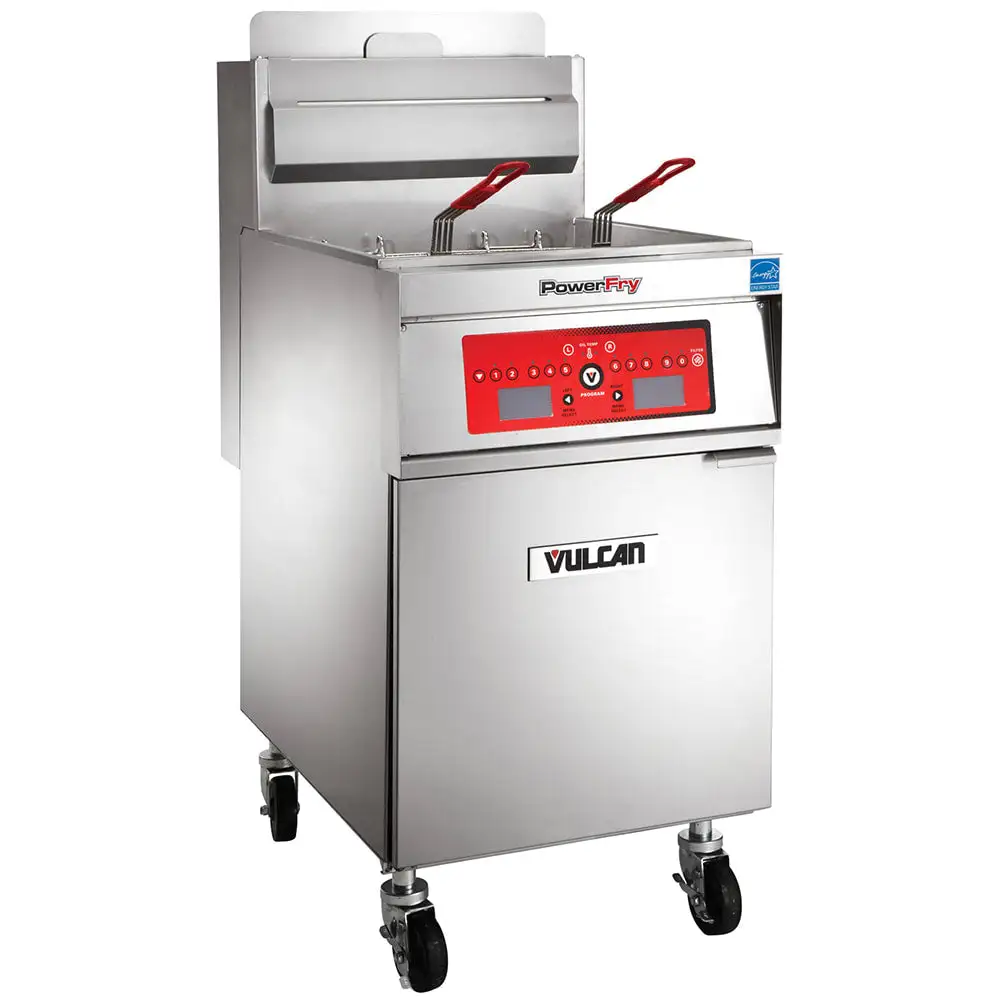

Vulcan 1VK65CF Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

The Vulcan 1VK65CF gas fryer sports a 19 1/2-inch-wide by 14-inch-deep fry tank that can hold as much as 70 pounds of oil. To ease operation while safeguarding employees, it has two 9 1/4-inch-wide by 13 1/4-inch-deep by 6-inch-high fry baskets capped with plastic handles, allowing easy insertion and removal of fried chicken, fish, and onion rings while reducing heat transfer to hands. It can be set to a temperature between 200 and 390 degrees Fahrenheit and, because it's programmable offline, users can set up ten menu timers, product displays, and cook times through a USB interface on the computer controls.
To prolong the oil's service life, this unit is equipped with the KleenScreen PLUS® filtration system, which utilizes a stainless steel oil pan that can hold as much as 110 pounds of oil. This system features a stainless steel mesh filter that filters from two sides to create a 270-square-inch filter area. The pump and motor are activated with the push of the button, causing them to circulate oil at a rate of 8 gallons per minute. Additionally, the drain-valve interlock switch shuts off the fryer's burners when oil is draining from the unit
Overall, the Vulcan 1VK65CF gas fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high and is constructed of stainless steel to provide durability with an industrial standard look that matches other back-of-house equipment. To ease cleaning processes, it includes a 1/4-inch ball drain to facilitate oil removal, while a tank brush and clean-out rod assist with precision. This heavy-duty model is placed on a set of four 6-inch casters, which eases maneuvering and transportation. Great for energy conserving purposes, its SoftStart® ignition extends oil life by slowly warming oil and reduces BTU production, while its FivePass® heat transfer system yields 78 percent thermal efficiency.

Product Details





Part of the Power Fry® series
Oil capacity: 70 lbs.
Twin baskets with plastic handles for user safety
FivePass system maximizes heat transfer
Energy-saving SoftStart ignition system gradually warms oil to prevent scorching
Stainless steel cabinet, body, and fry tank
Idle setting maintains set temperature at just 4,802 BTUs per hour
(4) 6-in. adjustable casters (2 locking)
1 1/4-in. full-port ball type drain valve
Working height: 36 1/4 in.
Hi-limit shutoff mechanism
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Computer Controls





Operating temperature range: 200-390 degrees F
Fahrenheit or Celsius digital display
10 menu timers display product name and cook time
Electronic ignition
Offline programming of menu items through USB interface
Option to cook with compensating time or actual time
3 melt modes

Filtration System





Tank brush and clean-out rod
2-sided stainless steel mesh filter creates 270-sq.-in. filter area
Activated with push button
Drain valve interlock shuts down burners during oil draining
8-GPM motor and pump
Oil-return tube is hands free
Stainless steel filter pan boasts 110-pound oil capacity

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 14 in. D
Fry basket: (2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by LP gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
380.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 380.00
