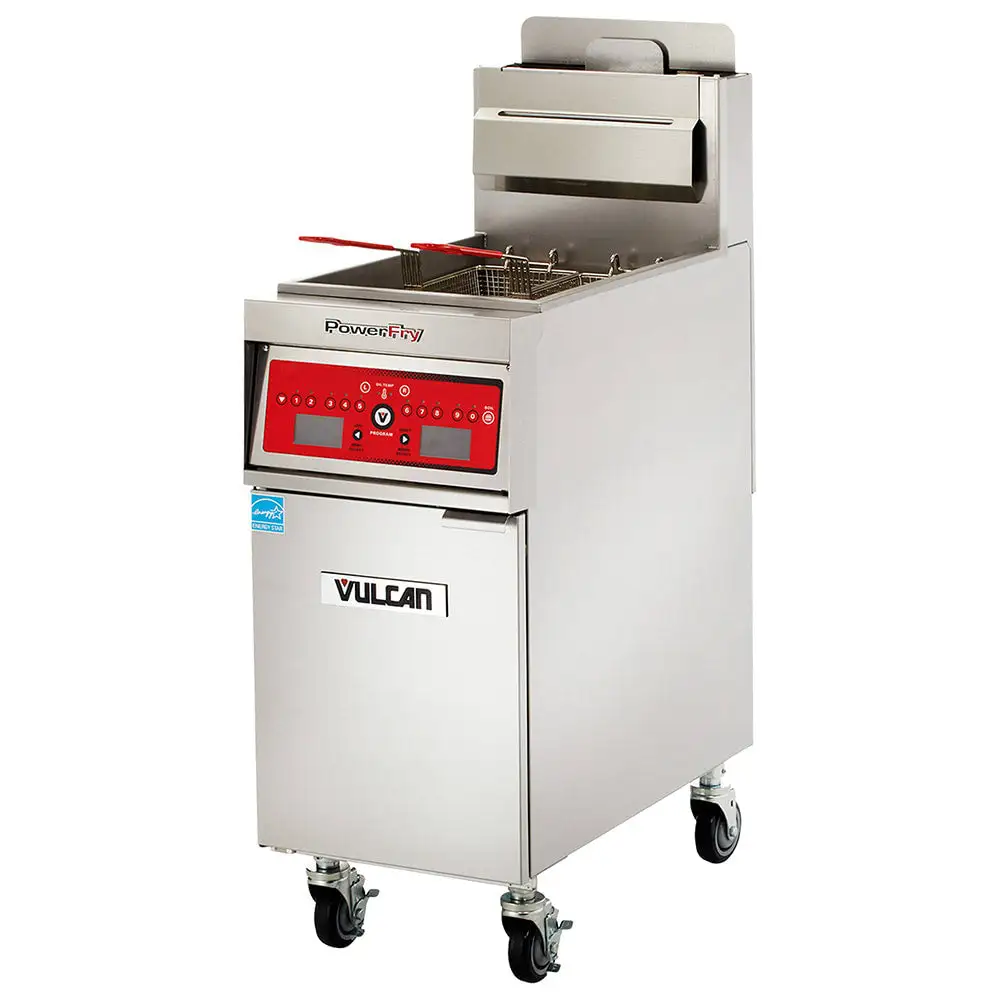

Vulcan 1VK65DF Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

Because the Vulcan 1VK65DF gas fryer has an integrated KleenScreen® filtration system, it maintains optimal oil conditions and reduces upkeep costs. It features one 19 1/2-inch-wide by 14-inch-deep fry tank that holds 70 pounds of oil, and because this unit comes with two 9 1/4-inch-wide by 13 1/4-inch deep fry baskets, it eases the process of submerging or removing chicken, okra, onion rings, and other breaded favorites. These baskets feature plastic-coated handles, which reduces the risk of operator injury caused by contact with heated metals. It maintains a set temperature between 200 and 390 degrees Fahrenheit and operates with solid-state digital controls. Additionally, it features three possible melt cycles to keep heating elements from overheating through extended use.
Overall, this fryer unit outputs 80,000 BTUs, though it boasts an electronic SoftStart® ignition and FivePass® heat transfer system, both of which help conserve energy and maintain oil life. This heat transfer system produces 68 percent cooking efficiency and 78 percent thermal efficiency. For additional energy preservation, during downtime, it can maintain idle temperatures while producing just 4,802 BTUs an hour. It operates using liquid propane, which heats more quickly than natural gas alternatives.
The Vulcan 1VK65DF gas fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high and sits on four 6-inch casters that ease maneuvering on back-line kitchen floors. To keep the unit stable during use, two of its casters are built with locking mechanisms. It's stainless steel construction resists corrosiona€”ideal for frequent use in high-intensity cooking environments. While this unit is great in heavy-grease settings, to ease cleaning processes it includes a 1 1/4-inch full-port ball type drain valve, tank brush, and a clean-out rod.

Product Details





Part of the PowerFry5® series
70-lb. oil capacity
Twin baskets featuring plastic-coated handles
FivePass heat transfer system disperses heat in an even manner
SoftStart ignition slowly warms oil for scorch prevention
Stainless steel frypot, frame, and cabinet
1 1/4-in. full port ball type drain valve
Set of (4) 6-in. adjustable casters (2 swivel & 2 non-locking)
Idle mode preserves set temperatures at reduced energy use
Hi-limit shutoff mechanism
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Solid-state Digital Controls





Electronic ignition
Can be set between 200 and 390 degrees F
3 melt cycles
2 countdown timers
Automatic-boil out mode
Displays temperature in Fahrenheit or Celsius
Can cook with compensating time or actual time

Filtration System





Tank brush and clean-out rod
Stainless steel oil pan boasts 110-lb capacity
Push-button activated
8-GPM pump and motor
Stainless steel mesh filter filters from 2 sides to establish 270-sq.-in. filter area
Drain valve interlock shuts down burners while oil drains
Oil-return tube is hands free

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 14 in. D
Fry basket: (2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/ 1 ph, cord with NEMA 5-15P plug
Liquid propane
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
380.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 380.00
