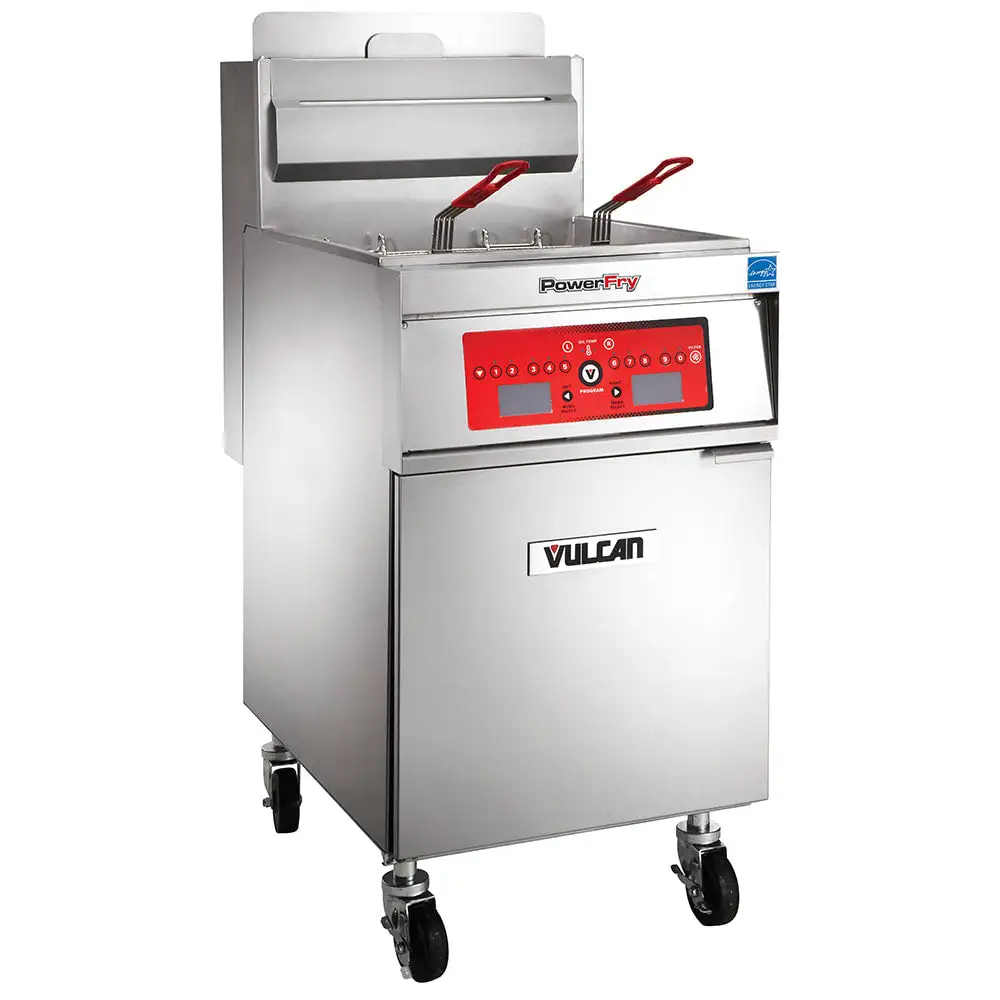

Vulcan 1VK65C Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas

The Vulcan 1VK65C gas fryer has twin 9 1/4-inch-wide by 13 1/4-inch-deep by 6-inch-high baskets, and features a 19 1/2-inch-wide by 14-inch-deep frypot with a 70-pound oil capacity. Freestanding, this fryer maintains a set temperature range between 200 and 390 degrees Fahrenheit with programmable computer controls that feature three selectable melt modes in addition to 10 menu timers with product name and cook time. It's powered using natural gas, and to conserve and reduce energy production, its SoftStart® ignition system extends oil life. It also features a FivePass® heat system that yields 78 percent thermal efficiency and 68 percent cooking efficiency.
Made of stainless steel, the 1VK65C gas fryer is durable and resistant to corrosion and grease buildup; overall, it measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high. After business hours, its integrated 1 1/4-inch full-port ball type drain valve facilitates oil removal, while its included tank brush and clean out-rod enable precise cleaning and removal of interior stains. It sits on four 6-inch adjustable casters, providing uncomplicated transportation on irregular or flat floor surfaces, and two of these casters lock in place for stability during use.

Product Details





Part of the PowerFry5® series
70-pound-capacity frypot
Includes twin baskets with plastic-coated handles
FivePass system evenly distributes heat
Energy-saving SoftStart ignition system gradually warms oil to prevent burning or scorching
Includes tank brush and clean-out rod
Stainless steel cabinet and frypot
Mounted on (4) 6-in. adjustable casters (2 locking)
1 1/4-in. full port ball type drain valve
Idle setting maintains temperature using 4,802 BTUs per hour
Hi-limit shutoff
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Computer Controls





Electronic ignition
Temperature range: 200-390 degrees F
10 menu timers display product name and cook time
Offline programming of menu items through USB
Option to cook to compensating time or actual time
Displays in Fahrenheit or Celsius
3 melt modes

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 14 in. D
Fry basket: (2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
237.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 237.00
