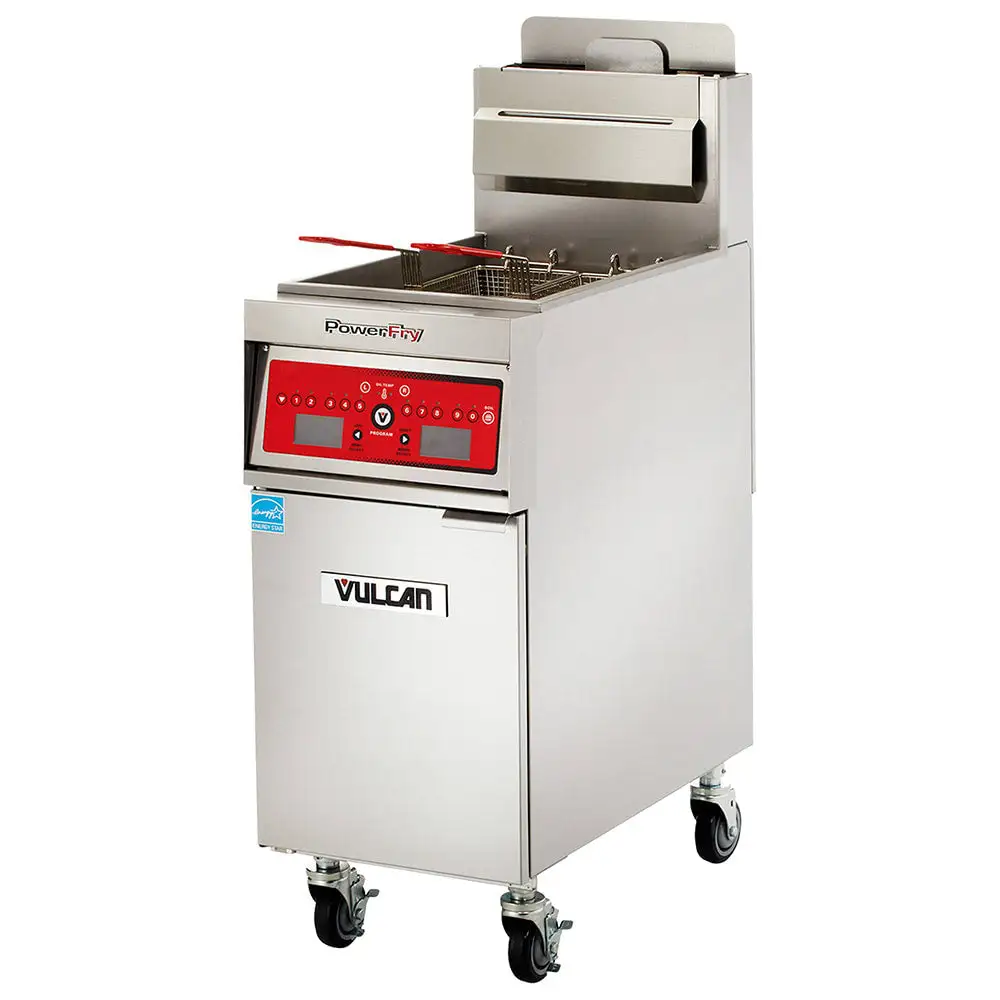

Vulcan 1VK65DF Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas

The Vulcan 1VK65DF gas fryer promotes high-volume production while minimizing operational costs. While it outputs 80,000 BTUs overall, it also sports an electronic SoftStart® ignition that slowly warms oil upon startup to prevent burning and scorching, extending oil life. Its FivePass® heat transfer system produces 78 percent thermal efficiency and 68 percent cooking efficiency. It maintains set temperatures between 200 and 390 degrees Fahrenheit and comes with an integrated solid-state digital control system. This system features three possible melt cycles in addition to two countdown timers and an automatic boil-out mode.
The Vulcan 1VK65DF gas fryer vat measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high. Its 19 1/2-inch wide by 14-inch-deep fry tank accommodates 70 pounds of oil, and with KleenScreen PLUS® filtration, the oil maintains optimal conditions for longer periods to reduce refill costs. This unit's cabinet and tank are made of stainless steel for the durability needed to withstand intense use, rust, and corrosion over time. To ease cleaning processes, it has a 1 1/4-inch full-port ball drain valve, tank brush, and clean-out rod.

Product Details





Part of the PowerFry5® series
70-lb. oil capacity
Includes twin baskets that utilize plastic-coated handles
SoftStart ignition gradually warms oil
Heat transfer system uses energy-conserving FivePass technology
Stainless steel frame, cabinet, and frypot
1 1/4-in. full port ball type drain valve
2 of (4) 6-in. adjustable casters lock
Hi-limit shutoff
Uses 4,802 BTUs per hour to maintain set temperatures in idle mode
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Solid-state Digital Controls





Electronic ignition
Temperature control range: 200-390 degrees F
3 melt cycles
2 countdown timers
Automatic boil out mode
Displays temperature in Fahrenheit and Celsius
Cooks with compensating time or actual time

Filtration System





110-lb.-capacity stainless steel filter pan
Stainless steel mesh filter creates filter area of 270 sq. in.
Motor and pump are push-button activated
8-GPM pump and motor
Shuts off burners during oil draining with drain valve interlock switch
Hands-free oil-return tube
Tank brush and clean-out rod

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 14 in. D
Fry Basket:(2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall:21 in. W x 30 1/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/ 1 ph, cord with NEMA 5-15P plug
Natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
380.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 380.00
