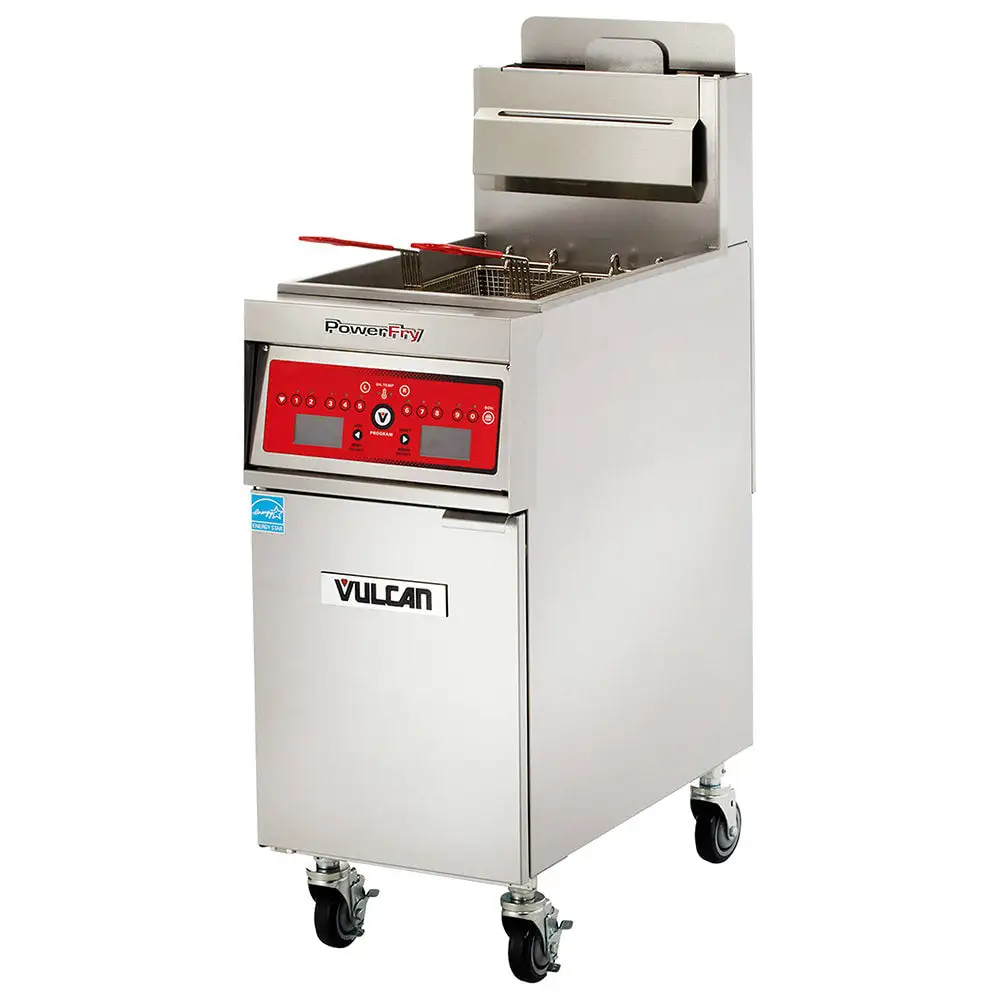

Vulcan 1VK85AF Gas Fryer - (1) 90 Lb Vat, Floor Model, Liquid Propane

The Vulcan 1VK85AF gas fryer's vat can accommodate 90 pounds of oil for high-volume production of fried chicken, onion rings, and okra. For even heating and cooking, its FivePass® heat transfer system yields 65 percent cooking efficiency and 78 percent thermal efficiency. Its tank measures 19 1/2 inches wide by 18 1/4 inches deep and fits two 8 3/4-inch-wide by 16 3/4-inch-deep by 6-inch-high fry baskets with plastic handles that reduce heat transfer. This unit's temperature can be set between 200 and 390 degrees Fahrenheit, and to ease operation, users can select their preferred conditions with solid-state analog knob controls that feature user-selectable fat-melt modes. It's powered by liquid propane and outputs 90,000 BTUs; it also conserves energy with its SoftStart® ignition that extends oil life by slowly warming oil using just 35,000 BTUs per hour. With integrated KleenScreen® filtration, this unit maximizes oil life by removing unwanted food debris and other particles.
The Vulcan 1VK85AF gas fryer is uncomplicated to install in the back-line kitchens of dining establishments. To further ease installation and transportation, it sits on four 6-inch adjustable casters for smooth maneuvering on irregular or flat floors; two of the wheels can be locked in place to keep it stable during use. This unit's cabinet and tank are constructed of stainless steel, which reduces corrosion and fortifies its structure through high-volume use. To assist with cleaning, its 1 1/4-inch ball type drain valve eases oil removal, while the tank brush and clean-out rode enable more precise cleaning.

Product Details





Part of the PowerFry5® series
90-lb. oil capacity
Twin baskets use plastic-coated handles
Energy-conscious SoftStart electric ignition gradually warms oil
FivePass system evenly disperses heat
Hi-limit shut-off
Stainless steel body, cabinet and frypot
1 1/4 full-port ball type drain valve
Mounted on (4) 6-in. adjustable casters (2 locking)
Idle mode maintains temperature at just 6,298 BTUs per hour
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Solid-state Analog Controls





Electronic ignition
Temperature range: 200-390 degrees F
User-selectable fat-melt modes
Located behind door

Filtration System





110-lb-capacity filter pan made of stainless steel
Stainless steel mesh filter creates 270-sq.-in. filter area
Drain valve interlock stops burners during oil draining
Hands-free oil-return tube
Cycle is push-button activated
Motor and pump run at 8 GPM
Tank brush and clean-out rod

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 18 1/4 in. D
Fry basket: (2) 8 3/4 in. W x 16 3/4 in. D x 6 in. H
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Liquid propane
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
420.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 420.00
