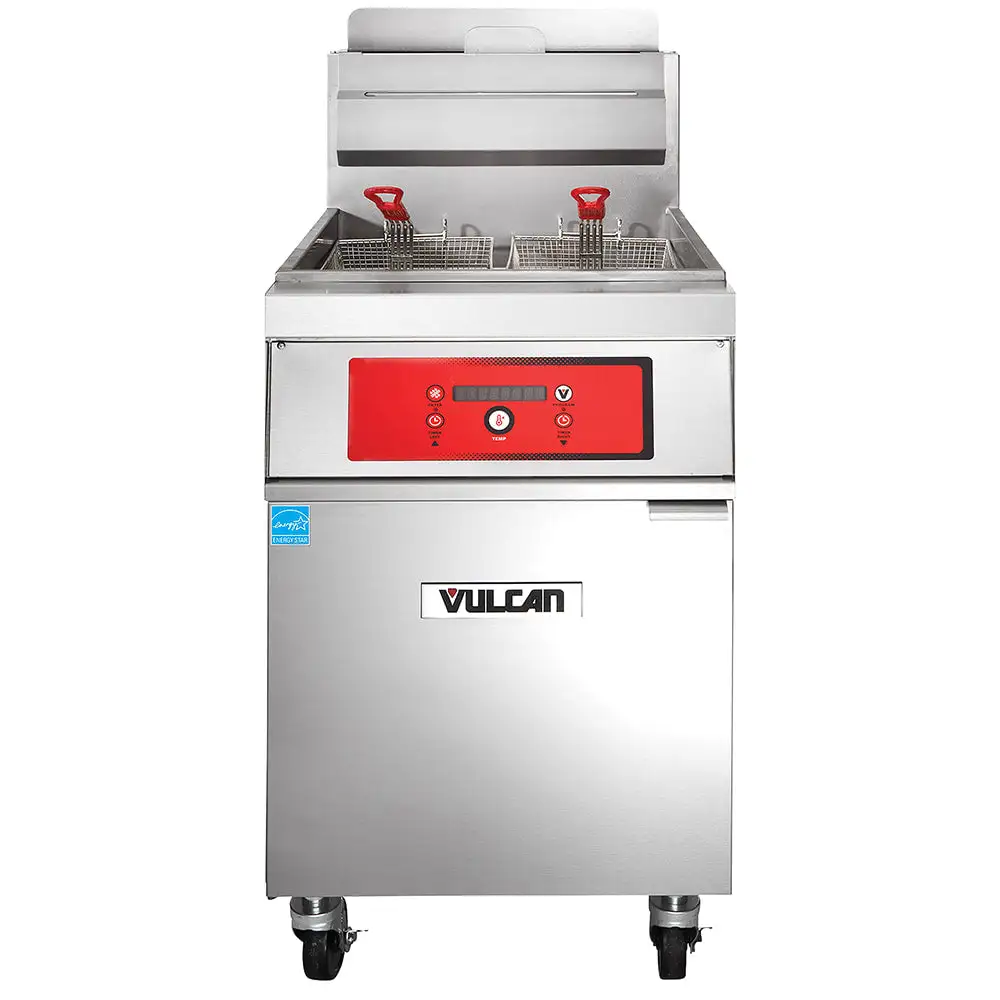

Vulcan 1VK65D Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas

The Vulcan 1VK65D gas fryer features a 19 1/2-inch wide by 14-inch-deep fry tank that holds 70 pounds of oil for cooking chicken, mozzarella sticks, onion rings, and other fried favorites. To ease submersion or removal of this food, it has two 9 1/2-inch-wide by 13 1/4-inch-deep by 6-inch-high baskets, each of which features a plastic handle to protect operators from burns. This unit is operated with solid-state digital controls that feature three melt cycles and two countdown timers, and these controls enable employees to set the temperature between 200 and 390 degrees Fahrenheit. To ease use and promote effortless multitasking, it also features an automatic boil-out feature.
While it outputs 80,000 BTUs overall, this fryer conserves energy using SoftStart® ignition, which produces 35,000 BTUs an hour to slowly bring the oil to temperature at startup. Additionally, its integrated FivePass® heat transfer system evenly distributes heat for 78 percent thermal efficiency and 68 percent cooking efficiency. It's powered through natural gas, which gives the unit quick start up times and allows it to hold a more consistent temperature. While idle, it maintains set temperatures at a 4,802 BTU hourly rate.
The Vulcan 1VK65D gas fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high and can be maneuvered using four 6-inch casters, two swivel locking and two non-locking. The cabinet and fry tank are constructed of stainless steel, a metal that's durable and corrosion-resistant for use in grease-laden settings. After back-to-back use, it has a 1 1/4-inch full-port ball drain, tank brush, and a clean-out rod to ease sanitation and cleaning.

Product Details





Part of the PowerFry5® series
70-lb. oil capacity
Twin baskets featuring plastic-coated handles
Electronic SoftStart ignition slowly warms oil to prevent scorching
FivePass heat transfer system maximizes energy efficiency
1 1/4-in. full-port ball type drain valve
Stainless steel cabinet, frame, and frypot
Set of (4) 6-in. adjustable casters (2 locking)
Tank brush and clean-out rod
Hi-limit shutoff mechanism
Uses 4,802 BTUs per hour to maintain set temperatures when idle
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Solid-state Digital Controls





Electronic ignition
Temperature can be set between 200 and 390 degrees F
Auto boil-out mode
2 countdown timers
3 melt modes
Fahrenheit or Celsius temperature display
Can be set to cook with compensating time and actual time

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 14 in. D
Fry basket: (2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
237.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 237.00
