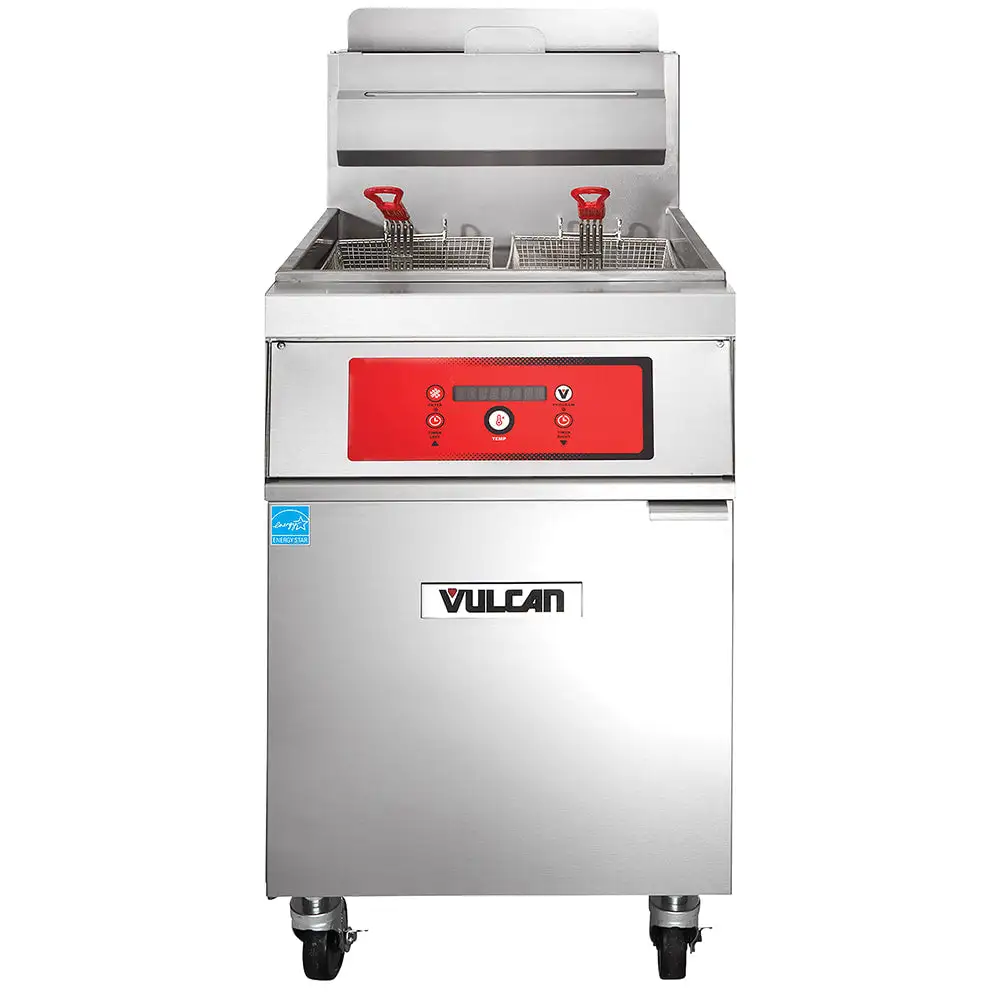

Vulcan 1VK65D Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

The Vulcan 1VK65D gas fryer is straightforward to install in back-line diners and restaurant kitchens. Overall, it measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high, and because it sits on four 6-inch casters, it can be smoothly maneuvered when maintenance or cleaning underneath is necessary. Additionally, two of its casters come with locking mechanisms to keep the unit from shifting during use. Its 19 1/2-inch-wide by 14-inch-deep fry tank and cabinet are constructed of stainless steela€”a durable, corrosion-resistant metal ideal for heavy-grease settings. After multiple operation cycles, its integrated 1 1/4-inch full-port ball type drain valve, tank brush, and clean-out rod assist with cleaning and oil removal.
The Vulcan 1VK65D gas fryer vat holds 70 pounds of oil for cooking chicken, fish, and other breaded meats, and because it's part of the PowerFry5® series, this unit conserves energy to lower operation costs. Its FivePass® heat transfer system yields 68 percent cooking efficiency and 78 percent thermal efficiency, while its SoftStart® ignition system prolongs oil life by gradually warming oil at 35,000 BTUs per hour. Operators can control this fryer unit with solid-state digital control, which features three melt cycles and two countdown timers. This system lets operators set the temperature between 200 and 390 degrees Fahrenheit, and for safe use during cooking, the fryer features two 9 1/4-inch-wide by 13 1/4-inch-deep by 6-inch high baskets with plastic handles that protect users from heat transfer.

Product Details





Part of the PowerFry5® series
70-lb. oil capacity
Twin baskets with plastic coating on handles included
FivePass heat transfer mechanics evenly disperse heat
SoftStart ignition slowly brings oil to temperature to prevent scorching
Stainless steel construction
1 1/4-in. full port ball type drain valve
(4) 6-in. adjustable casters (2 locking)
Tank brush and clean-out rod
Idle mode maintains set temperatures at reduced energy usage
Hi-limit shutoff mechanism
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Solid-state Digital Controls





Electronic ignition
Temperature can be set between 200 and 390 degrees F
3 melt cycles
2 countdown timers
Automatic boil-out mode
Displays temperature in Fahrenheit or Celsius
Utilizes compensating time or actual time

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 14 in. D
Fry basket:(2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Liquid propane
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
237.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 237.00
