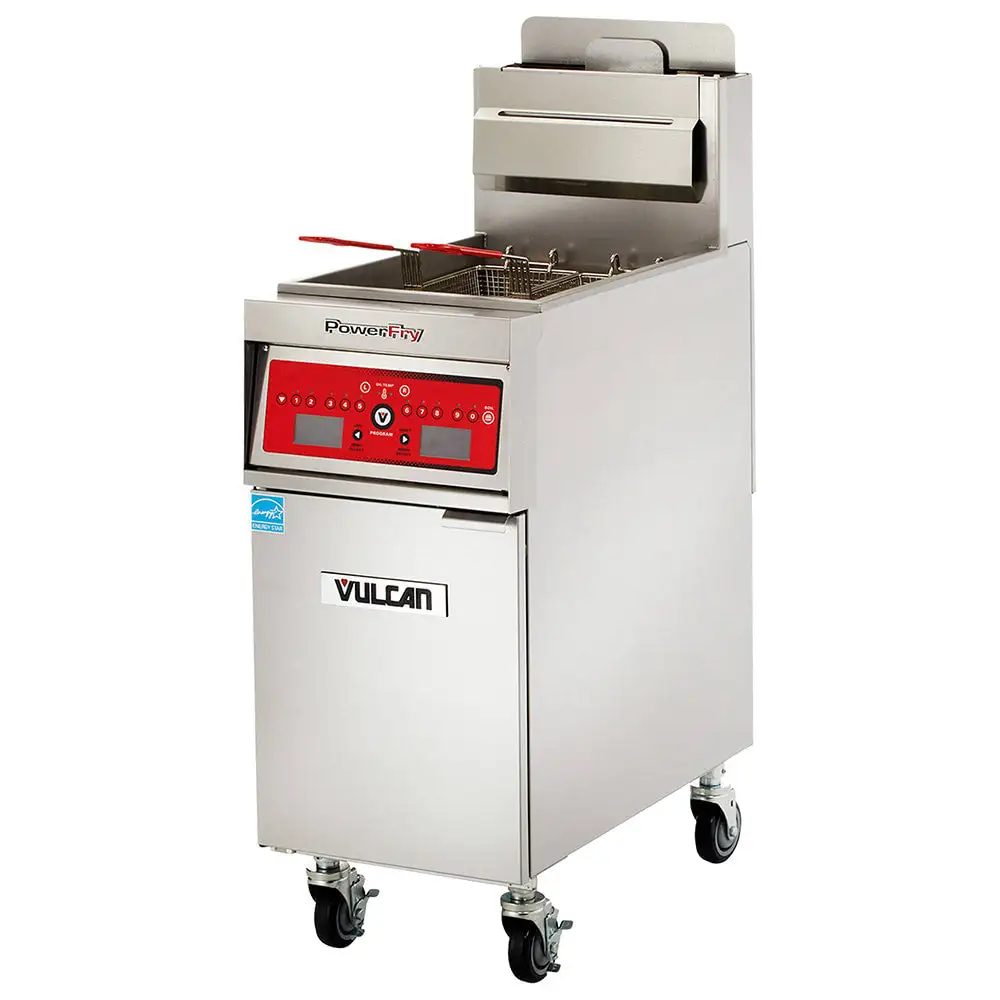

Vulcan 1VK85AF Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas

Great for compact kitchens producing a high output of fried chicken, shrimp, fish, or vegetables, the Vulcan 1VK85AF PowerFry5® commercial gas fryer measures 21 inches wide by 34 3/8 inches deep by 47 1/8 inches tall and boasts a 90-pound oil capacity. While its 36 1/4-inch working height enhances employee comfort, the twin fryer baskets feature plastic-coated handles to promote user safety. The baskets contain food as its submerged into the vat and removed from the oil to streamline frying. When this stainless steel unit needs to be repositioned, it's simple to move with its four 6-inch castersa€”two of which include locks for stabilization during operation.
This fryer is built with the FivePass® heat transfer system, which uniformly distributes heat throughout as much as 90 pounds of cooking oil, yielding 65 percent cooking efficiency and 78 percent thermal efficiency. Operators can set oil temperature between 200 and 390 degrees Fahrenheit using the solid-state analog knob control located behind the cabinet's door. To make use of solid shortening, users can also choose from various fat-melt modes. This natural-gas-powered unit features a SoftStart® ignition system, which gradually increases the oil's temperature to reduce the risk of scorching; this mechanism also causes the unit to output 45,000 BTUs per hour rather than 90,000 BTUs per hour to conserve energy. Once it reaches the desired temperature, its idle temperature setting only outputs 6,298 BTUs per hour.
To prolong oil life, the Vulcan 1VK85AF freestanding gas fryer includes a KleenScreen PLUS® filtration system. Users can simply press a button to activate the motor and pump to remove debris from the oil, improving taste and quality. When the drain valve is opened, the drain valve interlock switch automatically turns off the fryer's burners. Its filter pan can support 110 pounds of oil, and the unit can circulate hot oil at 8 gallons per minute to expedite filtration. The drain and fryer tank can be cleaned with the included clean-out rod and tank brush.

Product Details





Part of the PowerFry5 collection
Single vat accommodates 90 lbs. of oil
SoftStart ignition system outputs 45,000 BTUs per hour while slowly increasing oil temperature
FivePass heat transfer system reduces cook and recovery times
Idle temperature setting maintains consistent temperatures
Flue temperature doesn't exceed 500 degrees F at maximum production rate
Hi-limit shutoff mechanism
36 1/4-in. working height
Freestanding configuration
Cabinet and frypot constructed of stainless steel
2 fryer baskets featuring plastic-coated handles
Tank brush and clean-out rod included for cleaning frypot and drain
1 1/4-in. full-port ball-type drain valve
(4) 6-in. adjustable casters (2 locking)
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Solid-state Analog Controls





Operating temperature range: 200-390 degrees F
Knob located behind cabinet door
Fat-melt modes are user selected
Electronic ignition

Filtration System Details





Filter pan capacity: 110 lbs.
1-touch button activates motor and pump
Drain valve interlock switch shuts off burners when drain valve is opened
8-GPM motor and pump

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
420.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 420.00
