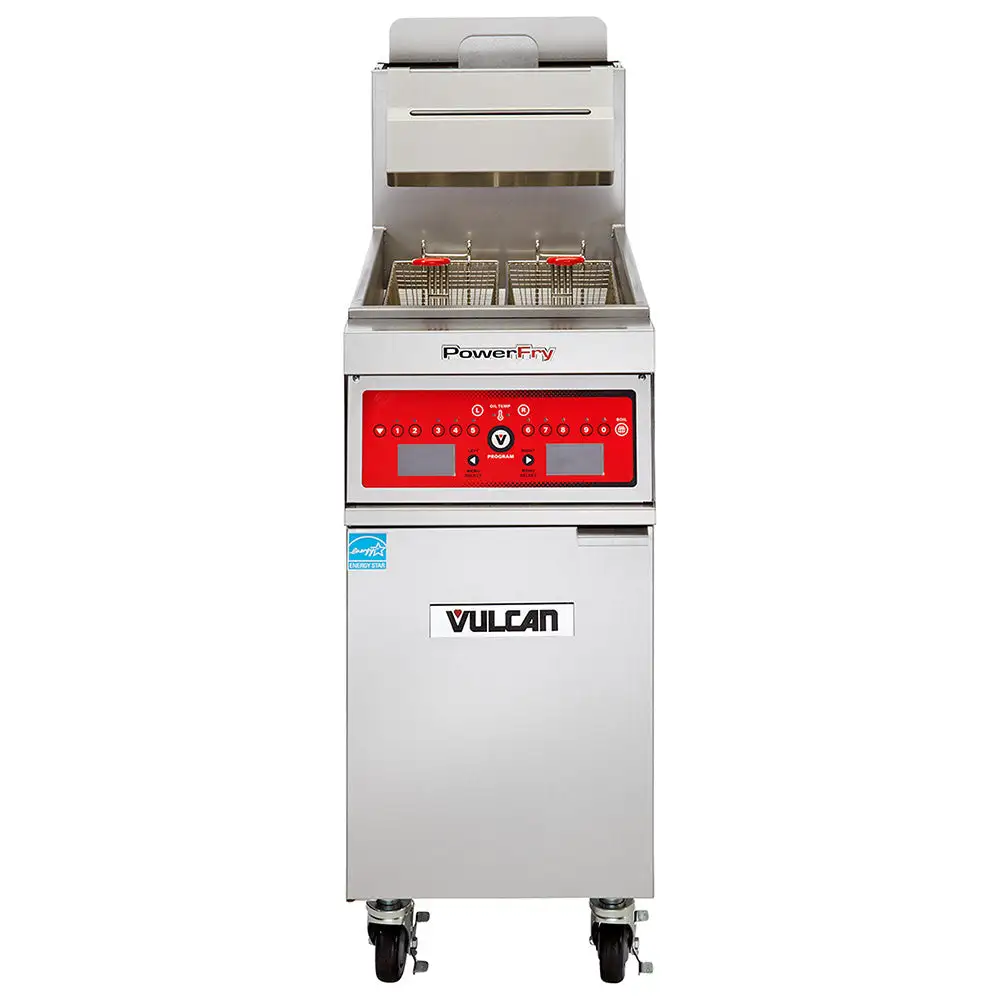

Vulcan 1VK85A Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas

Powered by natural gas, the Vulcan 1VK85A PowerFry5® commercial gas fryer can output 90,000 BTUs per hour. To enhance energy efficiency, it features a FivePass® heat transfer system that evenly warms oil to eliminate cold spots, reduce cooking time, and expedite recovery time. For simple startup, this unit can be electronically ignited, and operators can adjust temperatures from 200 to 390 degrees Fahrenheit using the solid-state analog knob controls located behind the cabinet door. If using solid shortening, staff can select one of the fat-melt modes to streamline melting. The SoftStart® ignition system slowly heats oil initially to conserve energy; when it reaches the set temperature, the idle temperature setting causes the unit to output 6,298 BTUs per hour to maintain the required heat.
The Vulcan 1VK85A freestanding, energy-efficient fryer's 19 1/2-inch-wide by 18 1/4-inch-deep frypot accommodates 90 pounds of cooking oil. The two included baskets can be used simultaneously in the frypot to contain foods as they're fried, and for user safety, their handles are coated in plastic to minimize heat transfer. This 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-tall unit's cabinet and frypot are made of resilient, rust- and corrosion-resistant stainless steel that can survive high-volume back-of-house use. For employee comfort, it provides a 36 1/4-inch working height. Its four 6-inch casters provide smooth mobility to ease repositioning; during use, two of the casters can be locked in place.

Product Details





Part of the PowerFry5 line
Oil capacity: 90 lbs.
SoftStart ignition system minimizes scorching by slowly heating oil
FivePass heat transfer system evenly distributes heat throughout the oil
Idle temperature setting maintains temperatures by outputting just 6,298 BTUs per hour
Flue temperature doesn't exceed 500 degrees F at maximum production rate
Hi-limit shutoff mechanism
Freestanding
36 1/4-in. working height
Stainless steel cabinet and frypot resists rust and corrosion
V-shaped cold zone
Twin fryer baskets sport plastic-coated handles
Includes tank brush and clean-out rod for cleaning frypot and drain
1 1/4-in. full-port ball-type drain valve
(4) 6-in. adjustable casters (2 with brakes)
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Solid-state Analog Controls





Operating temperature range: 200-390 degrees F
Electronic ignition
User-selected fat-melt modes
Knob located behind cabinet door

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by natural gas
Includes 120-volt cord with NEMA 5-15P plug
1/2-in. ID and 3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
267.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 267.00
