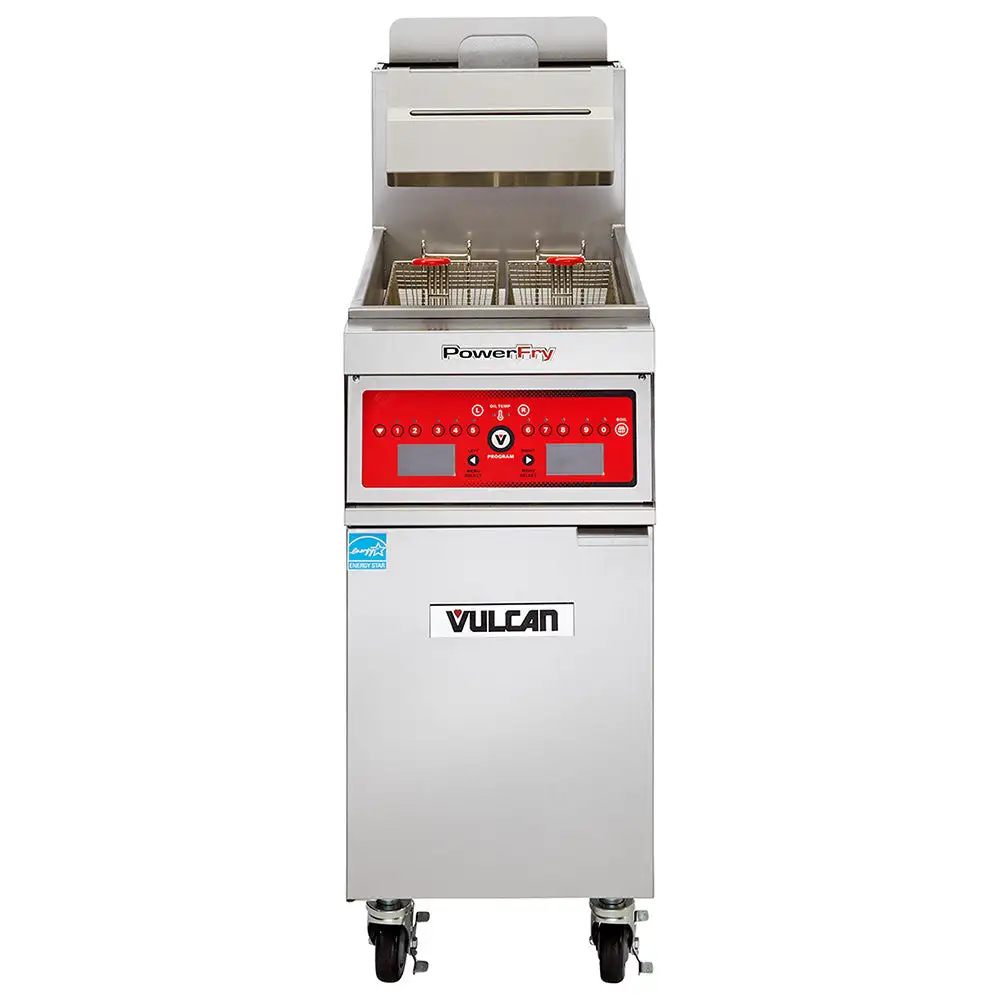

Vulcan 1VK85C Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas

The Vulcan 1VK85C natural gas fryer features a single 19 1/2-inch-wide by 18 1/4-inch-deep stainless steel fry tank and base cabinet. Its tank can hold as much as 85 to 90 pounds of oil, and to streamline cleaning, it has a 1 1/4-inch full-port, ball-type drain valve, tank brush, and clean-out rod. Twin fryer baskets effectively contain breaded goods as they're submerged and removed from oil, and to protect users from burns, the handles are coated in plastic. So users can reach the baskets comfortably, this unit has a 36 1/4-inch working height. To ease transportation for cleaning and maintenance, it's mounted on four adjustable 6-inch swivel casters, which have two locks to ensure stability. Overall, this freestanding unit measures 21 inches wide by 34 3/8 inches deep by 47 1/8 inches high.
To heat the oil thoroughly and minimize recovery time between frying, this unit operates with a FivePass® heat transfer system. It also features an electronic ignition system with SoftStart® technology that heats the oil with 35,000 BTUs to extend oil life. The "V"-shaped cold zone traps loose sediment to keep it from burning, which could otherwise impact oil color and taste. For energy conservation, this fryer features an idle temperature mode that uses only 6,298 BTU to maintain cooking temperature. It also has a high-limit shut off, which caps the maximum temperature to reduce fire and burn risks.
To streamline service, the Vulcan 1VK85C fryer has programmable computer controls that can be set and modified using the USB interface. Users can program as many as 10 menu timers and shake reminders for ease of monitoring; for flexibility, staff can cook with either actual or compensating time, which accounts for temperature fluctuations. The digital thermostat displays temperatures in either Celsius or Fahrenheit, with a temperature range of 200 to 390 degrees Fahrenheit. So operators can use solid compounds and shortening, this control system features three melt modes.

Product Details





Part of the PowerFry5® series
85-90-lb. capacity
Stainless steel fry tank and cabinet
Twin fry baskets with plastic-coated handles
36 1/4-in. working height
Temperature range: 200-390 degrees F
Fast temperature recovery
Users can cook with compensating time or actual time
Electronic matchless ignition
SoftStart ignition system extends oil life and conserves energy
Hi-limit shut off
FivePass heat transfer system yields 65 percent cooking and 78 percent thermal efficiency
"V"-shaped cold zone
1 1/4-in. full-port, ball-type drain valve
4 adjustable 6-in. casters (2 locking)
Includes tank brush and clean-out rod
90,000 BTU per hour

Computer Control System





Programmable computer controls
Digital display in Celsius or Fahrenheit
10 menu timers
Offline menu programming with USB interface
3 melt modes for solid compounds
Idle temperature setting reduces energy use to 6,298 BTU

Dimensions and Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by natural gas
Includes 120 V cord with NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
267.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 267.00
