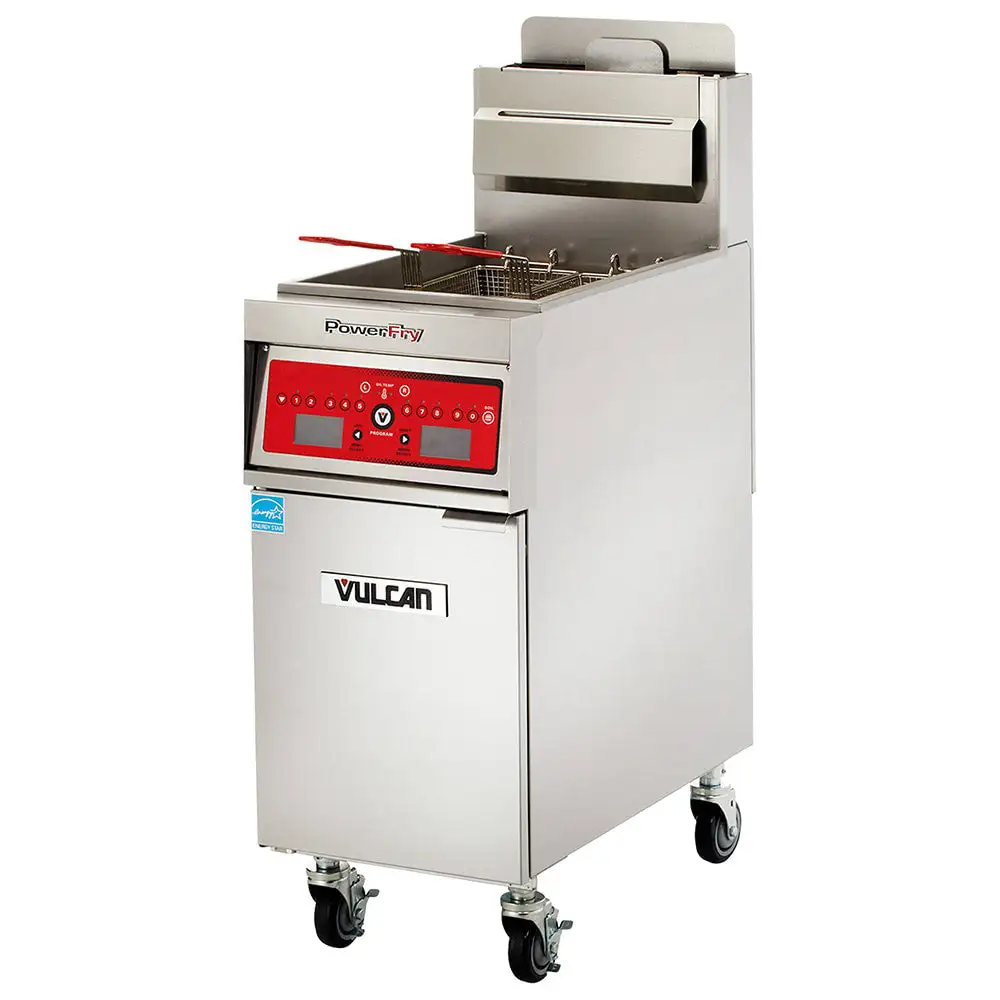

Vulcan 1VK85CF Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas

Designed to enhance energy efficiency, the Vulcan 1VK85CF PowerFry5® commercial gas fryer features the FivePass® heat transfer system, which uniformly distributes heat throughout the oil to reduce lag times during recovery. This mechanism yields 78 percent thermal efficiency and 65 percent cooking efficiency. When the oil is initially heated, it uses the SoftStart® ignition system, which causes the unit to output 35,000 BTUs per hour rather than 90,000 BTUs. To retain the set temperature, its idle temperature setting outputs 6,298 BTUs per hour. Because this unit is built with programmable computer controls, operators can set the unit's temperatures from 200 to 390 degrees Fahrenheit, manage oil temperature with the digital display, upload 10 menu timers, and choose from three melt modes.
To prolong oil life, this fryer is built with the KleenScreen PLUS® filtration system that operates with the press of a button. Its drain valve interlock switch automatically shuts off the fryer's burners when the drain valve is opened, and for quick filtration, the motor and pump filter 8 gallons of oil per minute. In total, 110 pounds of oil can be drained into the filter pan. To minimize hands-on tasks, it's built with a hands-free oil-return line connection.
The Vulcan 1VK85CF freestanding gas fryer boasts a durable stainless steel construction to match other back-of-house equipment and endure high-volume use. For enhanced user comfort, its 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-tall structure establishes a 36 1/4-inch working height. Operators can lift and lower the included twin baskets into and from the 19 1/2-inch-wide by 18 1/4-inch-deep vat, while their plastic-coated handles minimize heat transfer for user safety. So it can be wheeled out of the way for cleaning or maintenance, this fryer is mounted on four 6-inch casters for smooth mobilitya€” two of the casters can be locked in place for stabilization.

Product Details





Part of the PowerFry5 line
Frypot capacity: 90 lbs.
FivePass heat transfer system uniformly distributes heat through cooking oil
SoftStart ignition system slowly increases oil temperature
Idle temperature setting outputs 6,298 BTUs per hour to maintain set temperature
Flue temperature remains below 500 degrees F at maximum production rate
Hi-limit shutoff mechanism
Freestanding unit at 36 1/4-in. working height
Stainless steel construction
Plastic-coated handles on the 2 fryer baskets minimize heat transfer
Tank brush and clean-out rod for cleaning frypot and drain
1 1/4-in. full-port ball-type drain valve
(4) 6-in. adjustable casters (2 locking)
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
90,000 BTU

Computer Control System





Programmable computer controls with digital character display
Operating temperature range: 200-390 degrees F
Temperature display in Fahrenheit or Celsius
10 menu timers
USB interface enables offline programming
3 melt modes

Filtration System Details





Filter pan capacity: 110 lbs.
1-touch button activates motor and pump
Drain valve interlock switch shuts off burners when drain valve is opened
8-GPM motor and pump

Dimensions & Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
7 A, 1/3 HP
115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
420.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 420.00
