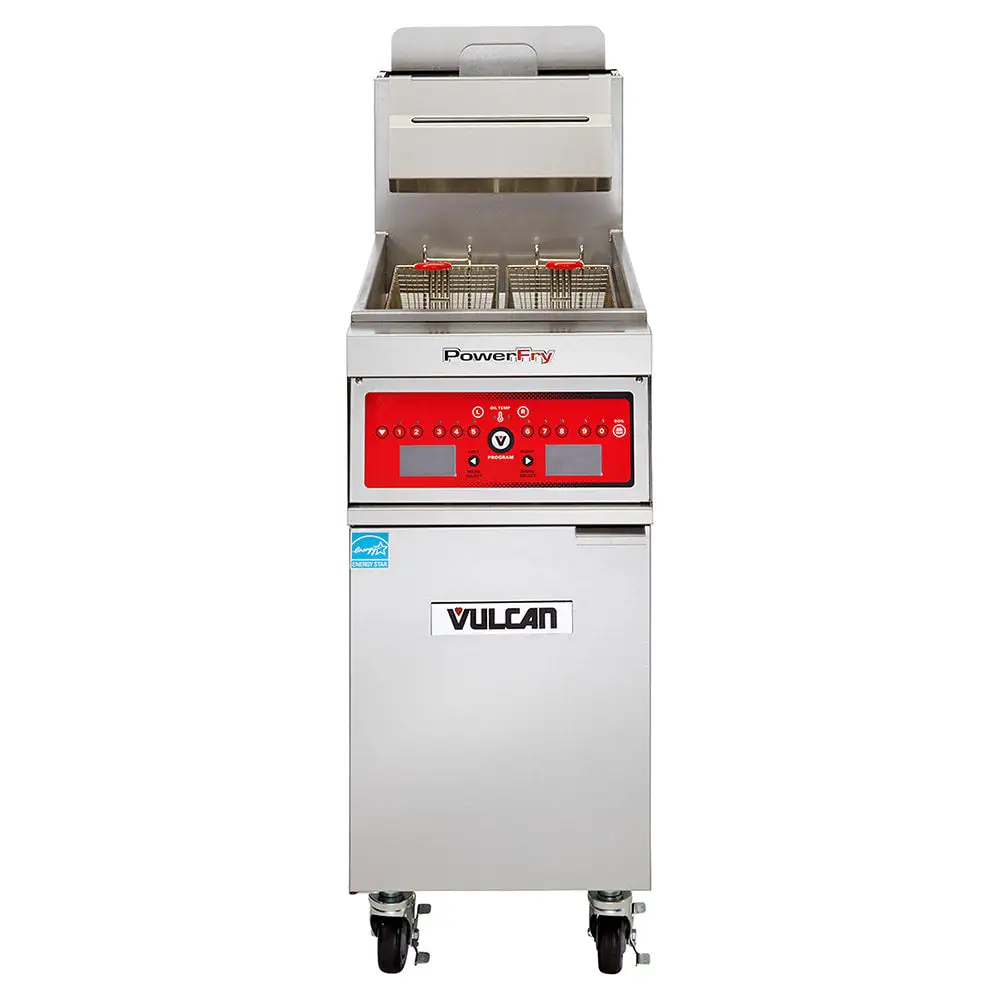

Vulcan 1VK85D Gas Fryer - (1) 90 Lb Vat, Floor Model, Liquid Propane

For lasting durability, the Vulcan 1VK85D fryer's cabinet and fry tank are constructed of stainless steel. This 19 1/2-inch-wide by 18 1/4-inch-deep tank can hold as much as 85 to 90 pounds of melted shortening. To streamline oil removal and ease cleaning, it has a 1 1/4-inch full-port, ball-type drain valve, tank brush, and clean-out rod. Two fry baskets hold breaded shrimp, calamari, and chicken tenders as they're submerged into and removed from the oil; these basket handles are coated in plastic to protect users from burns. This fryer has a 36 1/4-inch working height for simplified vat access. To ease transportation for cleaning and maintenance, this 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-high unit is mounted on four adjustable 6-inch casters; two of these casters can be locked for stability during operation.
This freestanding fryer has a digital thermostat that displays temperature readings in Celsius or Fahrenheit, and it generates temperatures between 200 and 390 degrees Fahrenheit. So users can monitor cook times and ensure product is fully cooked, this unit has two countdown timers, and although this unit has a fast heat recovery system, staff can cook with actual or compensating time to accommodate temperature changes. Because this fryer offers three melt modes, it's compatible with solid oil and shortening.
To ensure heat is distributed consistently and evenly, the Vulcan 1VK85D LP gas fryer uses a FivePass® heat transfer system. It features an electronic SoftStart® ignition, which warms oil gradually at startup and minimizes the risk of scorching. To maintain oil color and taste over an extended period of time, this unit has a "V"-shaped cold zone that catches loose sediments and reduces risk of burning. An idle temperature mode puts the fryer into stasis during slow periodsa€”conserving energy. Meanwhile, a high-limit shut-off system protects the oil from exceeding the set temperature.

Product Details





Featured in the PowerFry5® series
85-90-lb. capacity
Freestanding configuration
Stainless steel cabinet and fry tank
Two fry baskets featuring plastic-coated handles
36 1/4-in. working height
Digital temperature display with readouts in Fahrenheit or Celsius
Temperature range: 200-390 degrees F
Solid-state digital controls
3 melt modes for solid compounds
Energy-saving idle temperature setting outputs 6,298 BTU
Rapid heat recovery
Two countdown timers
Timers can show actual or compensating time
Electronic ignition system with SoftStart technology
Hi-limit shut off
Auto boil-out system
FivePass heat transfer system yields 78 percent thermal and 65 percent cooking efficiency
"V"-shaped cold zone catches sediment and minimizes burning
1 1/4-in. full-port, ball-type drain valve
4 adjustable 6-in. casters, 2 with locks
Tank brush and clean-out rod ease cleaning
90,000 BTU per hour

Dimensions and Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by LP gas
Includes 120 V cord with NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
267.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 267.00
