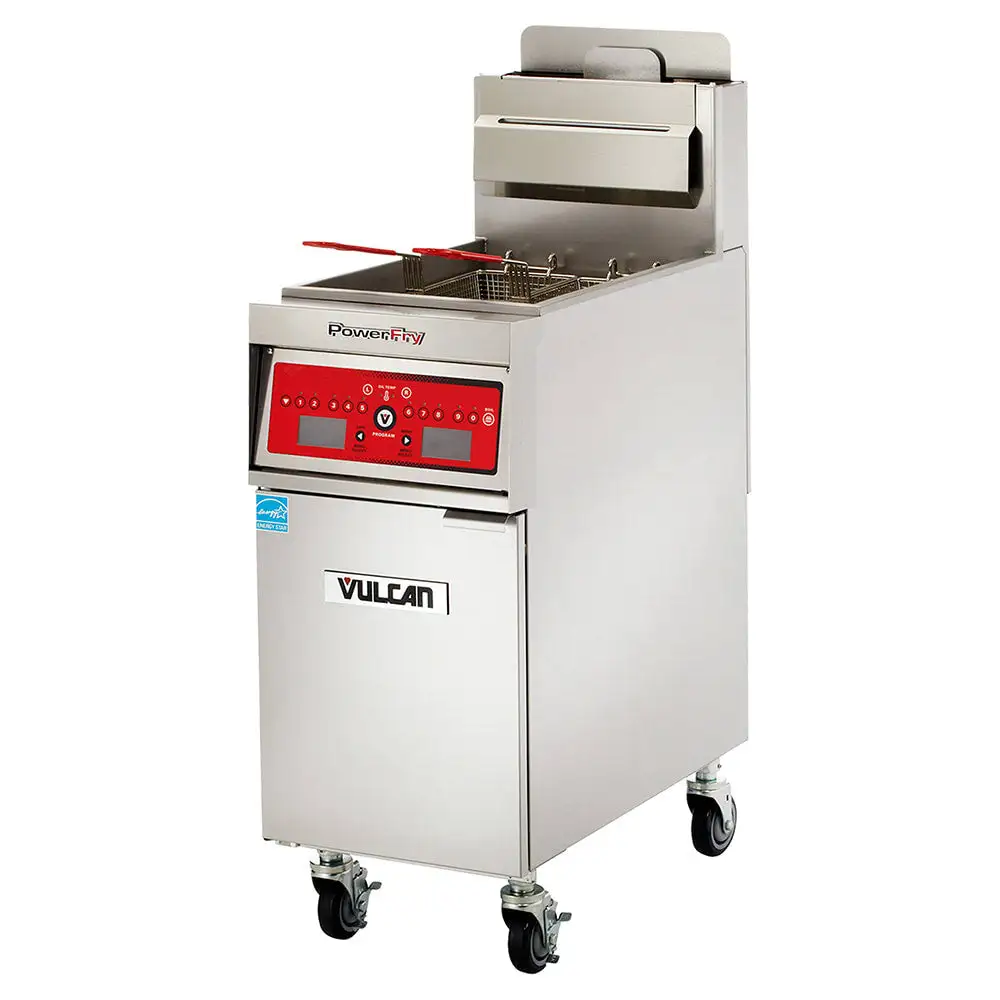

Vulcan 1VK85DF Gas Fryer - (1) 90 Lb Vat, Floor Model, Liquid Propane

For consistent, thorough heating, the Vulcan 1VK85DF LP gas fryer has a FivePass® heat system, which yields 78 percent thermal and 65 percent cooking efficiency. The electronic SoftStart® ignition system warms the frying compound gradually to minimize concentrated hot spots, and to protect oil from overheating, it boasts a high-limit shut-off system. A "V"-shaped cold zone catches loose sediment that could otherwise burn and affect oil taste and color. Fast heat recovery minimizes thermal lag as new items are added to the oil; to conserve energy during slow periods, this unit has an idle temperature setting. Users can clean the fryer as needed using the automatic boil-out mode to ease boil-out solution removal.
This unit generates temperatures between 200 and 390 degrees Fahrenheit and can be monitored in Celsius or Fahrenheit using the digital thermostat. To minimize the risk of overcooking foods, this unit has two countdown timers that can be set to actual or compensating time. Users can choose between three melt modes to effectively dissolve solid oils and shortening without overworking the unit. The Kleenscreen Plus® filtration system extends oil life while enhancing efficiency.
Part of the PowerFry5® series, the Vulcan 1VK85DF floor model fryer has a stainless steel fry tank, which can hold 85 to 95 pounds of frying compound, and a sturdy stainless steel base cabinet. The tank measures 19 1/2 inches wide by 18 1/4 inches deep and has a 36 1/4-inch working height to simplify fryer access. This fryer includes twin fryer baskets, which keep breaded goods contained as they're submerged in the oil then removed from the vat. To protect hands from burns, the basket handles are coated in plastic. Users can drain the oil through the 1 1/4-inch full-port, ball-type drain valve, and to further ease cleaning, it includes a tank brush and clean-out rod. For simplified transportation, this 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-high unit is mounted on four 6-inch swivel casters, which have two brakes for stability during operation.

Product Details





Featured in the PowerFry5 series
85-90-lb. capacity
Freestanding
Stainless steel cabinet and fry tank
Twin fry baskets with plastic-coated handles
36 1/4-in. working height
Digital temperature display in Celsius or Fahrenheit
Temperature range: 200-390 degrees F
3 melt modes for solid oil and shortening
Idle temperature setting outputs 6,298 BTU for energy conservation
Fast heat recovery
Users can cook with actual time or compensating time
Solid-state digital controls
Two countdown timers
Electronic ignition
SoftStart ignition system gradually heats oil
Hi-limit shut-off system
Auto boil-out mode
Filtration system enhances oil quality and life
FivePass heat transfer system yields 78 percent thermal and 65 percent cooking efficiency
"V"-shaped cold zone preserves oil quality
1 1/4-in. full-port, ball-type drain valve
Mounted on (4) 6-in. casters (2 locking)
Tank brush and clean-out rod included
90,000 BTU per hour

Dimensions and Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by LP gas
Includes 120 V cord with NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
420.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 420.00
