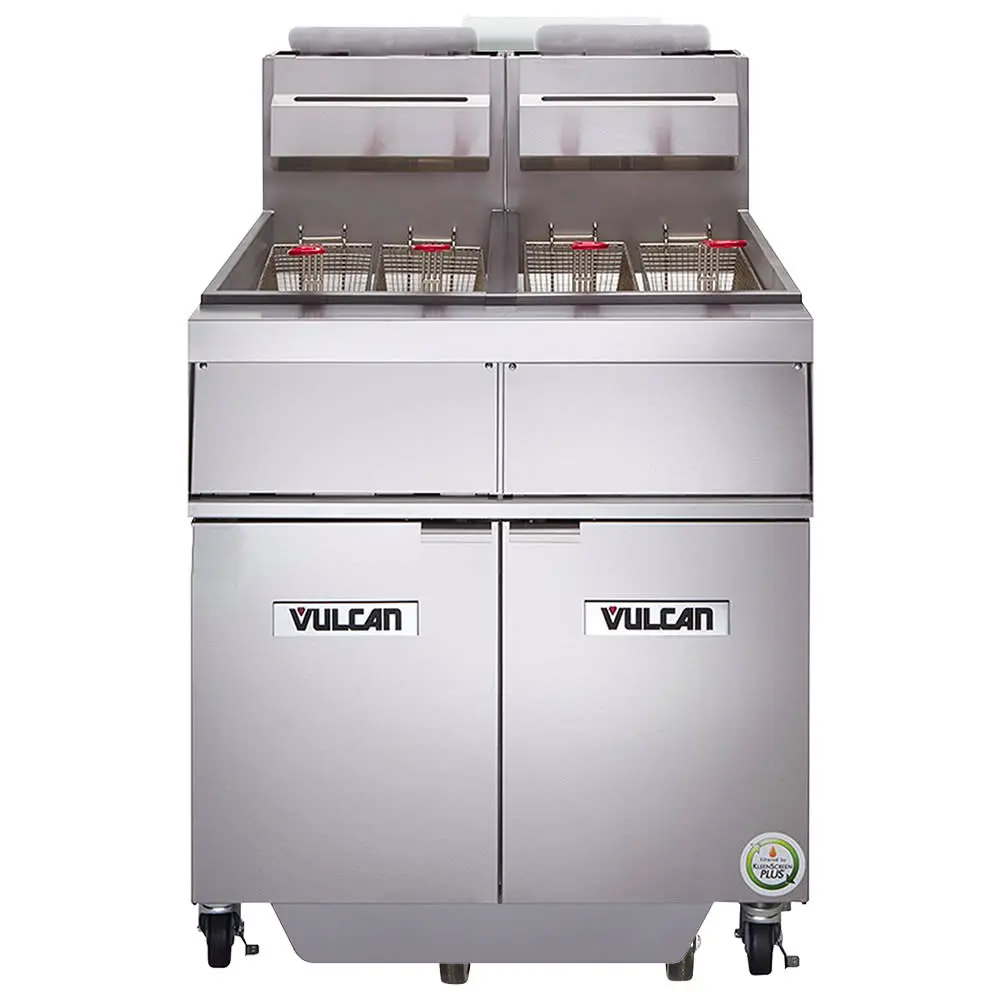

Vulcan 2GR45MF Gas Fryer - (2) 50 Lb Vats, Floor Model, Natural Gas

To accommodate high-volume cooking requirements, the Vulcan 2GR45MF fryer has two stainless steel fry tanks and a stainless steel cabinet. French fries, onion rings, chicken nuggets, and more can be placed in the two sets of twin baskets, which are then lowered into the two 45- to 50-pound capacity vats. To protect users from burns, these baskets have plastic-coated handles. This freestanding unit is mounted on four adjustable 6-inch casters. Because two of the casters have brakes, the fryer can be locked in place while in use. Overall, this fryer measures 31 inches wide by 30 1/8 inches deep by 46 1/4 inches high and should be installed under a vent.
The Vulcan 2GR45MF gas fryer is powered by natural gas and generates temperatures between 200 and 400 degrees Fahrenheit; users can monitor and adjust these temperatures using the millivolt thermostat. Heat is effectively transferred from four heat exchanger tubes to the oil, and to minimize overheating risks, the unit is designed with a high-limit shut-off system. For maintenance, the fuel channel can be closed with the combination gas and pilot shut-off valve. A KleenScreen PLUS® filtration system filters particles as small as 0.5 microns, extending the oil's life. Oil color and taste is preserved with a double-sided mesh screen and a push-button-activated 1/3-HP motor and pump; this system circulates oil at 8 gallons per-minute. Polluted oil and waste is then collected in the 70-pound-capacity filter pan. After cleaning, boil-out solution can be removed through the Boil Out ByPass® system without touching the drain manifold. To expedite cleaning, this unit has a 1 1/4-inch full-port, ball-type drain valve, tank brush, and clean-out rod.

Product Details





45-50-lb. vat capacity
2 vats
2 stainless steel fry tanks with stainless steel cabinet
4 fry baskets with plastic-coated handles
4 heat exchanger tubes
Millivolt thermostat controls
200-400 degree-F temperature range
Boil Out Bypass removes boil-out solution without touching the main drainline
High-limit shut-off system with combination gas and pilot shut-off valve
1 1/4-in. full-port, ball-type drain valve
Adjustable casters (2 casters lock)
Includes tank brush and clean-out rod
Requires ventilation system
240,000 BTU

Filtration System





Stainless steel filter pan has 70-lb. capacity
KleenScreen PLUS filtration system traps fine particulates
2-sided stainless steel mesh filter screen
1/3-HP motor and pump circulates oil at 8 GPM
One-touch push button triggers the pump and motor

Dimensions and Utilities





Overall: 31 in. W x 30 1/8 in. D x 46 1/4 in. H
Powered by natural gas
6.0 A
115 V/60 Hz/1 ph with cord and NEMA 5-15P plug
1 1/4-in. rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
4

BTU per Fryer
120000

Capacity (lbs)
100

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
100

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
2GR45M Series

Special Features
Built In Filter

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
31

Weight
512.00

Manufacturer: Vulcan
Baskets: 4
BTU per Fryer: 120000
Capacity (lbs): 100
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 100
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: 2GR45M Series
Special Features: Built In Filter
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 31
Weight: 512.00
