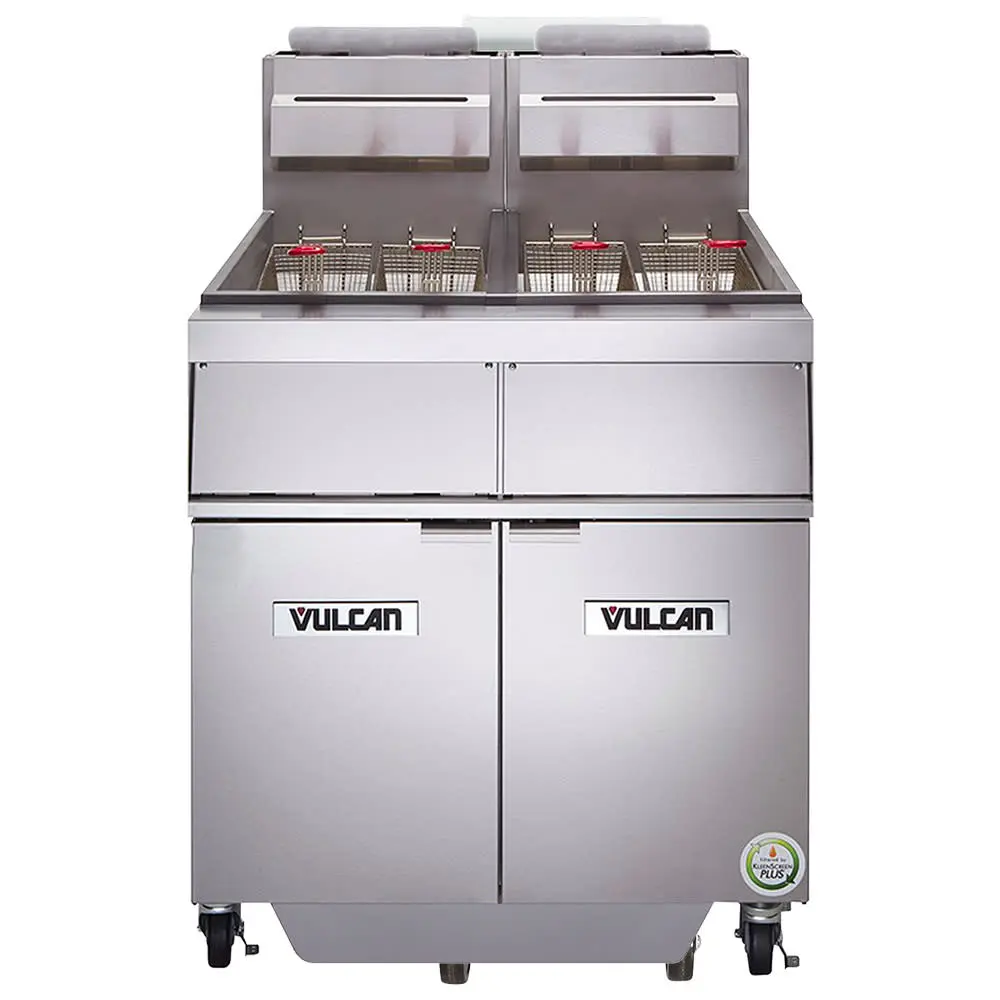

Vulcan 2GR45MF Gas Fryer - (2) 50 Lb Vats, Floor Model, Liquid Propane

The Vulcan 2GR45MF LP gas fryer has an adjustable millivolt thermostat, which users can use to raise and lower temperatures between 200 and 400 degrees Fahrenheit. Heat is transferred from four heat exchanger tubes to the oil, and to prevent overheating, it has a high-limit shut off. Users can manually close the fuel channel with the combination gas and pilot shut-off valve. This unit has a Kleenscreen Plus® filtration system, which traps particles that are 40 to 60 times smaller than a paper filter to preserve oil taste and color. This system operates using a double-sided mesh screen and a push-button-activated 1/3-HP motor and pump that circulates oil at 8 gallons per-minute. Waste is then collected in the filter pan, which can hold as much as 70 pounds. After users clean the tank with boil-out solution, it can be removed through the Boil Out ByPass® system without touching the drain manifold. To expedite cleaning, this unit has a 1 1/4-inch full-port, ball-type drain valve, tank brush, and clean-out rod.
For high-volume cooking requirements, the Vulcan 2GR45MF fryer has two stainless steel fry tanks, two vats, and a stainless steel cabinet. To fry shrimp, peppers, chicken, and mozzarella sticks, the tanks boast a 45- to 50-pound capacity. Two sets of twin baskets hold product as they're transferred to and from the vat. Plastic-coated basket handles ease transportation and protect hands from burns. This freestanding unit is mounted on four adjustable 6-inch casters, which have two locks to hold it in place during operation. Overall, this fryer measures 31 inches wide by 30 1/8 inches deep by 46 1/4 inches high and requires a ventilation system for safe operation.

Product Details





45-50-lb. vat capacity
2 vats
2 stainless steel fry tanks are durable for long-term use
Stainless steel cabinet
2 sets of twin fry baskets with plastic-coated handles
4 heat exchanger tubes positioned for easy cleaning
Millivolt thermostat control
200-400 degrees F temperature range
Boil Out Bypass removes boil-out solution without using the main drain
High-limit shut-off system
Combination gas and pilot shut-off valve
1 1/4-in. full-port, ball-type drain valve
Adjustable casters, 2 locking to keep fryer in place
Included tank brush and clean-out rod simplify cleaning
Ventilation system required
240,000 BTU

Filtration System





70-lb. filter pan capacity
Stainless steel filter pan
KleenScreen PLUS filtration traps particles 40-60 times smaller than paper filters
Stainless steel mesh screen filters from 2 sides
1/3-HP motor and pump circulates frying compound at 8 GPM
One-touch push button switch engages the pump and motor

Dimensions and Utilities





Overall: 31 in. W x 30 1/8 in. D x 46 1/4 in. H
Powered by LP gas
6.0 A
115 V/60 Hz/1 ph with cord and NEMA 5-15P plug
1 1/4-in. rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
4

BTU per Fryer
120000

Capacity (lbs)
100

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
100

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
2GR45M Series

Special Features
Built In Filter

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
31

Weight
512.00

Manufacturer: Vulcan
Baskets: 4
BTU per Fryer: 120000
Capacity (lbs): 100
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 100
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: 2GR45M Series
Special Features: Built In Filter
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 31
Weight: 512.00
