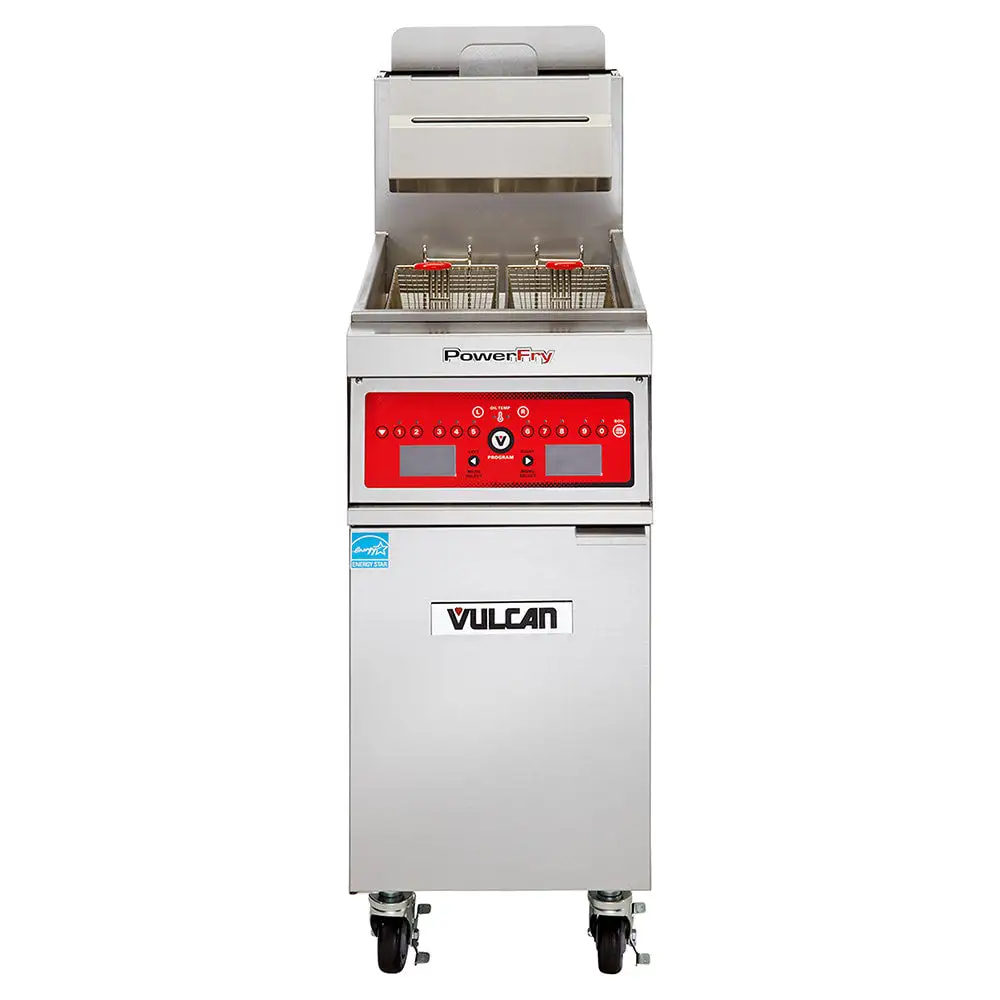

Vulcan 1VK85D Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas

For streamlined operation, the Vulcan 1VK85D freestanding fryer has digital temperature controls that can be adjusted between 200 and 390 degrees Fahrenheit. This thermostat displays temperatures in either Celsius or Fahrenheit. To keep track of cook time, this unit features two countdown timers; staff can cook with actual or compensating time, which accounts for temperature fluctuations. Because the fryer has three melt modes, operators can use solid shortening without the worry of overheating the unit.
To provide uniform temperature distribution and reduce heat lag between frying, this natural gas fryer uses a FivePass® heat transfer system. Its electronic ignition features SoftStart® technology, which gradually heats oil at startup and minimizes scorching risks. For quality preservation, this unit has a "V"-shaped cold zone that captures particulates and minimizes burning that could affect oil taste and color. An idle temperature mode conserves energy by putting the fryer into stasis when it's not in use; a high-limit shut-off system inhibits temperature increases to limit burnt food.
The Vulcan 1VK85D fryer features a sturdy stainless steel cabinet with a 19 1/2-inch-wide by 18 1/4-inch-deep, stainless steel fry tank. This tank can hold as much as 85 to 90 pounds of oil, and to streamline oil removal, it has a 1 1/4-inch full-port, ball-type drain valve; an included tank brush and clean-out rod further aid cleaning. Its two fryer baskets neatly contain french fries, mozzarella sticks, and chicken tenders as they're transferred to and from the oil, and to reduce the risk of heat transfer, the handles are plastic-coated. So staff can access the fry vats, it has a 36 1/4-inch working height. To ease transportation, this 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-high unit is mounted on four adjustable 6-inch swivel casters. Two of these casters have locks to hold the unit in place during use.

Product Details





Part of the PowerFry5® series
85-90-lb. oil capacity
Freestanding
Cabinet and fry tank are stainless steel
Two fry baskets
Plastic-coated basket handles reduce injury risk
36 1/4-in. working height
Digital thermostat offers Fahrenheit or Celsius readouts
Temperature range: 200-390 degrees F
3 melt modes enable use of solid shortening
Idle temperature setting outputs 6,298 BTU
Solid-state digital controls
Fast heat recovery system reduces lag time
Users can cook with actual or compensating time
Two countdown timers
Electronic matchless ignition
SoftStart technology gradually increases oil temperature
Hi-limit shut off reduces risk of overheating
Auto boil-out system eases cleaning
FivePass heat transfer system yields 78 percent thermal and 65 percent cooking efficiency
"V"-shaped cold zone traps particulates and preserves oil quality
1 1/4-in. full-port, ball-type drain valve
4 adjustable 6-in. casters (2 locking)
Tank brush and clean-out rod included
90,000 BTU per hour

Dimensions and Utilities





Tank: 19 1/2 in. W x 18 1/4 in. D
Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
Powered by natural gas
Includes 120 V cord with NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
90

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
90

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry5®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
267.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 90
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 90
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry5®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 267.00
