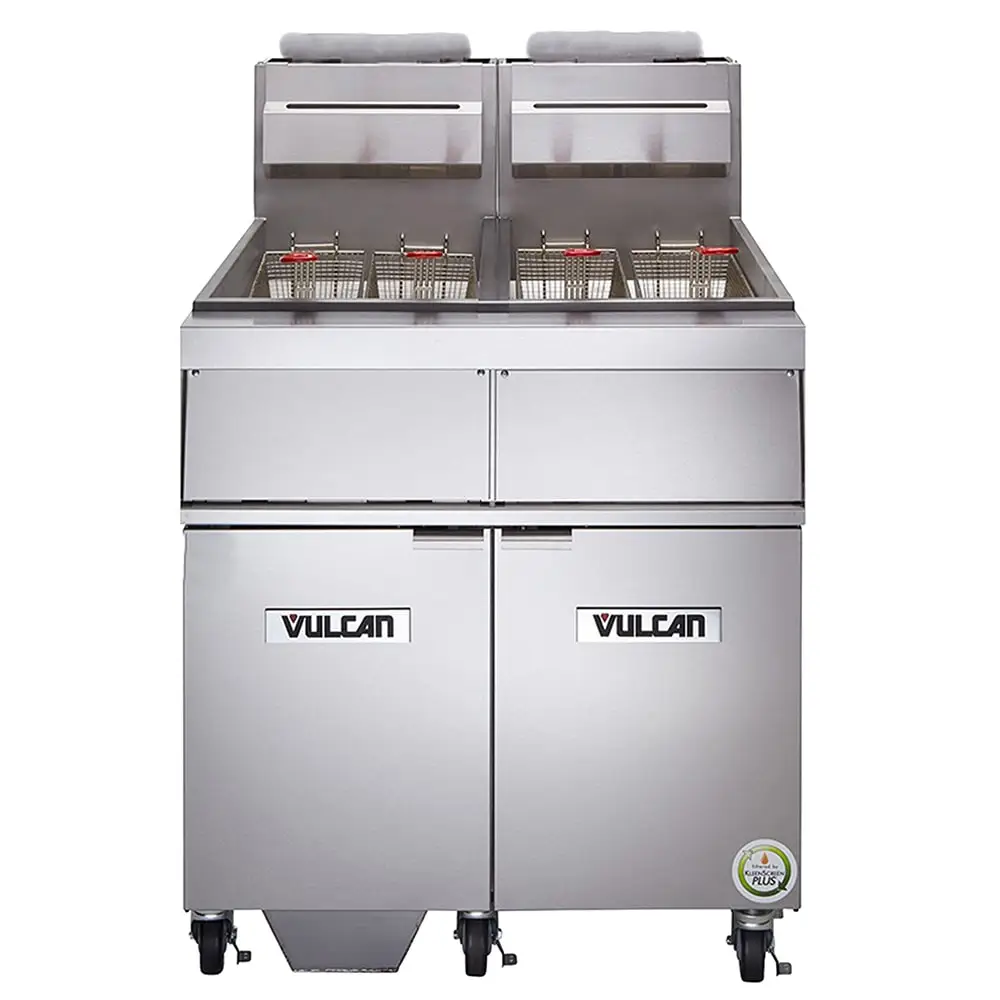

Vulcan 2GR85MF Gas Fryer - (2) 90 Lb Vats, Floor Model, Natural Gas

The Vulcan 2GR85MF natural gas fryer utilizes four heat exchanger tubes to evenly distribute heat throughout the oil vat. Staff can use the millivolt thermostat to adjust temperatures between 200 and 400 degrees Fahrenheit. This unit's high-limit shut-off system minimizes the risk of overheating, and to preserve oil taste and color, the KleenScreen PLUS® filtration system catches fine particulates. It features a stainless steel mesh screen that offers double-sided filtration and a pump and motor, which circulates oil at 8 gallons per-minute and is engaged with a push button. To ease cleaning, as much as 110 pounds of waste can be gathered in the stainless steel filter pan; the unit includes a 1 1/4-inch full-port, ball-type drain valve, a tank brush, and a clean-out rod. For safety, users should activate the combination gas and pilot shut-off valve before draining the oil, while the built-in Boil Out ByPass® system streamlines solution removal at the end of the boil-out process.
To withstand high-volume settings, the Vulcan 2GR85MF fryer is constructed of durable stainless steel. It has two vats with independent 85- to 90-pound capacities, two fry tanks, and one cabinet. Users can simply transport breaded goods to and from the fryer using the four fry baskets, which have handles coated in plastic to minimize heat transfer. So staff can transport the unit for cleaning or maintenance, it's attached to four adjustable casters; two of these casters lock to hold the unit in place when in use. Overall, this fryer measures 42 inches wide by 34 3/8 inches deep by 46 1/4 inches high and requires a ventilation system for operation.

Product Details





85-90-lb. vat capacity
2 vats with 2 stainless steel fry tanks
Stainless steel cabinet
4 fry baskets with plastic-coated handles
4 heat exchanger tubes
Adjustable millivolt thermostat
Temperature range: 200-400 degrees F
Boil Out Bypass® removes boil-out solution without contacting the main drain line
High-limit shut-off system reduces risk of overheating
Combination gas and pilot shut-off valve
1 1/4-in. full-port, ball-type drain valve
4 adjustable casters (2 locking, 2 non-locking)
Tank brush and clean-out rod included
Ventilation system required
300,000 BTU

Filtration System





110-lb. filter pan capacity
Stainless steel filter pan
Kleenscreen Plus filtration system preserves oil color and taste
Double-sided stainless steel filter mesh screen
1/3-HP motor and pump circulates oil at 8 GPM
Pump and motor engaged by one-touch push button

Dimensions and Utilities





Overall: 42 in. W x 34 3/8 in. D x 46 1/4 in. H
Powered by natural gas
6.0 A
115 V/60 Hz/1 ph with cord and NEMA 5-15P plug
1 1/4-in. rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
150000

Capacity (lbs)
180

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
180

Oil Capacity/Fryer (lb)
90

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
2GR85M Series

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
688.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 150000
Capacity (lbs): 180
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 180
Oil Capacity/Fryer (lb): 90
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: 2GR85M Series
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 688.00
