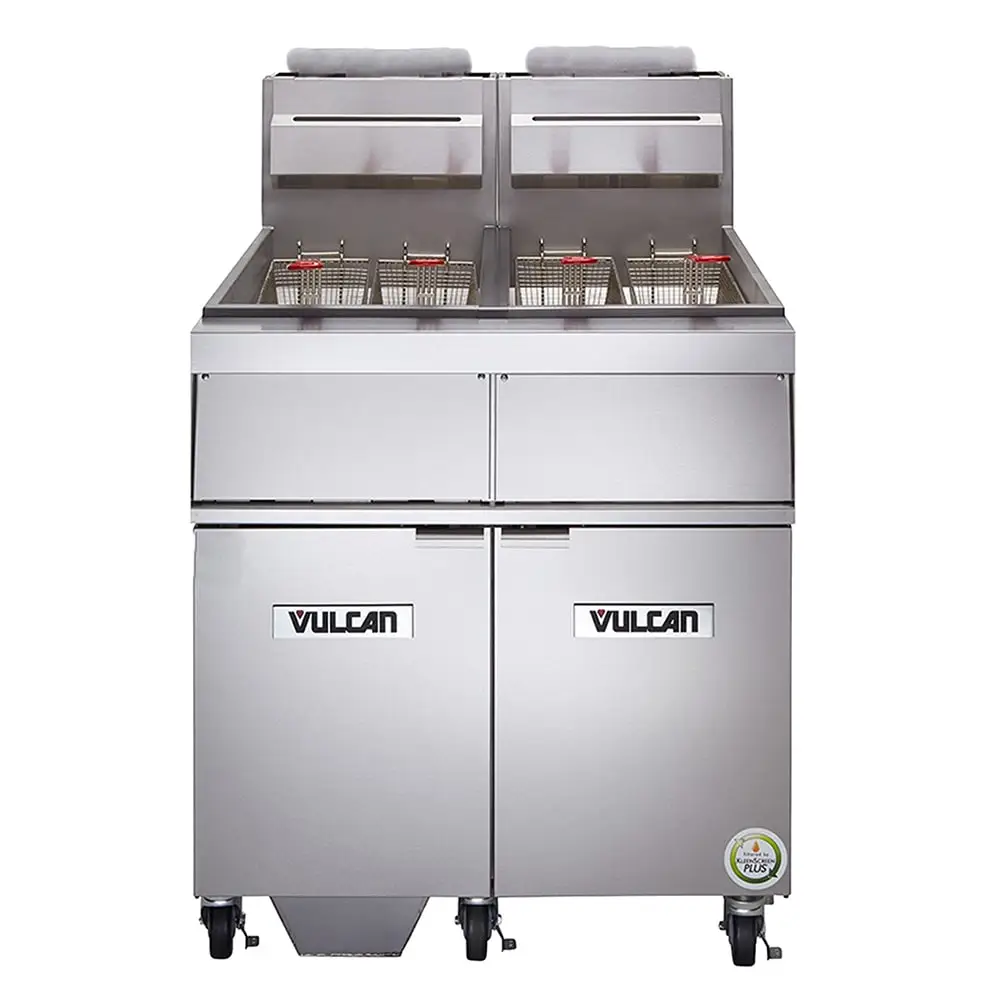

Vulcan 2GR65MF Gas Fryer - (2) 70 Lb Vats, Floor Model, Natural Gas

The Vulcan 2GR65MF natural gas fryer features two stainless steel fry tanks with two vats and a single stainless steel base cabinet. Its tanks can hold as much as 65 to 70 pounds of frying compound. Two sets of twin fryer baskets keep breaded goods contained as they're deposited and removed from the oil; to minimize burn risks, they have plastic-coated handles. To ease cleaning and maintenance, it's attached to four adjustable 6-inch casters, which have two locks to hold the unit in place during use. Overall, this freestanding unit measures 42 inches wide by 48 3/4 inches deep by 46 1/4 inches high and requires a ventilation system for proper operation.
For optimal temperature control, the Vulcan 2GR65MF natural gas fryer has a Millivolt thermostat with a temperature range of 200 to 400 degrees Fahrenheit. To provide even heat distribution, this unit has four heat exchanger tubes. Its high-limit shut-off system inhibits extreme increases in temperature and minimizes fire and scorch risks; for further safety, the unit is equipped with a combination gas and pilot shut-off valve. This unit is equipped with a Kleenscreen PLUS® filtration system, which traps fine particulates. Its motor and pump circulate oil at 8 gallons per-minute when the one-touch push button is engaged, while a stainless steel mesh screen offers filtration from two sides. The filter pan can hold 110-pounds of waste, and to ease cleaning, the fryer features a Boil Out Bypass® system, a 1 1/4-inch full-port, ball-type drain valve, and an included tank brush and clean-out rod.

Product Details





65-70-lb. vat capacity
2 vats
2 fry tanks with base cabinet constructed of stainless steel
2 sets of twin fry baskets with plastic-coated handles
4 heat exchanger tubes
Millivolt thermostatic controls
Temperature range: 200-400 degrees F
Boil Out Bypass eases boil-out solution removal
High-limit shut off system with combination gas and pilot shut-off valve
1 1/4-in. full-port, ball-type drain valve
2 locking casters and 2 non-locking casters
Tank brush and clean-out rod ease cleaning
Ventilation system required
240,000 BTU

Filtration System





110-lb. filter pan capacity
Stainless steel filter pan
KleenScreen PLUS filtration system preserves oil quality
Stainless steel filter screen filters from 2 sides
1/3-HP motor and pump circulates oil at 8 GPM
One-touch push button engages the pump and motor

Dimensions and Utilities





Overall: 42 in. W x 30 1/8 in. D x 46 1/4 in. H
Powered by natural gas
6.0 A
115 V/60 Hz/1 ph with cord and NEMA 5-15P plug
1 1/4-in. rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
150000

Capacity (lbs)
140

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
140

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
2GR65M Series

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
607.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 150000
Capacity (lbs): 140
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 140
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: 2GR65M Series
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 607.00
