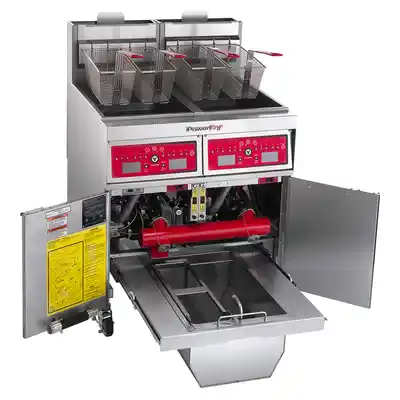

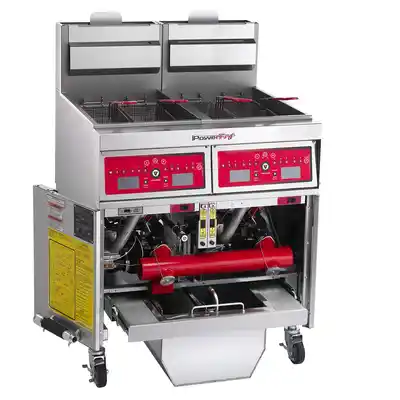

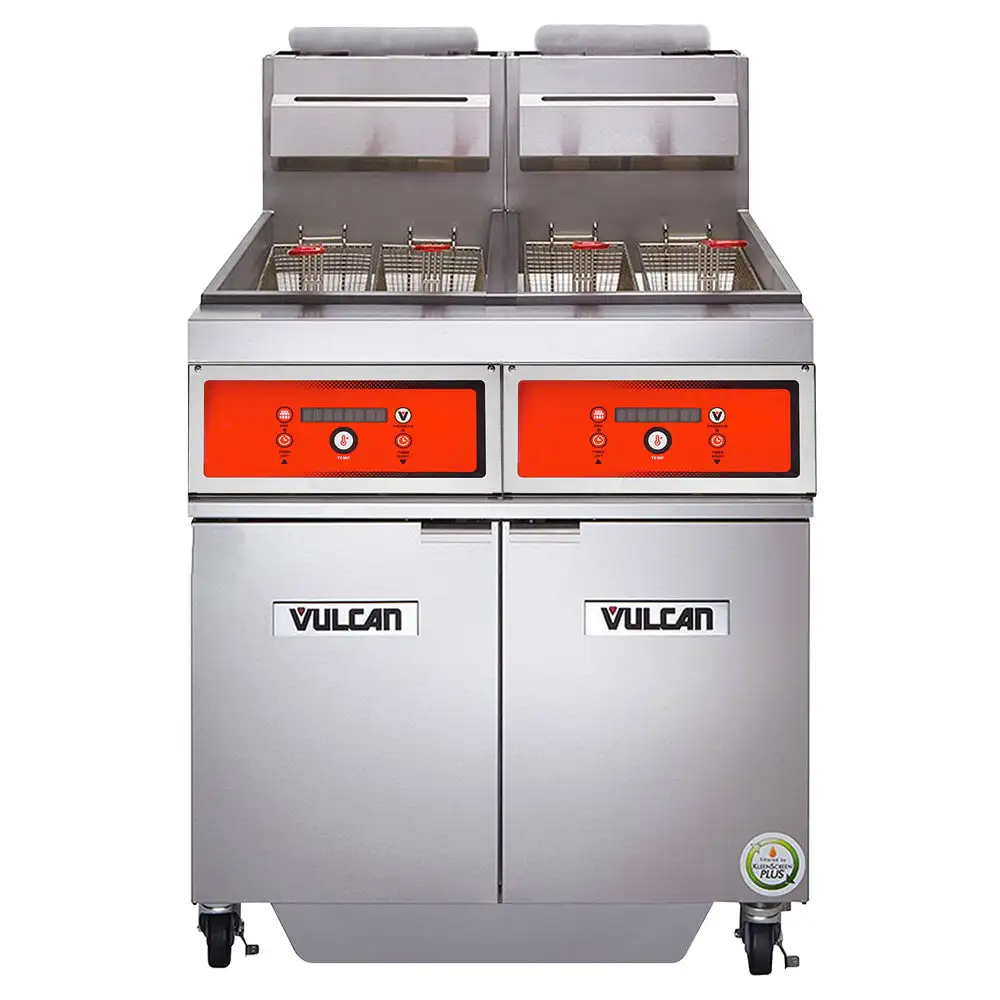

Vulcan 2TR45AF Gas Fryer - (2) 50 Lb Vats, Floor Model, Natural Gas

The Vulcan 2TR45AF PowerFry3® natural gas fryer has a temperature range of 200 to 390 degrees Fahrenheit. Its ThreePass® heat exchange system efficiently transfers heat between the burners and oil and reduces the unit's energy use when it is holding idle temperatures. This durable, stainless steel fryer ignites electronically with the SoftStart® system for easy use. Included with the unit are two fry baskets with rubber-coated handles, a tank brush, and a clean-out rod.
The Vulcan 2TR45AF PowerFry3 natural gas fryer uses the KleenScreen® filtration system to filter out sediment from the oil. The ball-type drain valve prevents sediment from obstructing the flow of the drained oil. The system uses a mesh screen to filter oil from two sides and has an interlock switch to shut down the burners during draining. Its seamless stainless steel filter pan has a capacity of 70 pounds and can filter as many as 8 gallons of oil in one minute. Both the fryer and the filtration system have casters to simplify transport.

Product Details





Heated with natural gas
Constructed of damage-resistant stainless steel
Efficiently heats with the ThreePass heat transfer system
Temperature range: 200-390 degrees F
Lowers energy usage when holding an idle temperature
Electronic ignition makes the unit easy to use
SoftStart ignition system slowly heats oil
2 tanks each have a 45-50-lb. fry tank capacity
Hi-limit shut-off protects against overheating
2 fry baskets are included
Tank brush and clean-out rod provided for easy cleaning
Comes with (4) 6-in. casters
70,000 BTU
Overall dimensions: 31 in. W x 30 1/8 in. D x 50 3/4 in. H

KleenScreen Plus Filtration System





Circulates 8 gal. of oil per min.
Oil is filtered through the mesh screen from both sides
Ball-type valve prevents sediment blockage when draining oil
Interlock switch cuts power to the burners when draining oil
Filter pan holds a maximum of 70 lbs.
Starts with the push of a button
Moves with 6-in. casters
120 V/60 Hz/1 ph, 1/3 HP, 1750 RPM, 6 A, NEMA 5-15P plug
Specifications
Manufacturer
Vulcan

Baskets
4

BTU per Fryer
70000

Capacity (lbs)
100

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
100

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Built In Filter

Special Features
Casters Included - Uninstalled

Special Features
High Efficiency

Special Features
Melt Cycle

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
31

Weight
530.00

Manufacturer: Vulcan
Baskets: 4
BTU per Fryer: 70000
Capacity (lbs): 100
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 100
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Built In Filter
Special Features: Casters Included - Uninstalled
Special Features: High Efficiency
Special Features: Melt Cycle
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 31
Weight: 530.00
