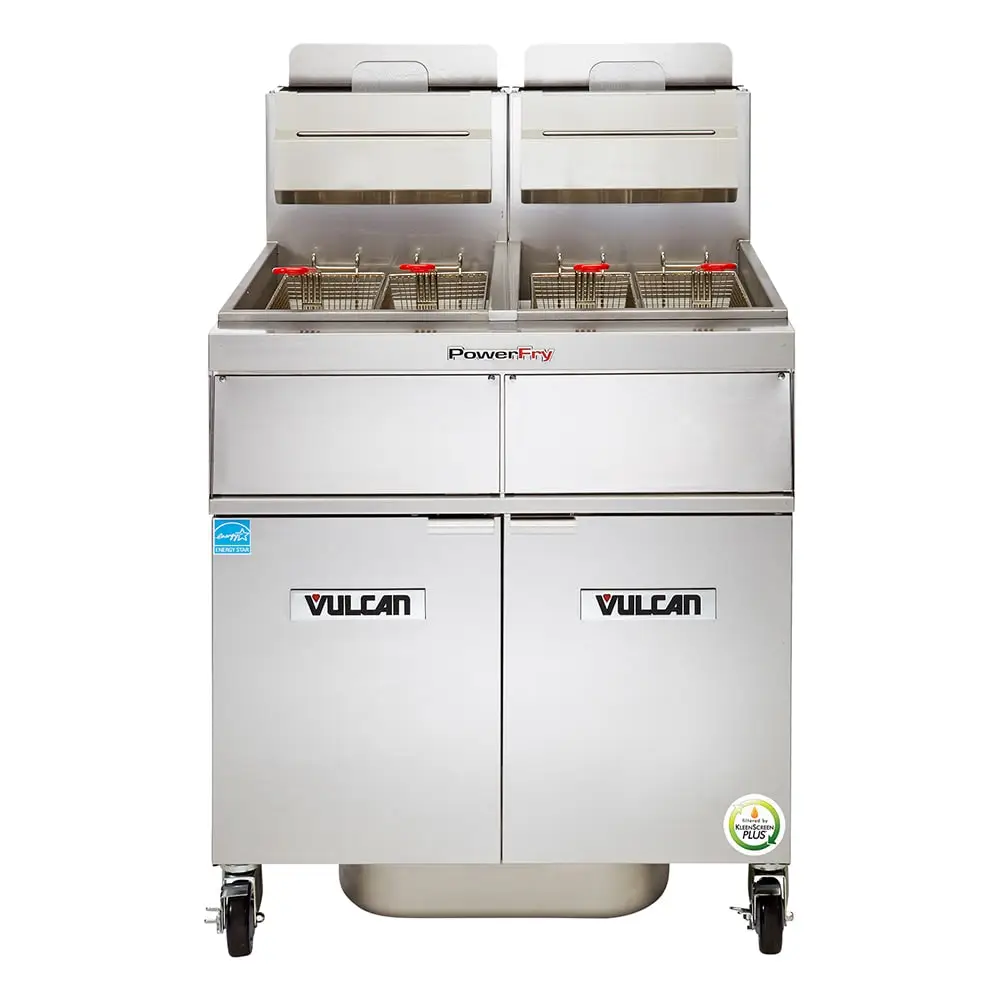

Vulcan 2TR65AF Gas Fryer - (2) 70 Lb Vats, Floor Model, Natural Gas

So different foods can be fried simultaneously without flavor transfer, the Vulcan 2TR65AF PowerFry3® fryer features two 70-pound-capacity frypots, each of which includes twin fryer baskets that secure dumplings, chicken, fish, fries, and mozzarella sticks during frying. To protect employees from heat transfer, their handles are coated with plastic. Operators can adjust each frypot's temperature from 200 to 390 degrees Fahrenheit using the corresponding solid-state analog knob controls behind the cabinet doors. If using solid shortening, one of the fat-melt modes can be activated. This unit operates with a ThreePass® heat transfer system, which effectively distributes heat throughout the oil to yield 60 percent cooking efficiency and 72 percent thermal efficiency. Upon startup, the SoftStart® ignition system quickly increases oil temperature by outputting 40,000 BTUs per hour; when the system reaches the set temperature, it maintains the heat with only 5,083 BTUs per hour.
To prolong the oil's service life, this unit is equipped with the KleenScreen PLUS® filtration system. Its 1/3-horsepower motor and pump can be activated with the push of a button, circulating hot oil at an 8-gallon-per-minute rate to expedite the process. The drain valve interlock switch automatically turns off the burners when the oil drains. Its seamless 18-gauge stainless steel filter pan can hold 110 pounds, while the stainless steel mesh filter screen removes particulates from two sides, encompassing a 270-square-inch filter area. To minimize hands-on requirements, it features a hands-free oil-return line connection, and this system includes a tank brush and clean-out rod for simple cleaning.
The Vulcan 2TR65AF commercial gas fryer measures 42 inches wide by 30 13/100 inches deep by 47 1/4 inches tall and creates a 36 1/4-inch working height to promote employee comfort. Each frypot boasts a corresponding cabinet base so users can access the analog controls and the filtration system. The cabinet and fry tanks are made of durable rust- and corrosion-resistant stainless steel to ease cleaning and withstand high-volume use. To simplify repositioning for maintenance or cleaning, this unit is fitted with four 6-inch castersa€”two of which can be locked.

Product Details





Part of the PowerFry3 TR65 series
(2) 70-lb. frypots
SoftStart ignition system outputs 40,000 BTUs per hour while quickly increasing oil temperature
ThreePass mechanism maximizes heat transfer
Idle temperature setting maintains temperatures at 5,083 BTUs per hour
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff mechanism
36 1/4-in. working height
Freestanding configuration
2 batteries
Stainless steel cabinet and frypots
4 fryer baskets (2 per frypot) with plastic-coated handles to minimize heat transfer
Includes tank brushes and clean-out rods for cleaning
1 1/4-in. port ball-type drain valve
(4) 6-in. adjustable casters (2 locking)
Tank brush and clean-out rod included
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 80,000 BTU

Solid-state Analog Knob Controls





Separate solid-state analog knob controls for each fry tank
Operating temperature range: 200-390 degrees F
User-selectable fat-melt modes
Electronic ignition
Located behind the cabinet door

Filtration System Details





Stainless steel mesh filter filters from 2 sides, creating a 270-sq.-in. filter area
1-touch button engages motor and pump
Drain valve interlock switch shuts off burners when drain valve is opened
Seamless 18-ga. stainless steel filter pan accommodates 110 lb. of oil
8-GPM motor and pump
Hands-free oil-return tube

Dimensions & Utilities





42 in. W x 30 13/100 in. D (50 1/4 in. D when doors are opened) x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
140

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
140

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
696.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 140
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 140
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 696.00
