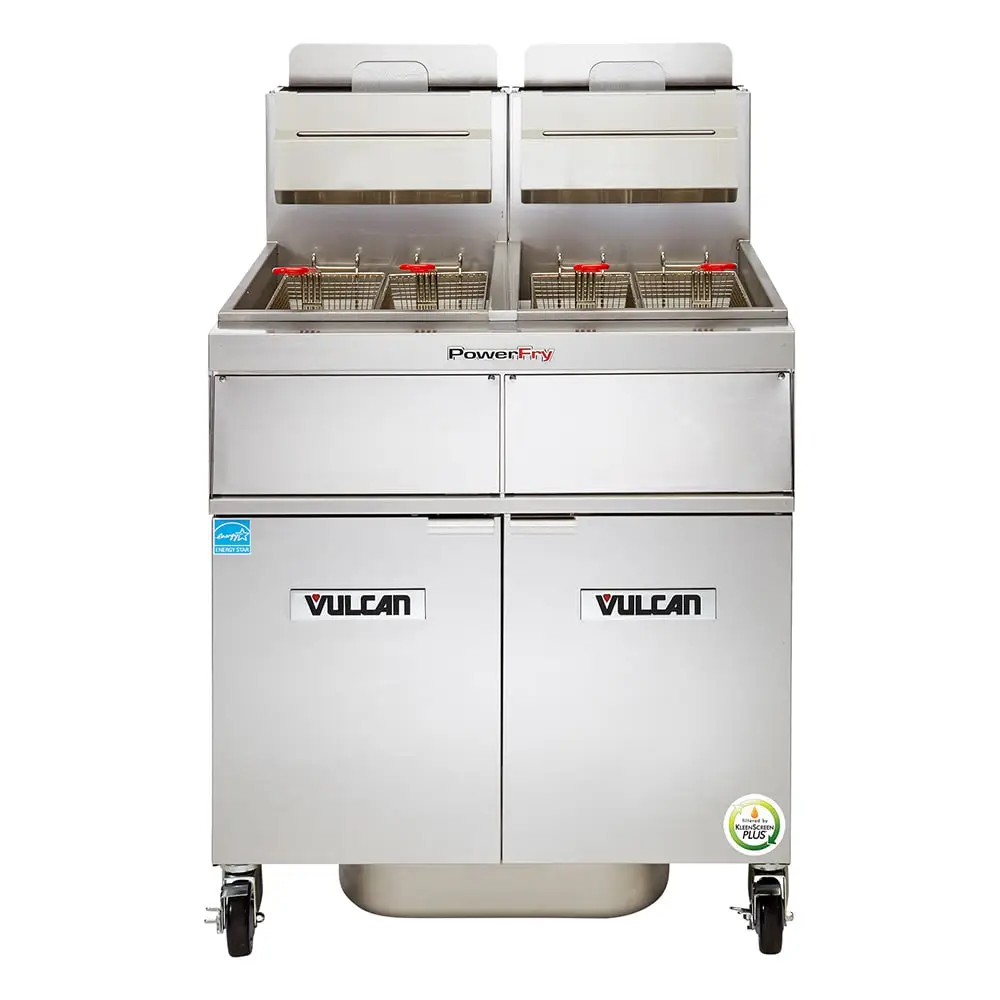

Vulcan 2TR65AF Gas Fryer - (2) 70 Lb Vats, Floor Model, Liquid Propane

The Vulcan 2TR65AF freestanding fryer measures 42 inches wide by 30 1/4 inches deep by 47 1/4 inches high and features two fry tanks, two vats, and a stainless steel base cabinet. These tanks can hold as much as 65 to 70 pounds of frying compound and are constructed of durable stainless steel. It comes with two sets of twin fry baskets, which have plastic-coated handles to protect users' hands from burns. To ease cleaning, the fryer has a 1 1/4-inch full-port, ball-type drain valve, a tank brush, and a clean-out rod; its drain-valve interlock switch should be turned off during draining. Because it's mounted on four 6-inch casters, users can wheel it out of the way as needed, and two casters can be locked to hold it in place. This unit runs on LP gas, which can be turned off using the combination gas and pilot shut-off valve.
To extend the oil's life, this PowerFry3®-series fryer is equipped with a KleenScreen PLUS® filtration system. A stainless steel mesh screen effectively filters out fine particulates from two sides, while a motor and pump circulate oil at 8 gallons per minute. This motor and pump can be engaged using the one-touch push button. Debris and particulates are collected in the stainless steel filter pan, which holds 110 pounds of waste.
Because the Vulcan 2TR65AF fryer has a ThreePass® heat transfer system, heat is circulated thoroughly and evenly, yielding 60.9 percent thermal and 72 percent cooking efficiency. At startup, the oil is heated through a SoftStart® ignition system, which warms the compound gradually to reduce concentrated hot spots. Users can adjust the temperature between 200 and 390 degrees Fahrenheit using the analog control knob. So oil temperatures don't exceed the maximum threshold, this unit is equipped with a high-limit shut off. During break periods, the unit goes into stasis with the idle temperature setting, which saves energy, and to accommodate solid compounds and shortening, this unit offers multiple melt modes.

Product Details





Featured in the PowerFry3 series
65-70-lb. individual fry tank capacity
2 vats
2 stainless steel fry tanks and base cabinet
2 sets of twin baskets with plastic-coated basket handles
Analog temperature control knob
Temperature range: 200-390 degrees F
Melt modes for solid compounds
Idle temperature setting
High-limit shut-off system
Combination gas and pilot shut-off valve
SoftStart ignition system
ThreePass heat transfer system yields 60.9% thermal and 72% cooking efficiency
1 1/4-in. full-port, ball-type drain valve
(4) 6-in. casters (2 with locks)
Tank brush and clean-out rod simplify cleaning
160,000 BTU per hour

Filtration System





110-lb. filter pan capacity
Stainless steel filter pan
Drain valve interlock switch enhances safety
Stainless steel mesh filter screen filters from 2 sides
1/3-HP motor and pump circulates oil at 8 GPM
Pump and motor engaged by one-touch push button

Dimensions and Utilities





Overall: 42 in. W x 30 1/4 in. D x 47 1/4 in. H
Powered by LP gas
6.0 A
115 V/60 Hz/1 ph with cord and NEMA 5-15P plug
1 1/4-in. rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
140

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
140

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
696.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 140
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 140
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 696.00
