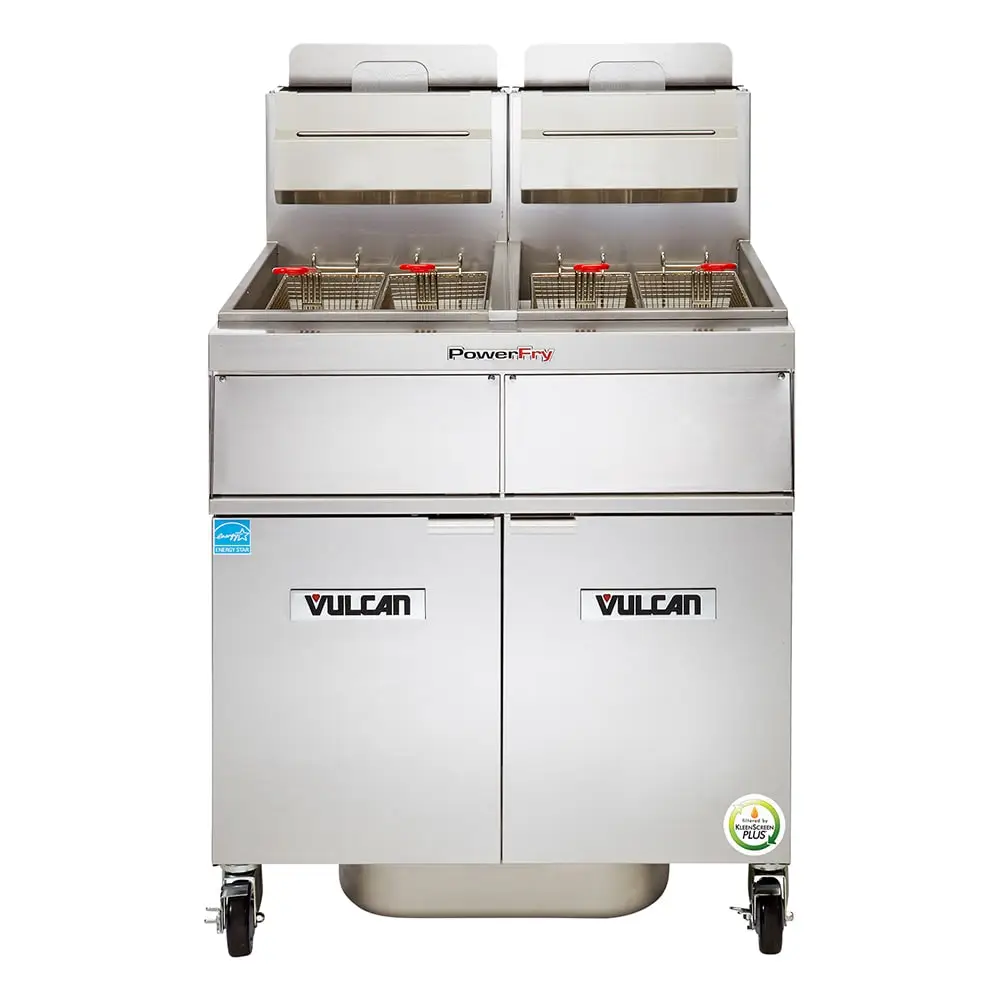

Vulcan 2TR65DF Gas Fryer - (2) 70 Lb Vats, Floor Model, Natural Gas

So operators can fry foods with different cooking requirements simultaneously, the Vulcan 2TR65DF commercial gas fryer is built with two 70-pound-capacity vats featuring independent solid-state digital cooking controls. Each frypot's temperature can be set from 200 to 390 degrees Fahrenheit; a digital display provides a readout of temperatures in Fahrenheit or Celsius. To properly cook solid shortening, it provides three melt modes, and two countdown timers can be set to ensure precise cooking. Each frypot can output 80,000 BTUs per hour, and to enhance energy efficiency, it features a SoftStart® ignition system that quickly heats oil at 40,000 BTUs per hour. While the ThreePass® heat transfer system evenly distributes heat throughout the oil, the idle temperature setting outputs just 5,083 BTUs per hour to conserve energy while maintaining set temperatures.
The built-in KleenScreen PLUS® filtration system encourages frequent filtration because its motor and pump can be activated with the push of a button. Its drain interlock switch automatically turns off the gas burners when oil is drained, and the stainless steel mesh filter screen filters from two sides to establish a 270-square-inch filtration area. To expedite filtration, the motor and pump circulate oil at an 8-gallon-per-minute rate. As much as 110 pounds of oil can be expelled into the filter pan, which can be removed and emptied for simple cleaning. A hands-free oil-return line connection guides filtered oil back to the unit, eliminating manual tasks.
To conserve space in compact kitchens, the Vulcan 2TR65DF efficient freestanding fryer measures 42 inches wide by 30 13/100 inches deep by 47 1/4 inches tall and provides a 36 1/4-inch working height. Both frypots include twin fryer baskets to streamline submerging breaded foods into the tanks and lifting them from the oil, and because these baskets are built with plastic-coated handles, they minimize heat transfer for user safety. To endure high-volume back-of-house use, the cabinet and frypots are made of durable, rust- and corrosion-resistant stainless steel. It's fitted with four 6-inch casters that provide smooth mobility, and two of the casters can be locked to keep the unit in place during operation.

Product Details





Featured in the PowerFry3 TR65 collection
(2) 70-lb. fry tanks
2-battery, freestanding floor model
Establishes 36 1/4-in. working height
Commercial-grade stainless steel cabinet and frypots
4 fryer baskets with plastic-coated handles (2 per frypot)
(4) 6-in. adjustable casters (2 locking)
ThreePass heat transfer system establishes 60 percent cooking efficiency and 72 percent thermal efficiency
SoftStart ignition mechanism protects against burning oil upon startup
Energy-saving idle temperature setting outputs 5,083 BTUs per hour
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff mechanism
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 80,000 BTU

Solid-state Digital Controls





Electronic matchless ignition
Digital character display in Fahrenheit or Celsius
Operating temperature range: 200-390 degrees F
3 melt modes
2 countdown timers
Automatic boil-out mode
Can cook with compensating time or actual time

Filtration System Details





Push button activates motor and pump
Stainless steel mesh filter can filter from 2 sides to create a 270-sq.-in. filter area
Drain valve interlock switch
Seamless 18-ga. stainless steel filter pan can hold 110 lb. of oil
8-GPM motor and pump
Hands-free oil-return tube
Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities





42 in. W x 30 13/100 in. D (50 1/4 in. D when doors are opened) x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
140

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
140

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
696.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 140
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 140
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 696.00
