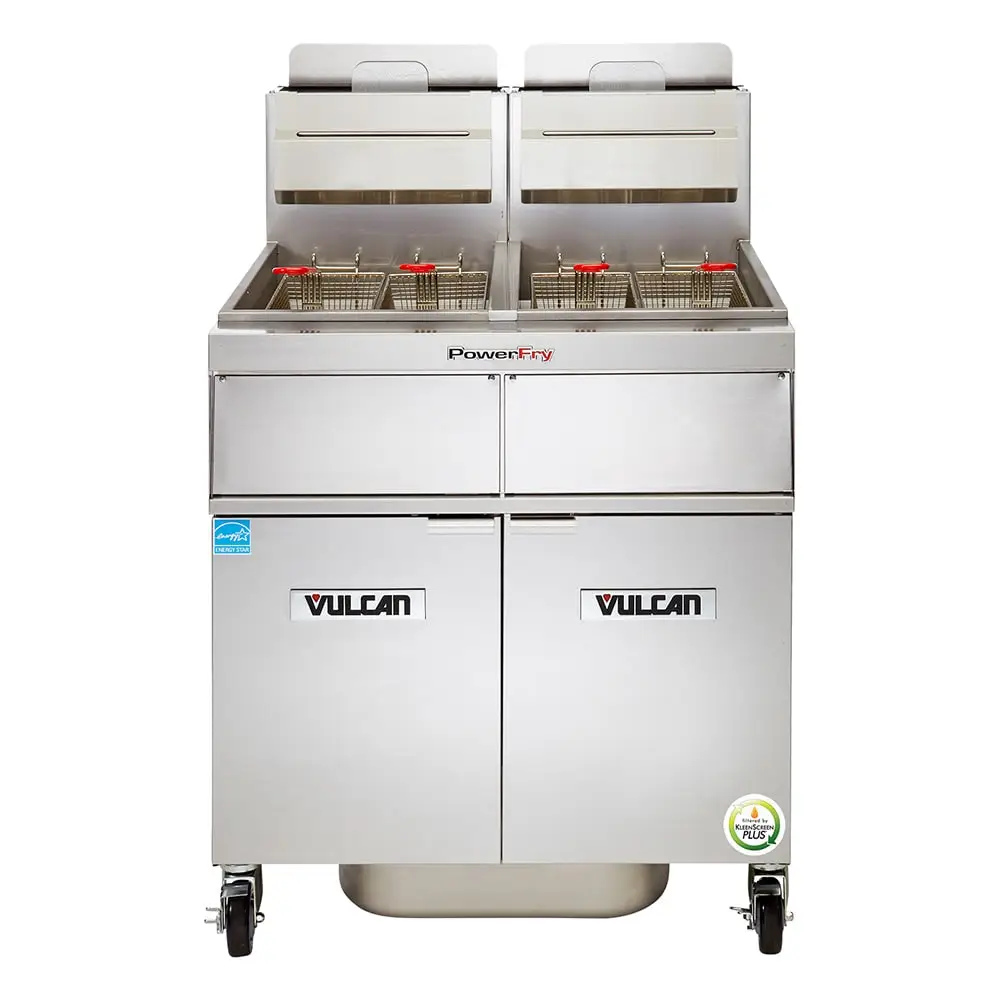

Vulcan 2TR65CF Gas Fryer - (2) 70 Lb Vats, Floor Model, Natural Gas

Designed to enhance energy efficiency, the Vulcan 2TR65CF commercial gas fryer is part of the PowerFry3® series, meaning it comes with a ThreePass® heat transfer system to evenly distribute heat throughout the two frypots' oil, resulting in high cooking and thermal efficiency. To save energy while expediting the oil-warming process, the SoftStart® ignition system outputs 40,000 BTUs per hour. Once the set oil temperature is reached, the idle temperature setting maintains the established heat by only outputting 5,083 BTUs per hour. Operators can set the unit's temperature from 200 to 390 degrees Fahrenheit, select from three fat-melt modes, and set 10 menu timers using the computer controls. Each of the 70-pound-capacity frypots have corresponding controls so different products can be simultaneously cooked at different temperatures.
To promote frequent filtering, this floor model is built with the KleenScreen PLUS® filtration system. Its pump and motor can be engaged with the push of a button, and when oil drains, the drain valve interlock switch turns off the burners. By circulating oil at an 8-galllon-per-minute rate, the pump and motor hasten the filtration process. The stainless steel mesh filter screen filters from two sides, creating a 270-square-inch filter area. As much as 110 pounds of oil can be drained into the seamless 18-gauge stainless steel filter pan, which is simple to remove when it needs to be emptied and cleaned. To further ease cleaning, this system includes a hands-free oil-return tube, a clean-out rod, and a tank brush.
The Vulcan 2TR65AF high-efficiency gas fryer measures 42 inches wide by 30 13/100 inches deep by 47 1/4 inches tall and is made of rust- and corrosion-resistant stainless steel for long-term durability through back-of-house use. Because it's mounted on four 6-inch casters, transport or maintenance is smooth; two of these casters have brakes to stabilize the unit during frying. Staff can use the four included fryer baskets, which feature plastic handles for user safety, to submerge chicken fingers, mozzarella sticks, dumplings, and other breaded foods into the vats.

Product Details





Part of Vulcan's PowerFry3 TR65 collection
(2) 70-lb. frypots
2-battery freestanding floor model
36 1/4-in. working height
Stainless steel cabinet and frypots resist rust and corrosion
4 fryer baskets with plastic-coated handles (2 per frypot)
(4) 6-in. adjustable casters (2 locking)
ThreePass mechanism evenly distributes heat to yield 72 percent thermal efficiency and 60 percent cooking efficiency
SoftStart ignition mechanism warms oil while only outputs 40,000 BTUs per hour
Idle temperature setting only outputs 5,083 BTUs per hour to save energy
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
1 1/4-in. port ball-type drain valve
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
(2) 80,000 BTU

Computer Controls





Separate controls for each frypot
Electronic ignition
Digital display in Fahrenheit or Celsius
Operating temperature range: 200-390 degrees F
10 menu timers display product name and cook time
Items can be programmed offline with USB interface (software included)
Can cook with compensating time or actual time
3 melt modes

Filtration System Details





Motor and pump are push-button activated
Stainless steel mesh filter removes debris from 2 sides and creates 270-sq.-in. filter area
Drain valve interlock switch shuts off burners when drain valve is opened
Seamless 18-ga. stainless steel filter pan accommodates 110 lb. of oil
8-GPM motor and pump
Hands-free oil-return tube
Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities





42 in. W x 30 13/100 in. D (50 1/4 in. D when doors are opened) x 47 1/4 in. H
6 A, 1/3 HP
115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Powered by natural gas
1 1/4-in. NPT common rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
140

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
2

Oil Capacity (lb)
140

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
42

Weight
696.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 140
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 2
Oil Capacity (lb): 140
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 696.00
